Symptom: PASSENGER SQUIB 1 CIRCUIT SHORT: Testing

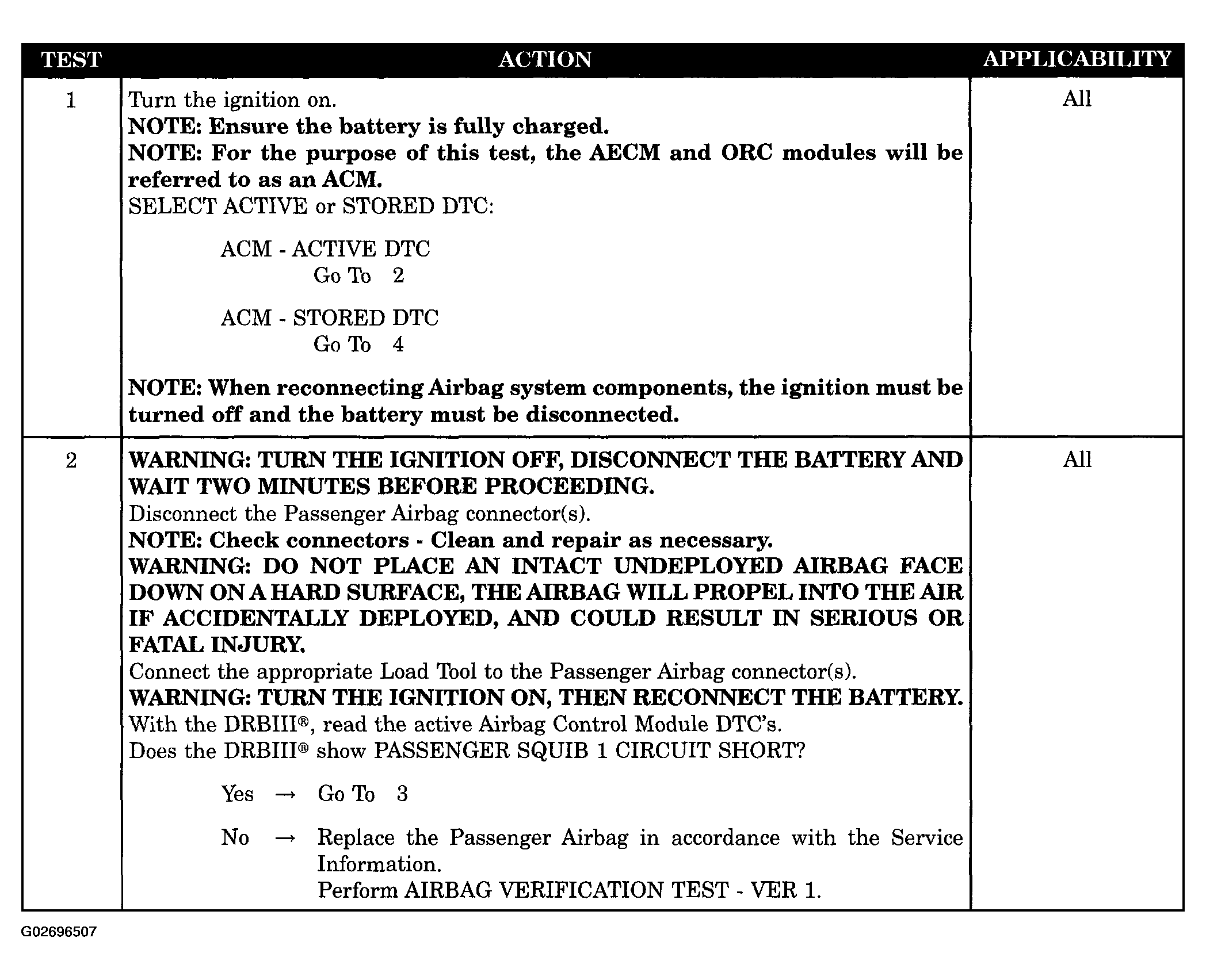

Fig 1: Testing Passenger Squib 1 Circuit Short (1 Of 2)
G02696507Courtesy of DAIMLERCHRYSLER CORP.

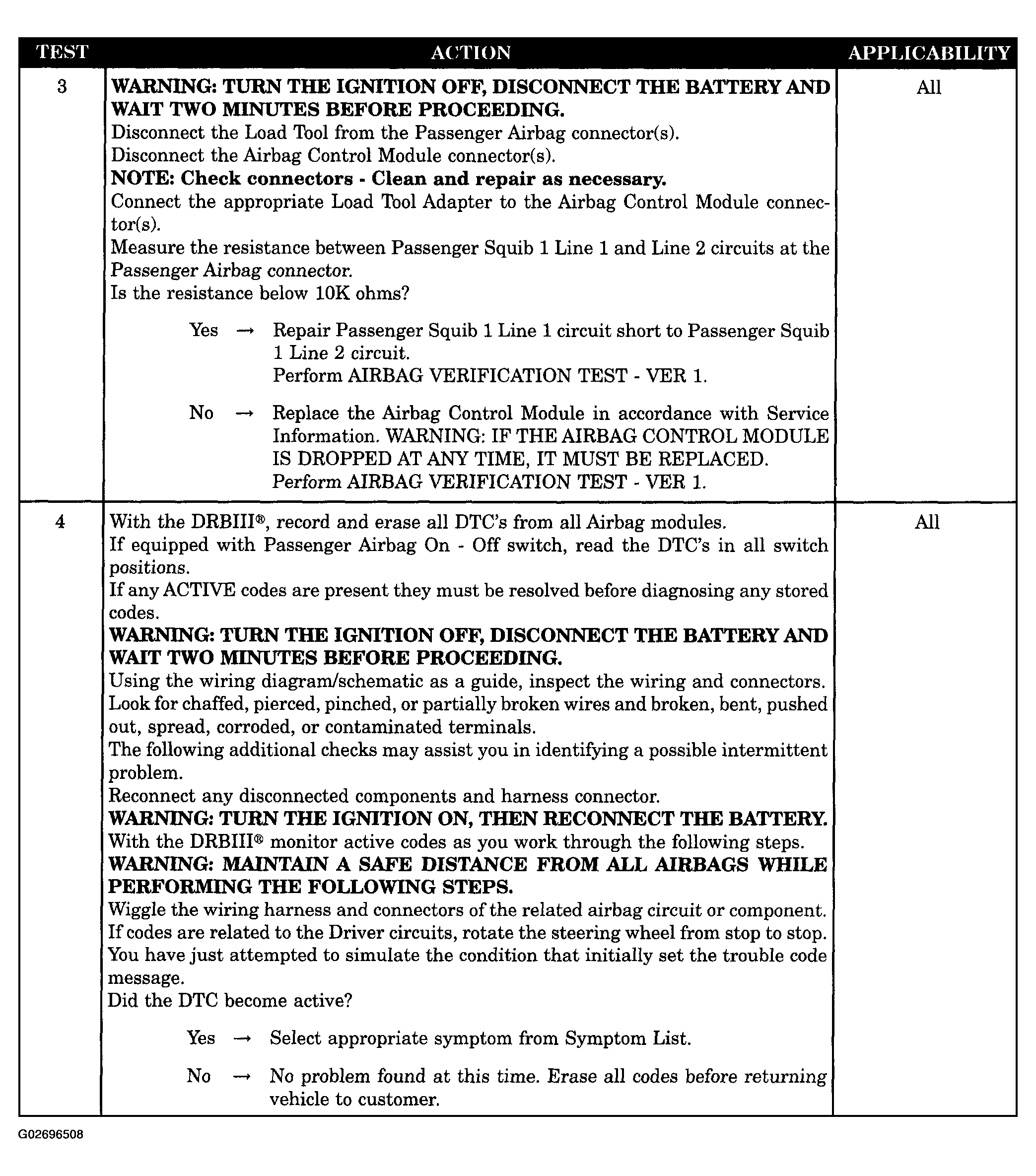

Fig 2: Testing Passenger Squib 1 Circuit Short (2 Of 2)
G02696508Courtesy of DAIMLERCHRYSLER CORP.
