Symptom: PASSENGER CURTAIN OR SEAT SQUIB CIRCUIT OPEN: Testing

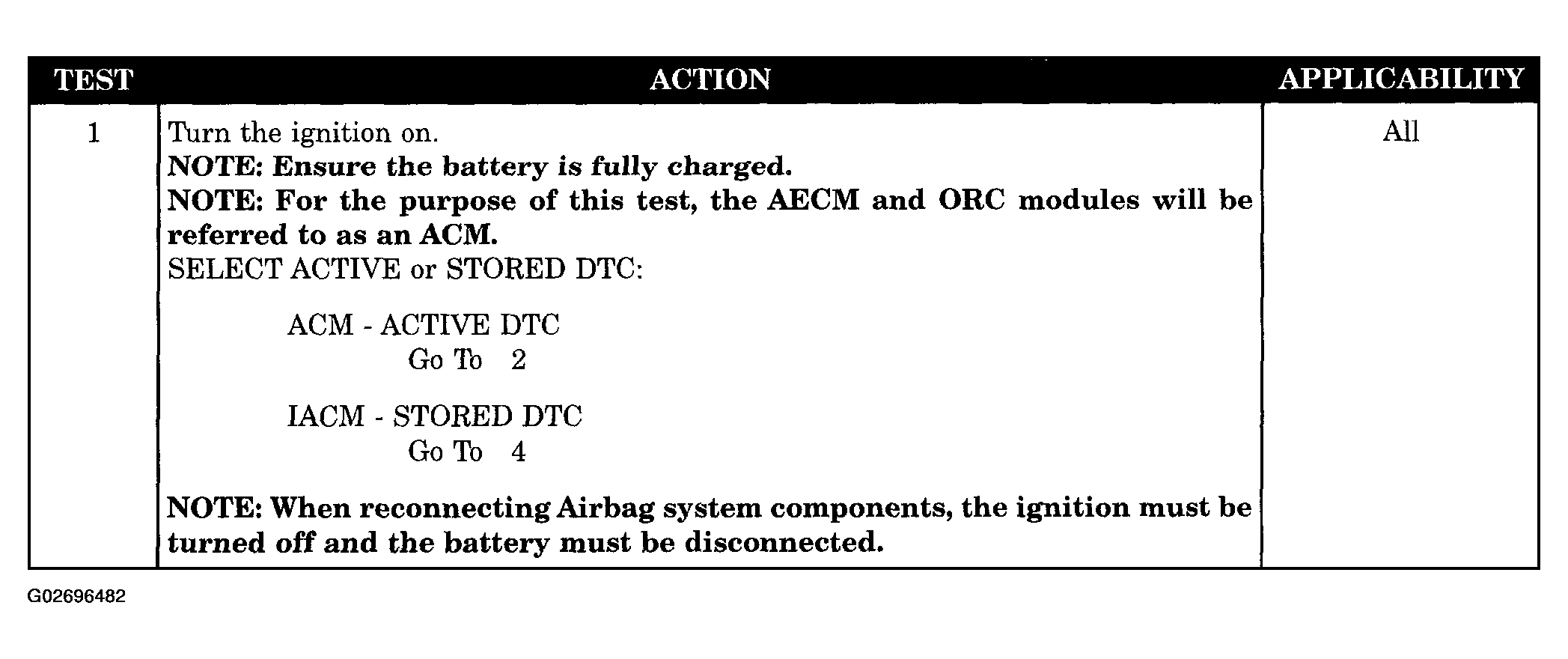

Fig 1: Testing Passenger Curtain Or Seat Squib Circuit Open (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

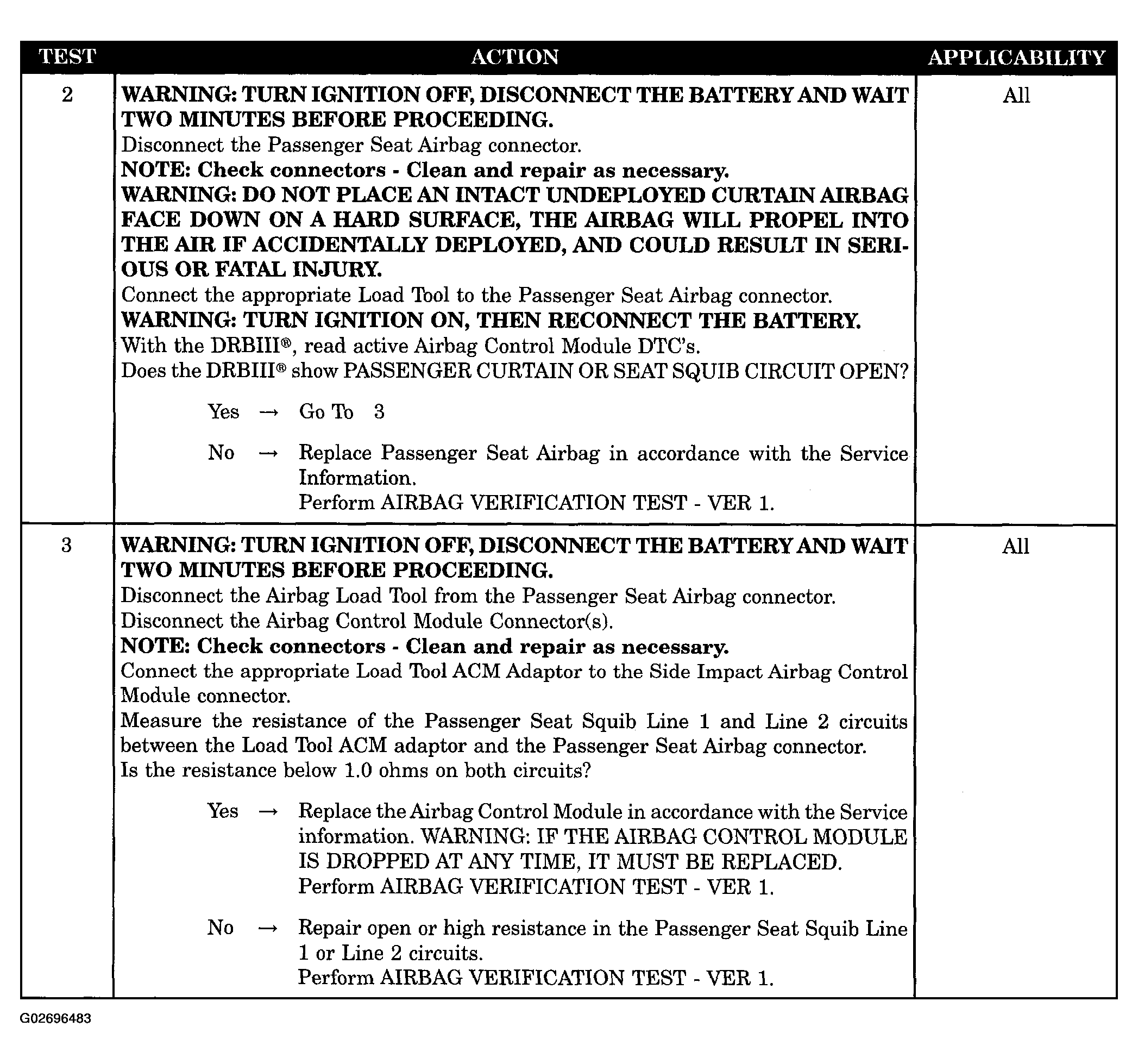

Fig 2: Testing Passenger Curtain Or Seat Squib Circuit Open (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

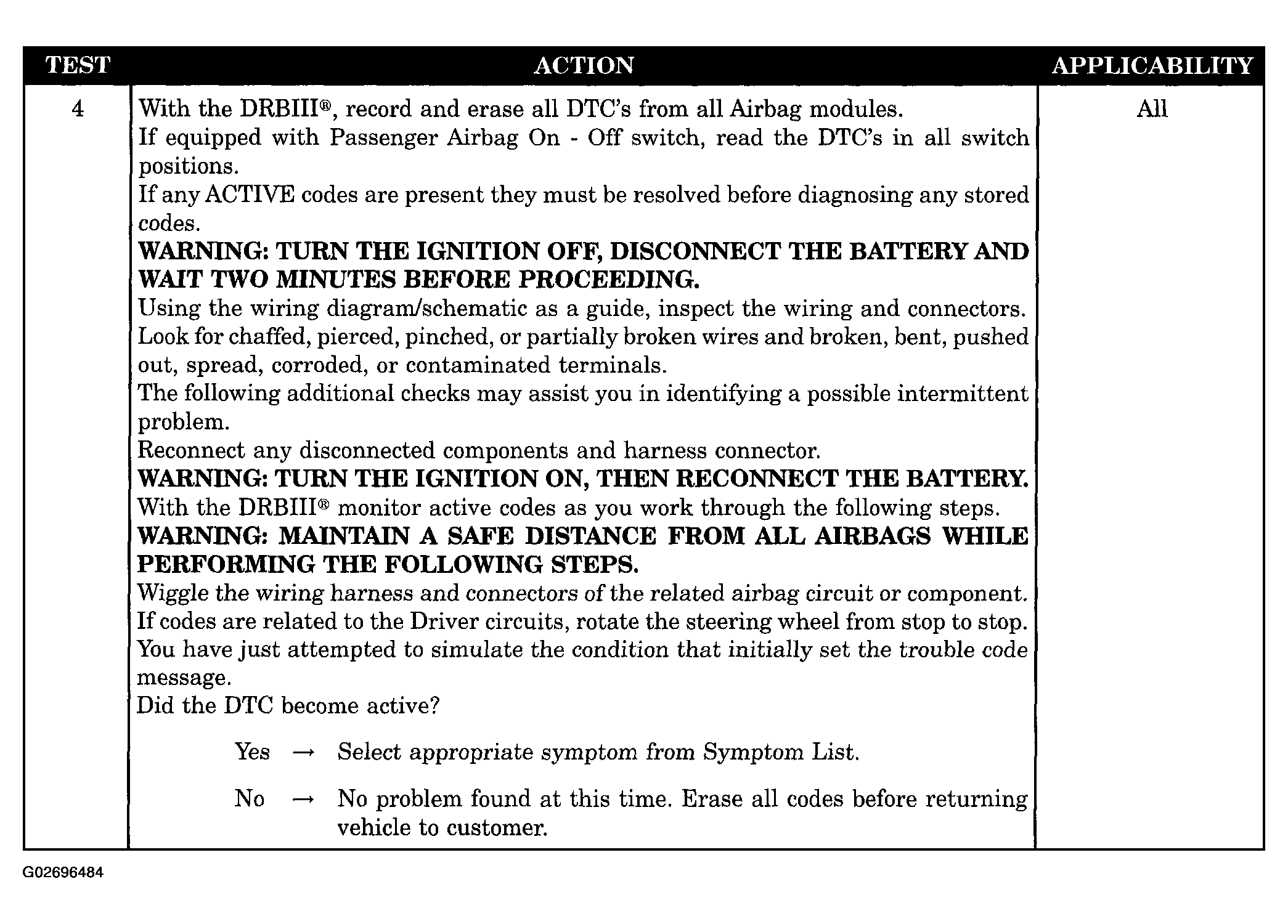

Fig 3: Testing Passenger Curtain Or Seat Squib Circuit Open (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
