Symptom: DRIVER SEAT BELT TENSIONER SHORT TO GROUND: Testing

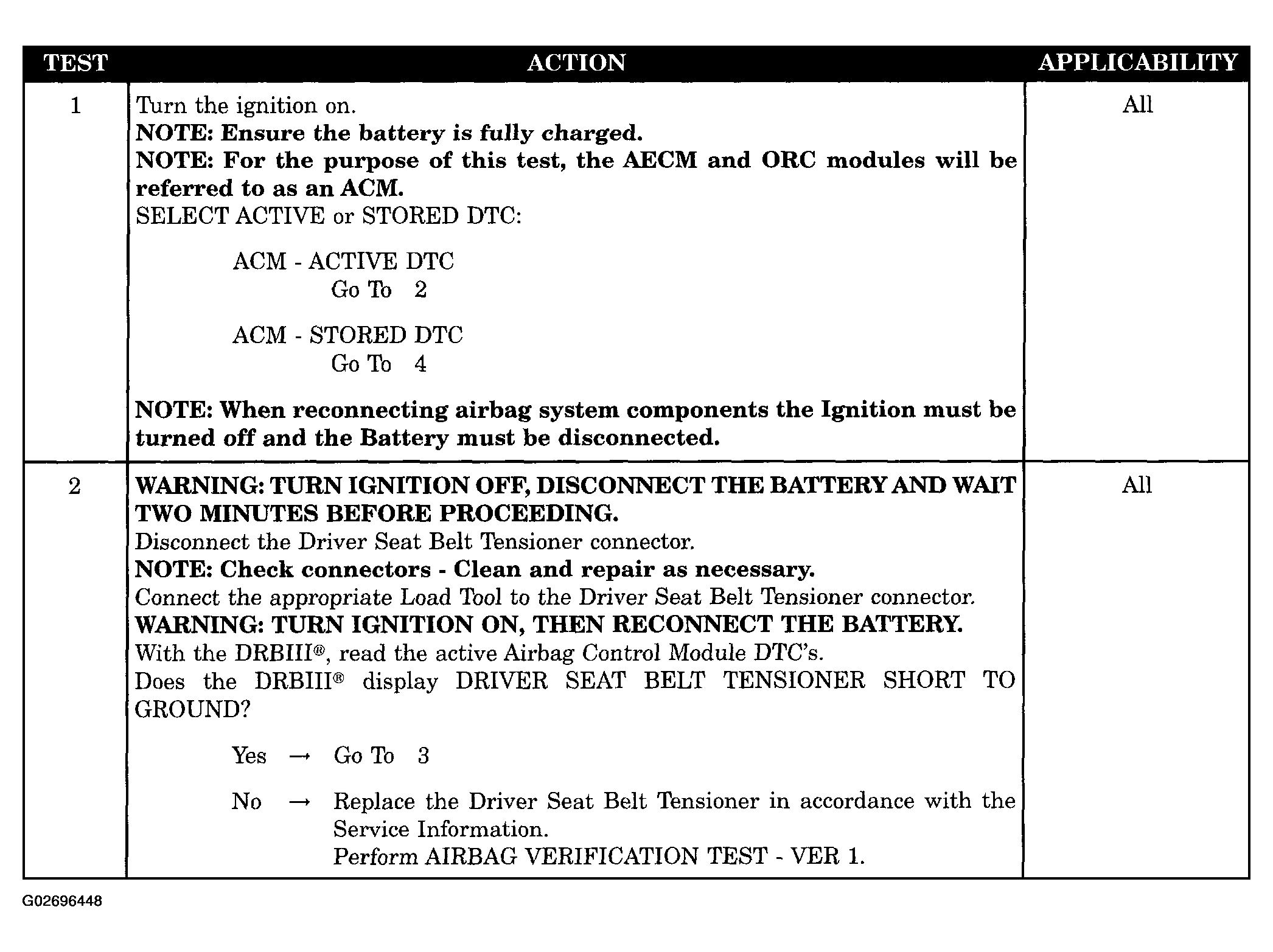

Fig 1: Testing Driver Seat Belt Tensioner Short To Ground (1 Of 2)
G02696448Courtesy of DAIMLERCHRYSLER CORP.

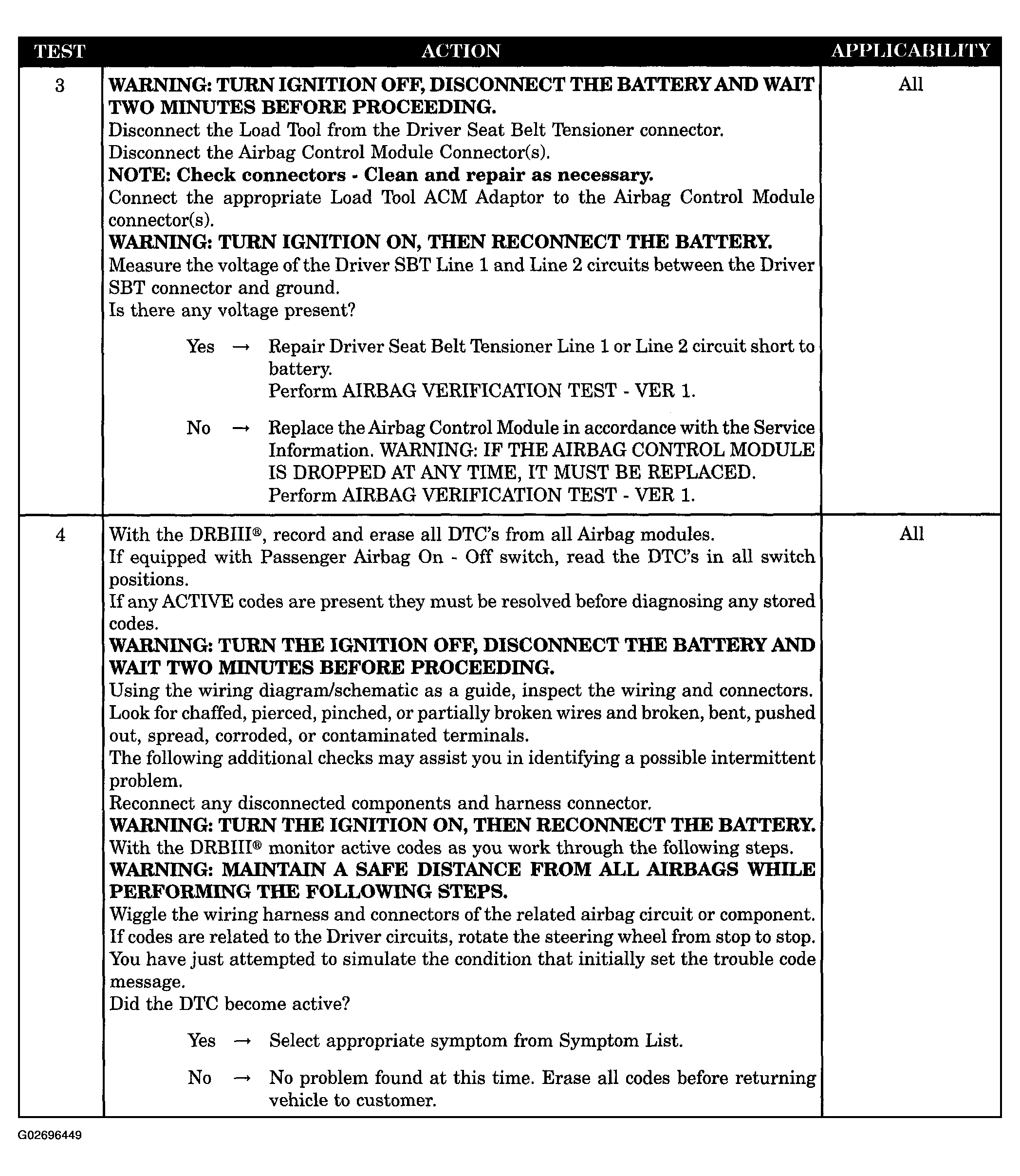

Fig 2: Testing Driver Seat Belt Tensioner Short To Ground (2 Of 2)
G02696449Courtesy of DAIMLERCHRYSLER CORP.
