Symptom: DRIVER SEAT BELT TENSIONER CIRCUIT SHORT: Testing

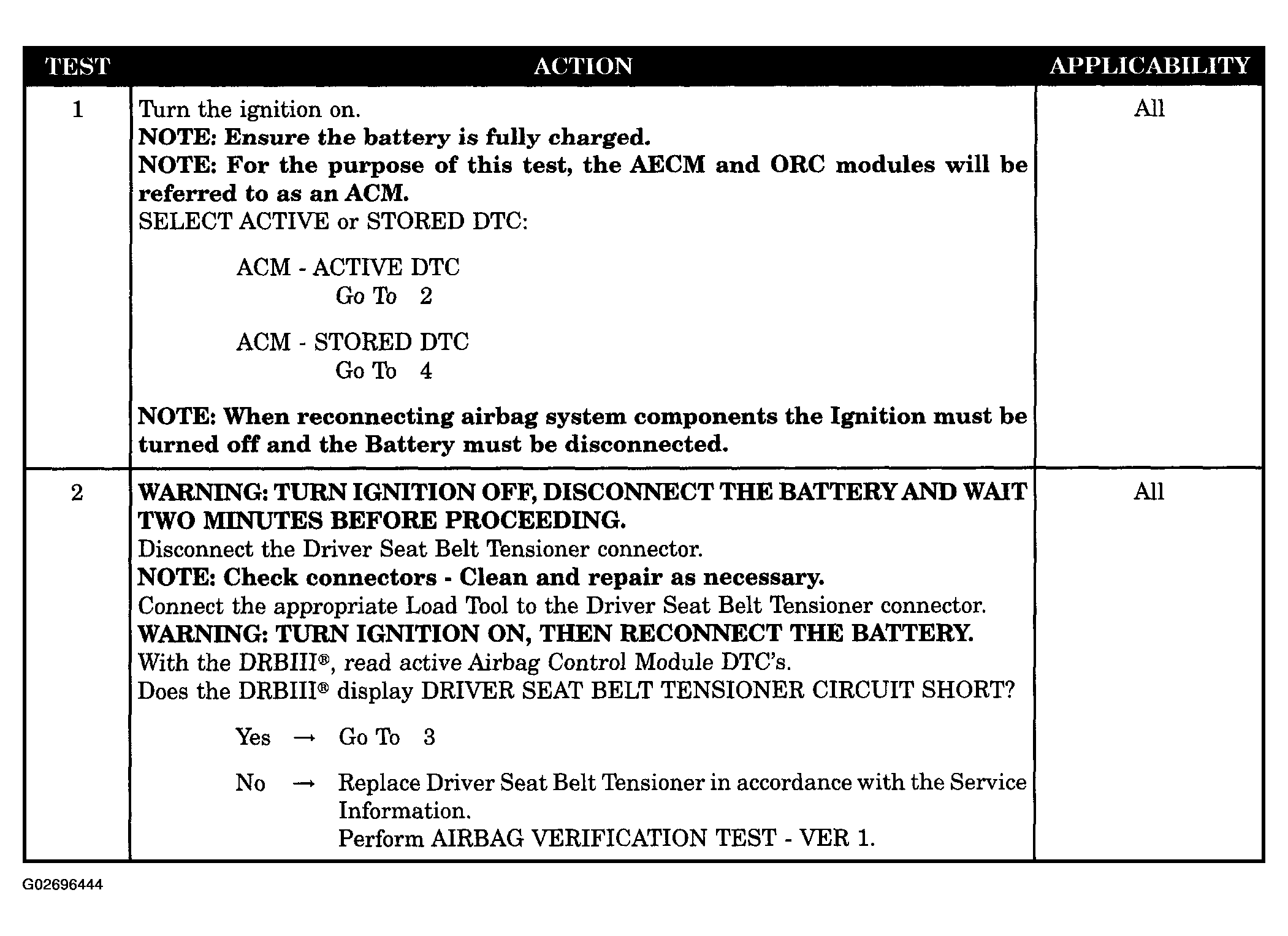

Fig 1: Testing Driver Seat Belt Tensioner Circuit Short (1 Of 2)
G02696444Courtesy of DAIMLERCHRYSLER CORP.

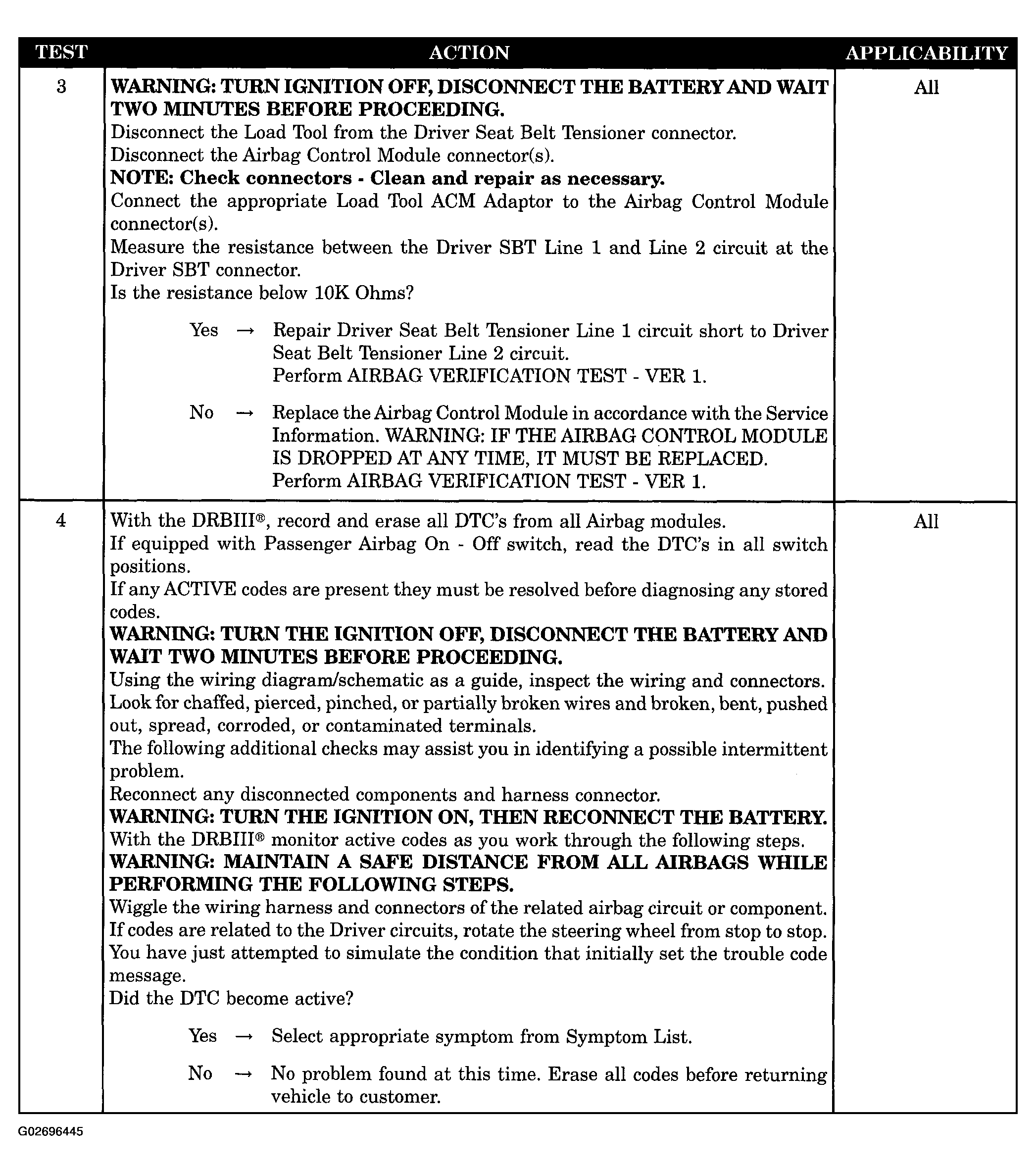

Fig 2: Testing Driver Seat Belt Tensioner Circuit Short (2 Of 2)
G02696445Courtesy of DAIMLERCHRYSLER CORP.
