Symptom: DRIVER SEAT BELT TENSIONER CIRCUIT OPEN: Testing

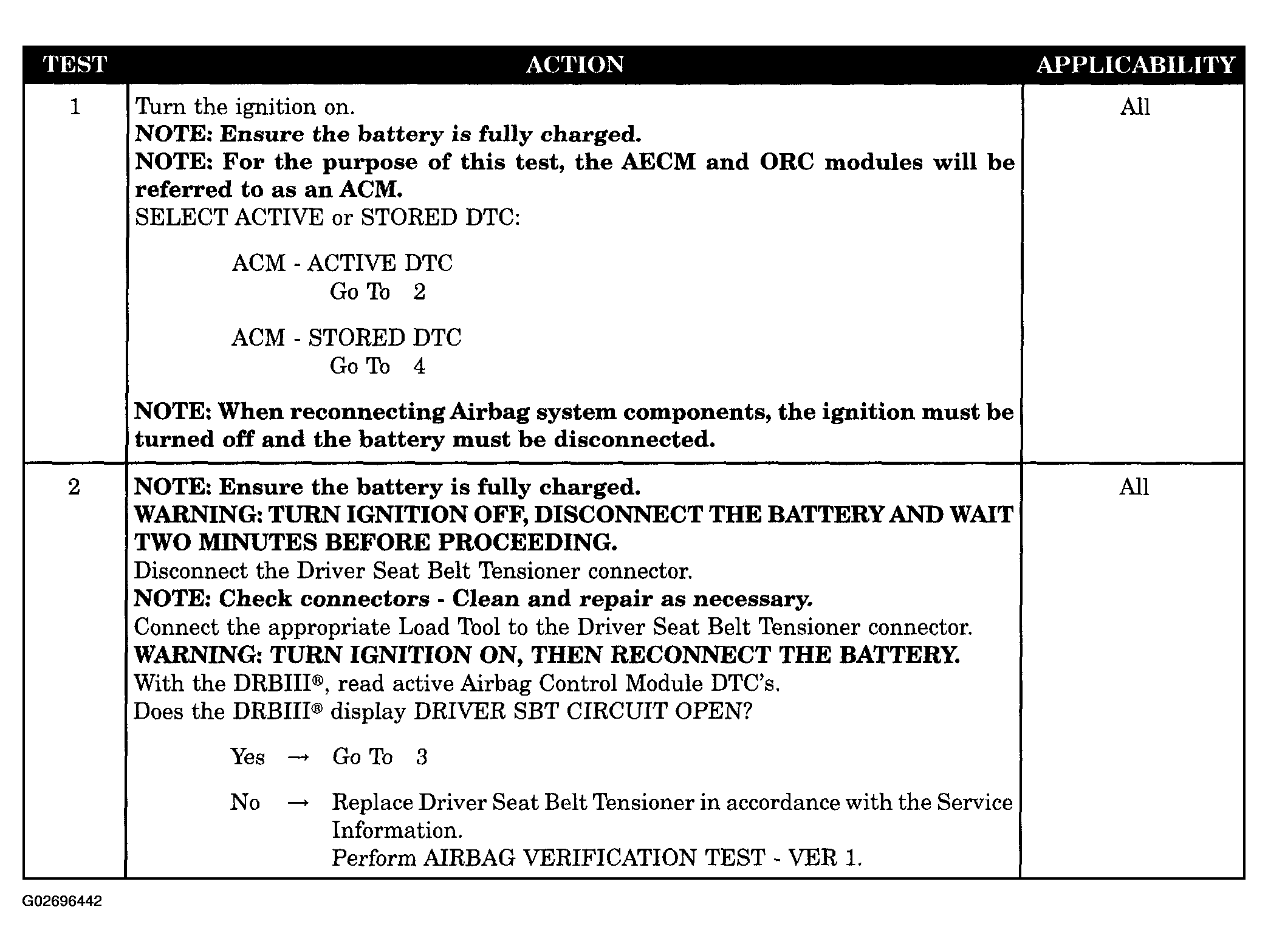

Fig 1: Testing Driver Seat Belt Tensioner Circuit Open (1 Of 2)
G02696442Courtesy of DAIMLERCHRYSLER CORP.

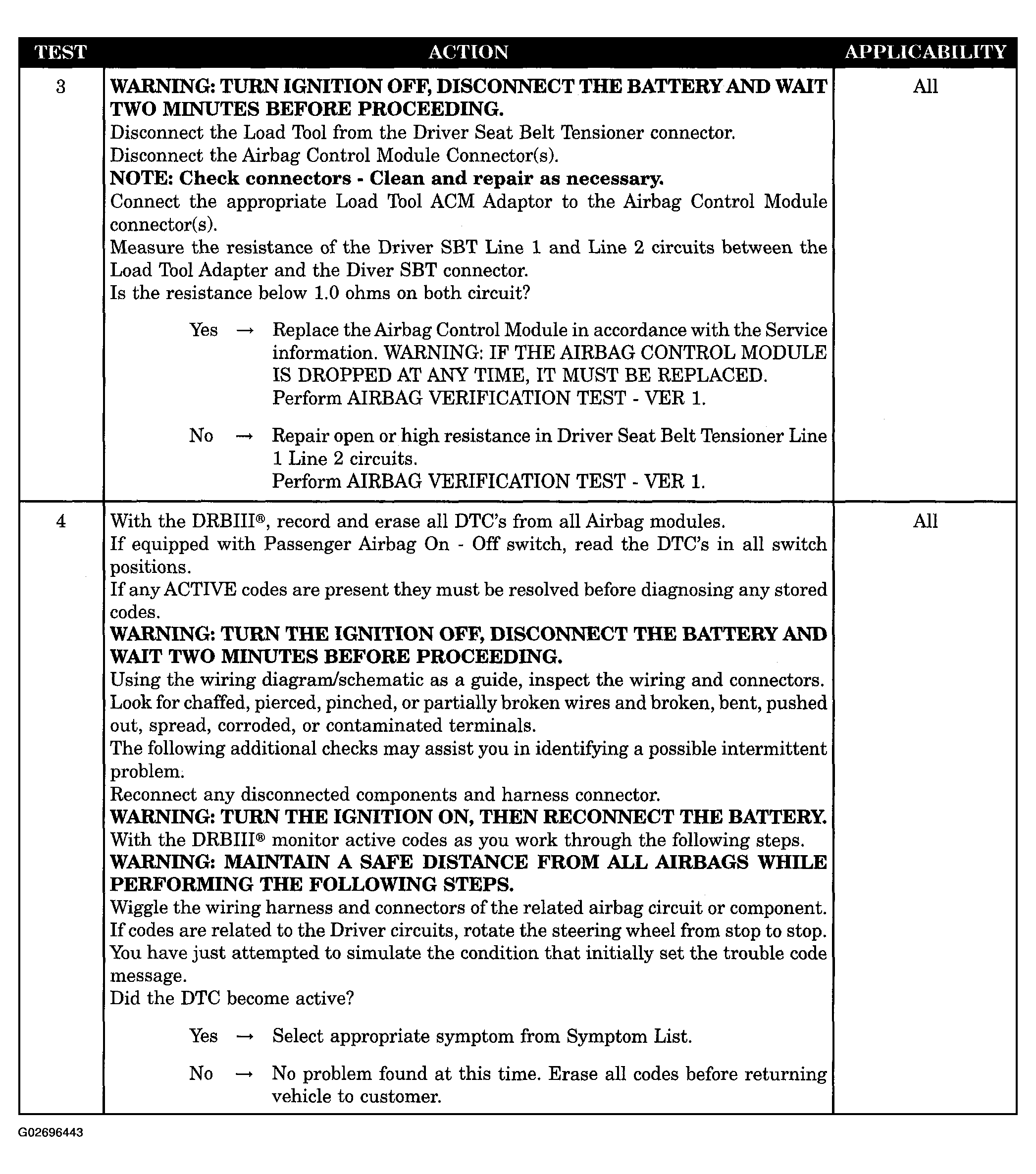

Fig 2: Testing Driver Seat Belt Tensioner Circuit Open (2 Of 2)
G02696443Courtesy of DAIMLERCHRYSLER CORP.
