Symptom: PASSENGER SEAT BELT TENSIONER SHORT TO GROUND: Testing

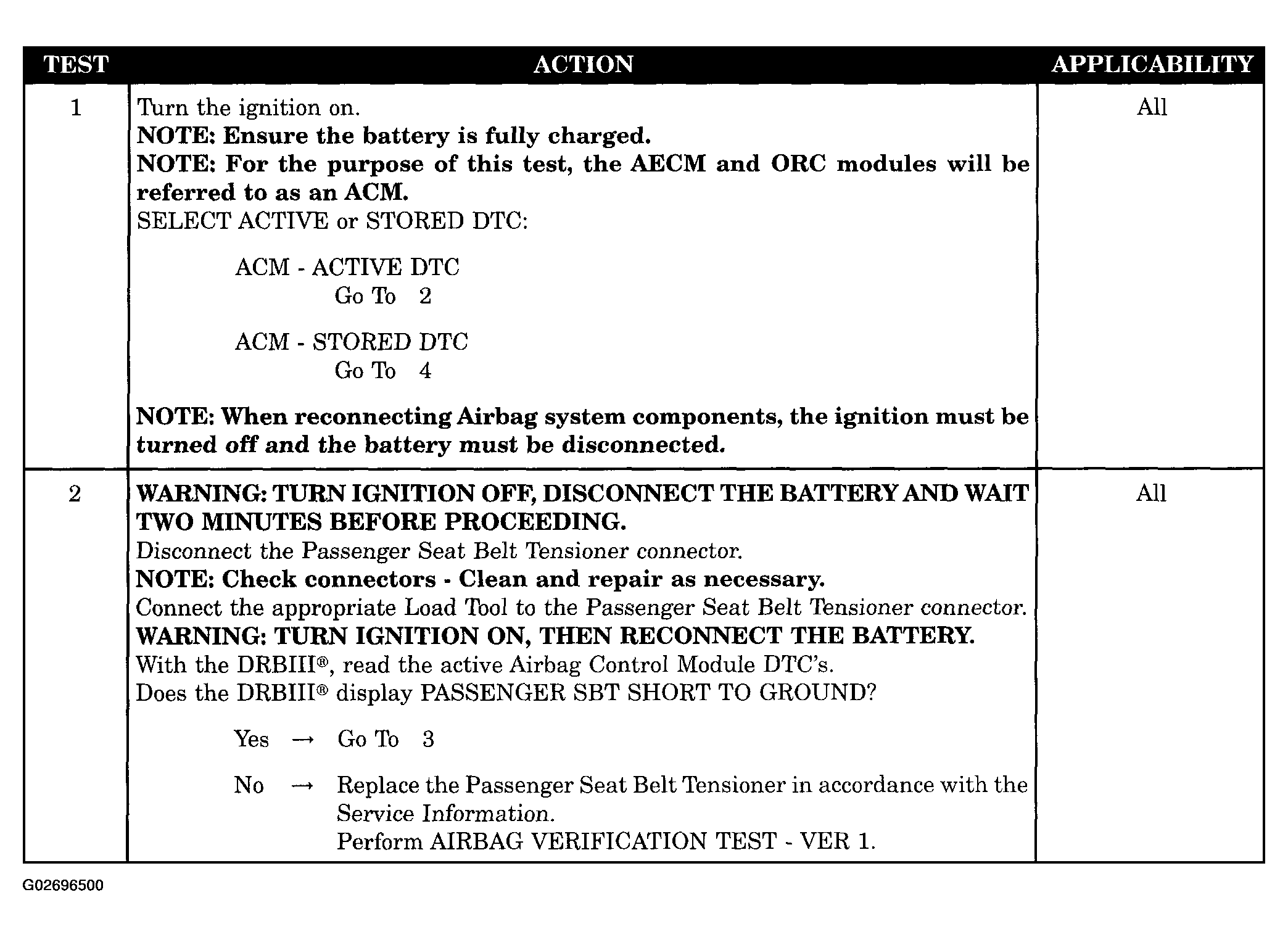

Fig 1: Testing Passenger Seat Belt Tensioner Short To Ground (1 Of 2)
G02696500Courtesy of DAIMLERCHRYSLER CORP.

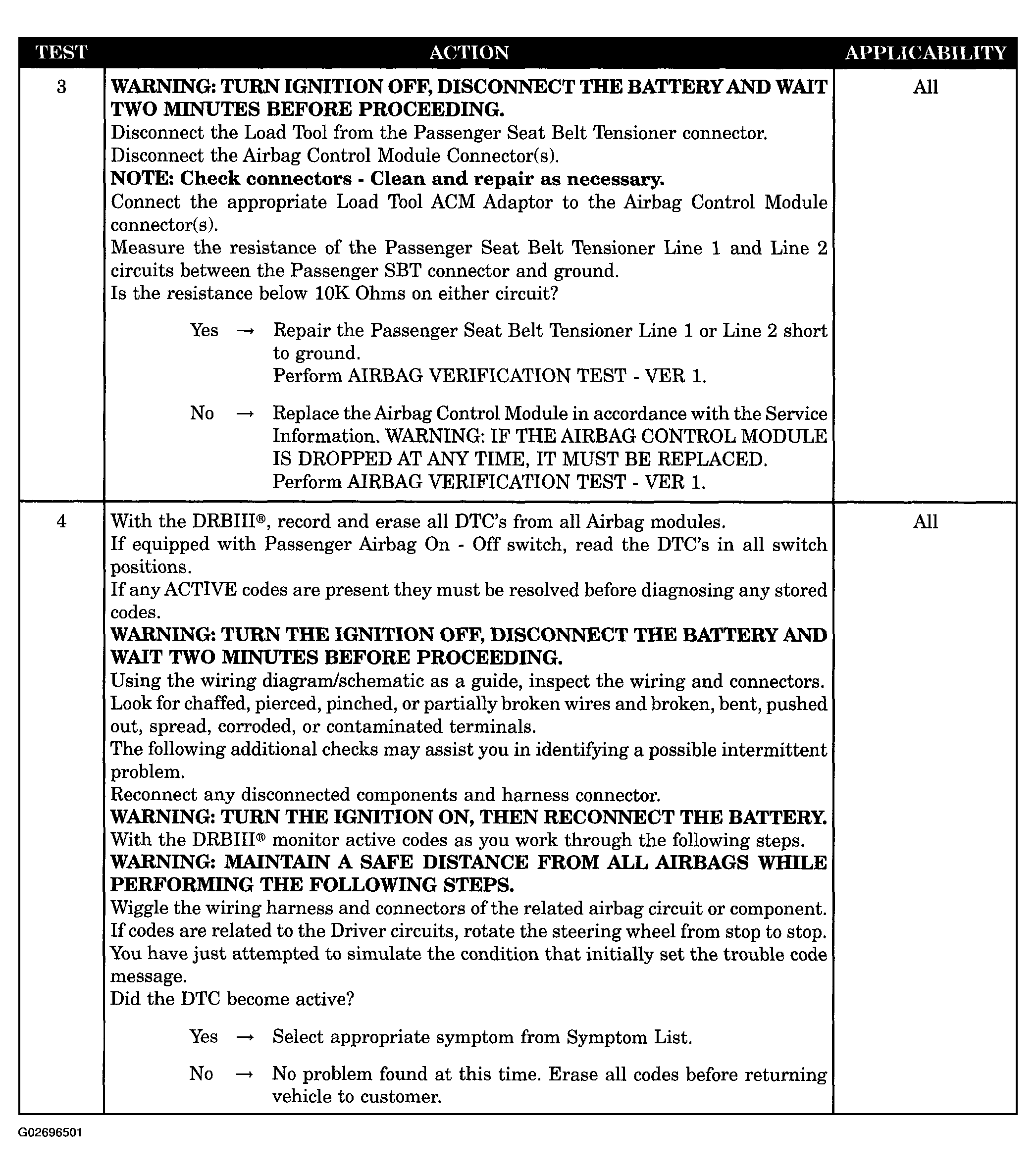

Fig 2: Testing Passenger Seat Belt Tensioner Short To Ground (2 Of 2)
G02696501Courtesy of DAIMLERCHRYSLER CORP.
