Symptom: PASSENGER SEAT BELT TENSIONER SHORT TO BATTERY: Testing

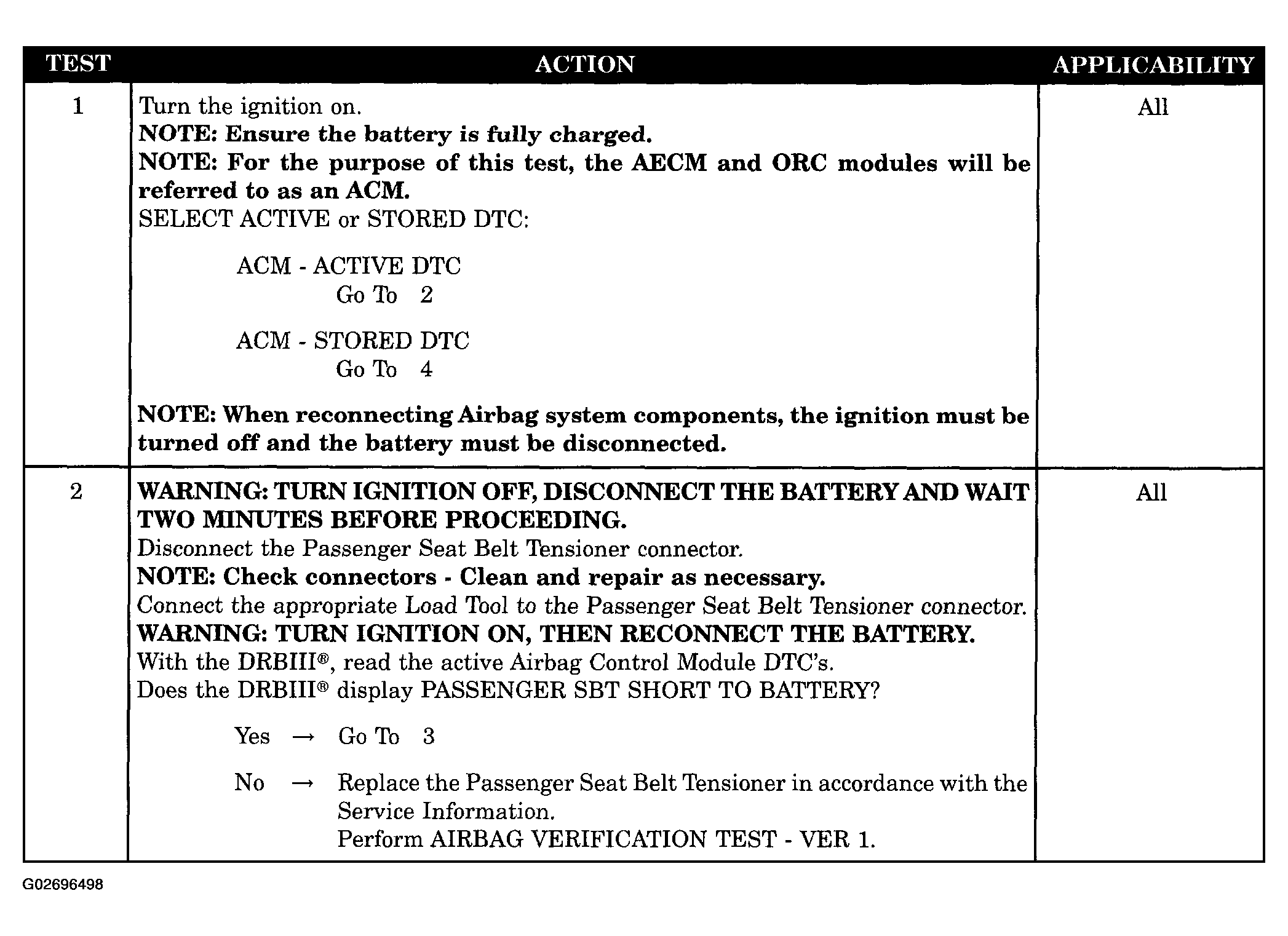

Fig 1: Testing Passenger Seat Belt Tensioner Short To Battery (1 Of 2)
G02696498Courtesy of DAIMLERCHRYSLER CORP.

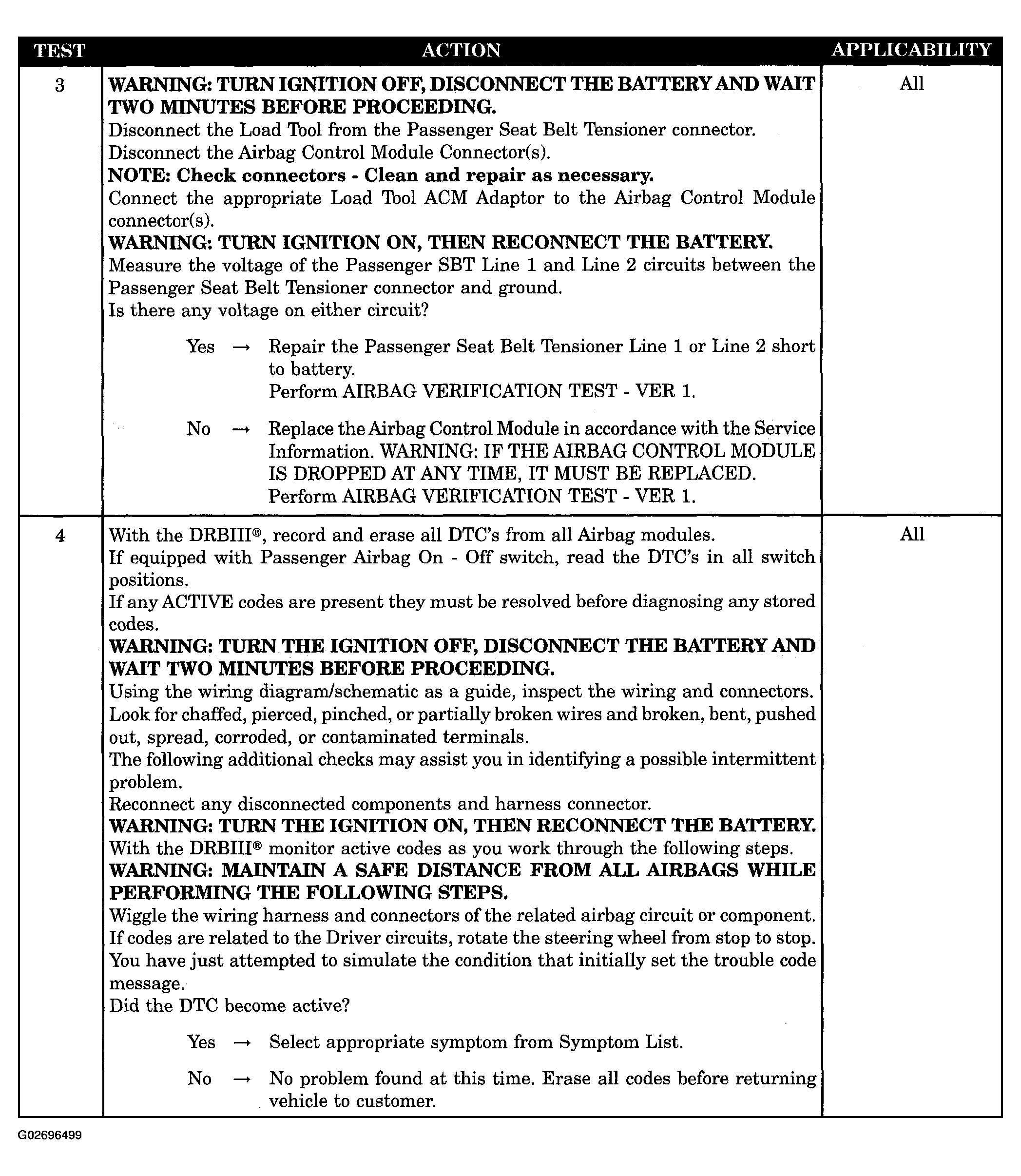

Fig 2: Testing Passenger Seat Belt Tensioner Short To Battery (2 Of 2)
G02696499Courtesy of DAIMLERCHRYSLER CORP.
