Symptom: PASSENGER SEAT BELT TENSIONER CIRCUIT SHORT: Testing

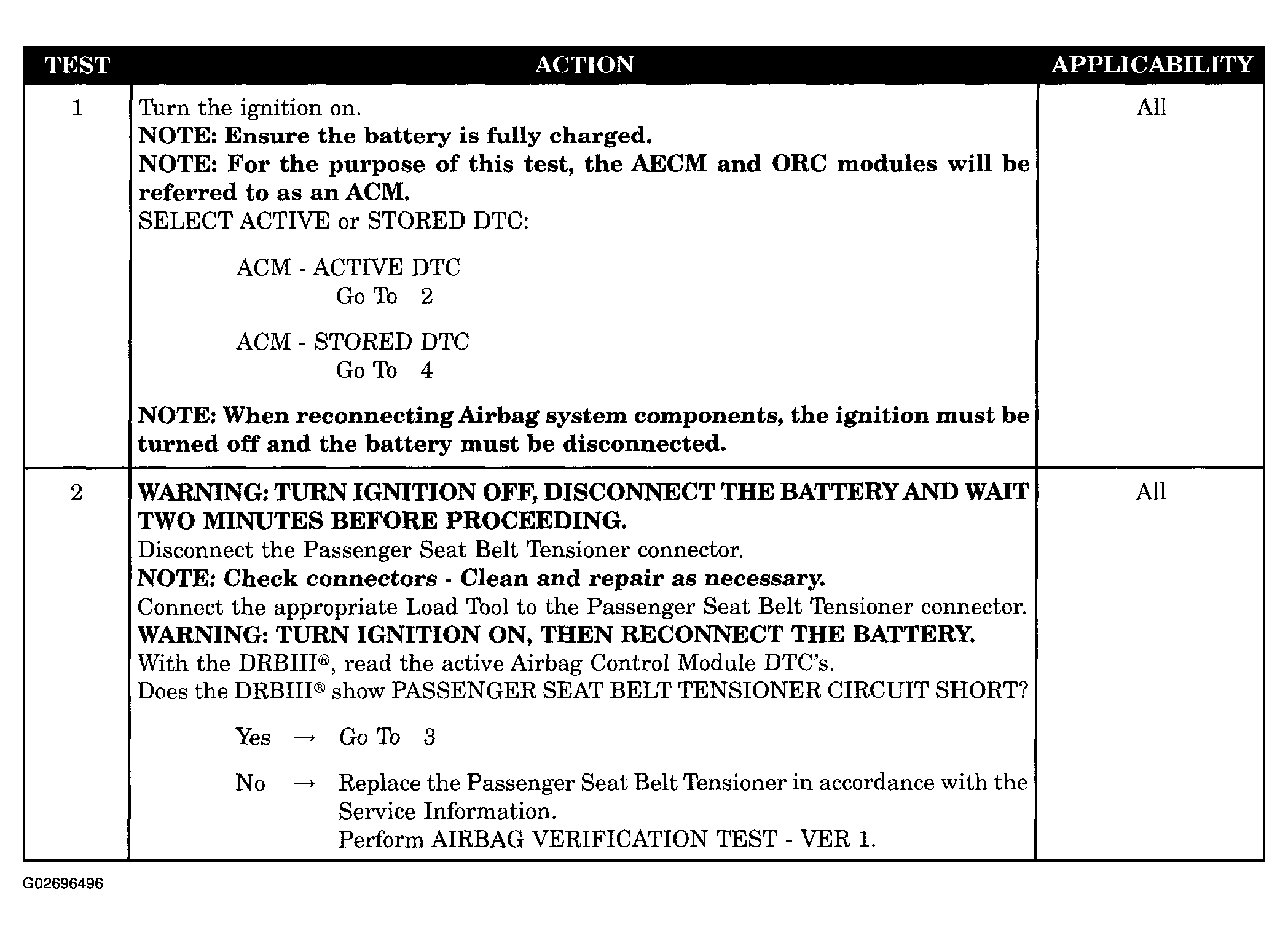

Fig 1: Testing Passenger Seat Belt Tensioner Circuit Short (1 Of 2)
G02696496Courtesy of DAIMLERCHRYSLER CORP.

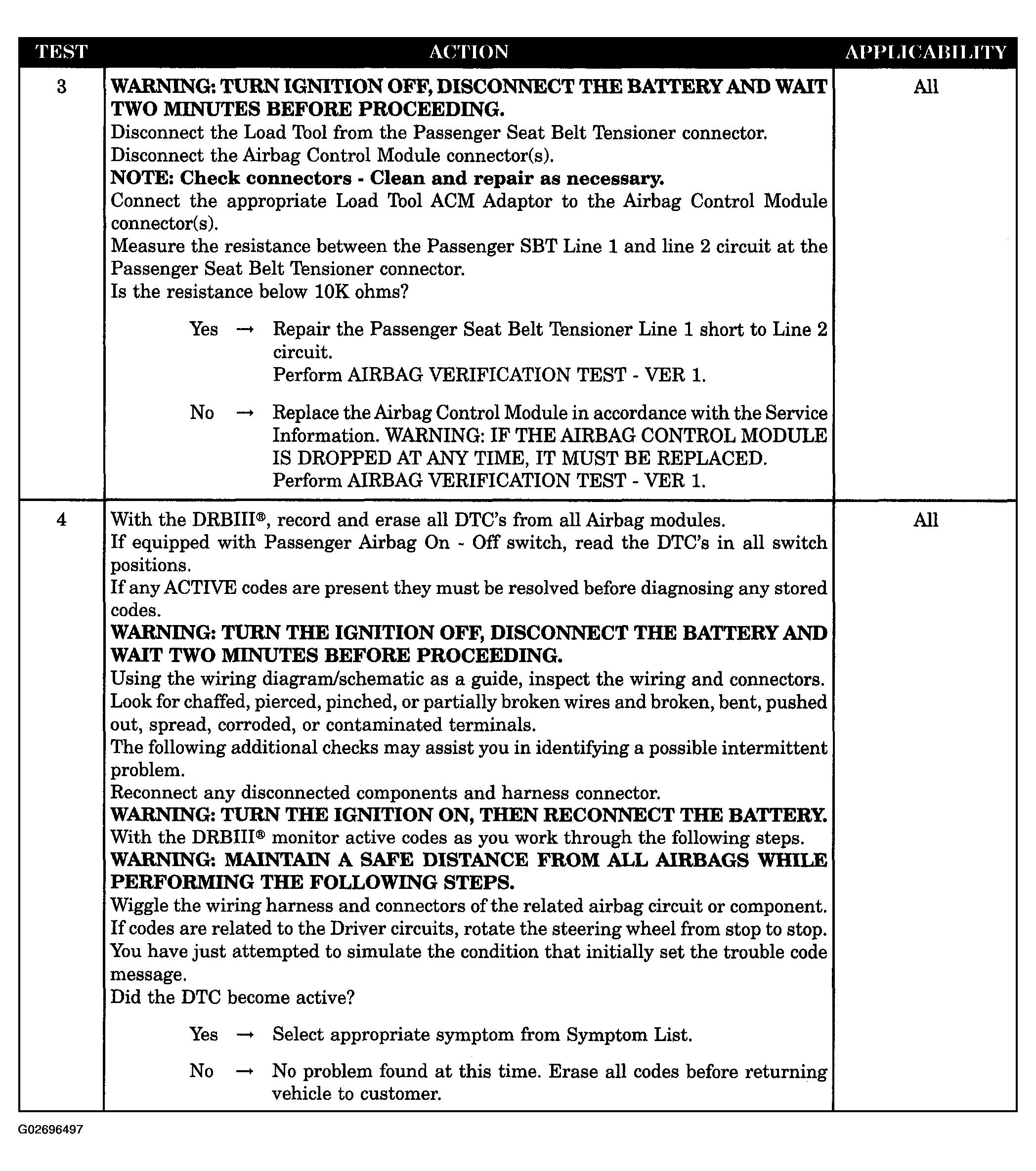

Fig 2: Testing Passenger Seat Belt Tensioner Circuit Short (2 Of 2)
G02696497Courtesy of DAIMLERCHRYSLER CORP.
