Symptom: PASSENGER SIDE IMPACT SENSOR INTERNAL 1: Testing

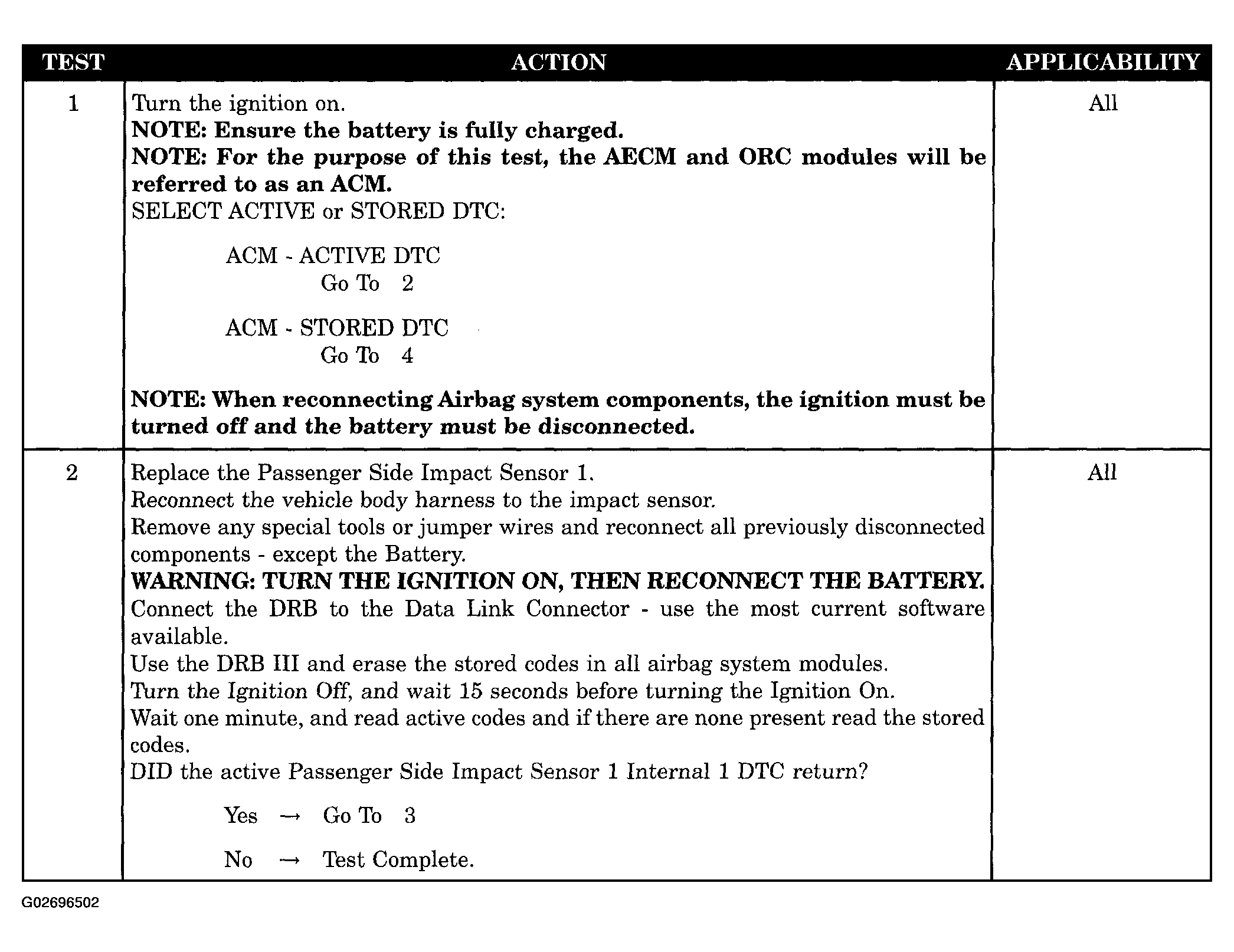

Fig 1: Testing Passenger Side Impact Sensor Internal 1 (1 Of 2)
G02696502Courtesy of DAIMLERCHRYSLER CORP.

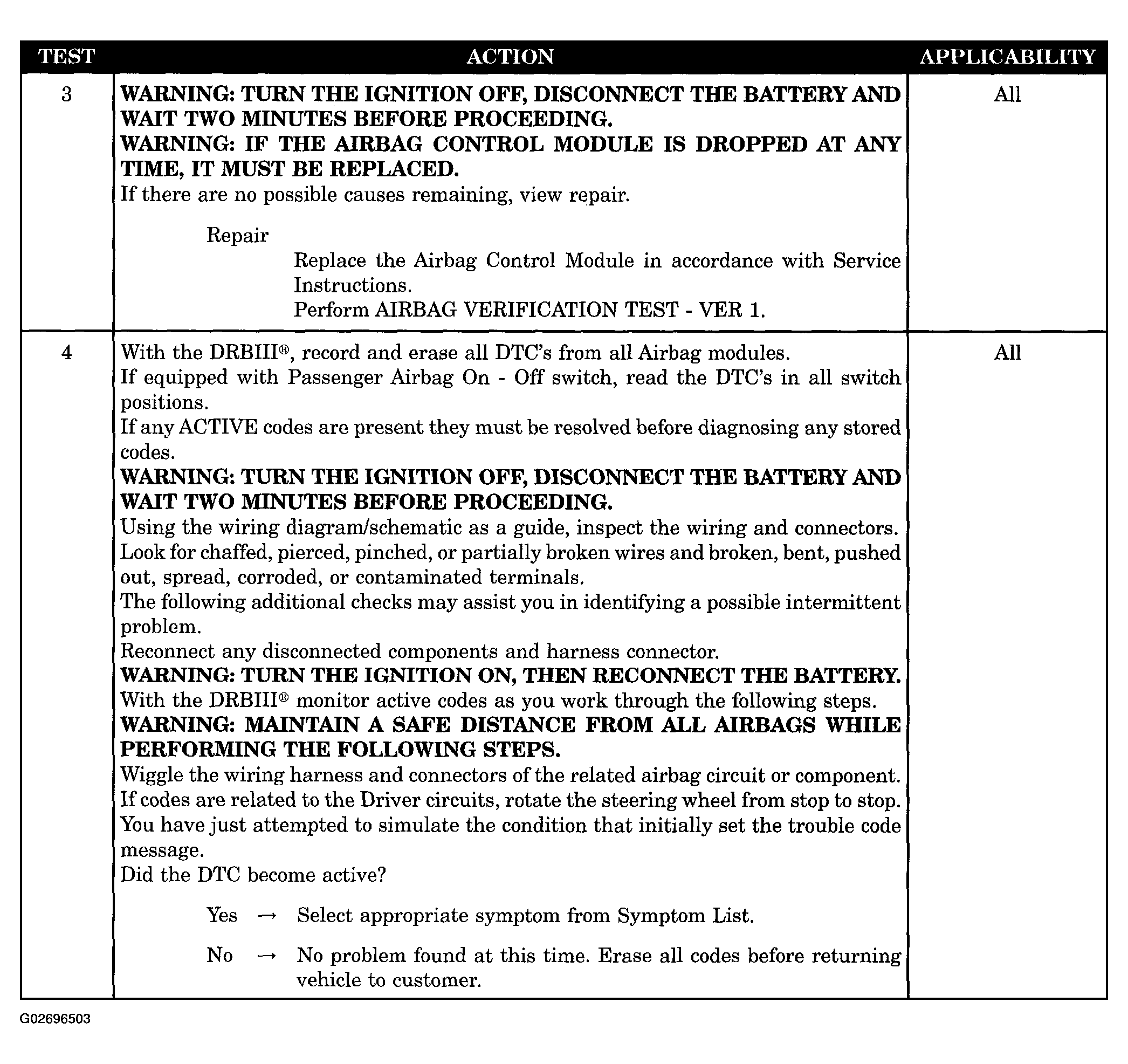

Fig 2: Testing Passenger Side Impact Sensor Internal 1 (2 Of 2)
G02696503Courtesy of DAIMLERCHRYSLER CORP.
