Diagnosis And Testing - Passenger Heated Seat Switch

For circuit description and diagrams, refer to appropriate Wiring Diagrams.

Inspect the Heated Seat Switches for apparent damage or sticking/binding and replace as required. Refer to REMOVAL  and INSTALLATION  .

Using an ohmmeter, check the continuity between pin 4 and pin 6 of the switch. Measure the resistance between the two pins, while depressing the appropriate buttons. Refer to (Fig 1 ) and the Heated Seat Switch Pin Call-Out table. If the readings do not correspond to those in the Heated Seat Switch Continuity table, replace the heated seat switch.

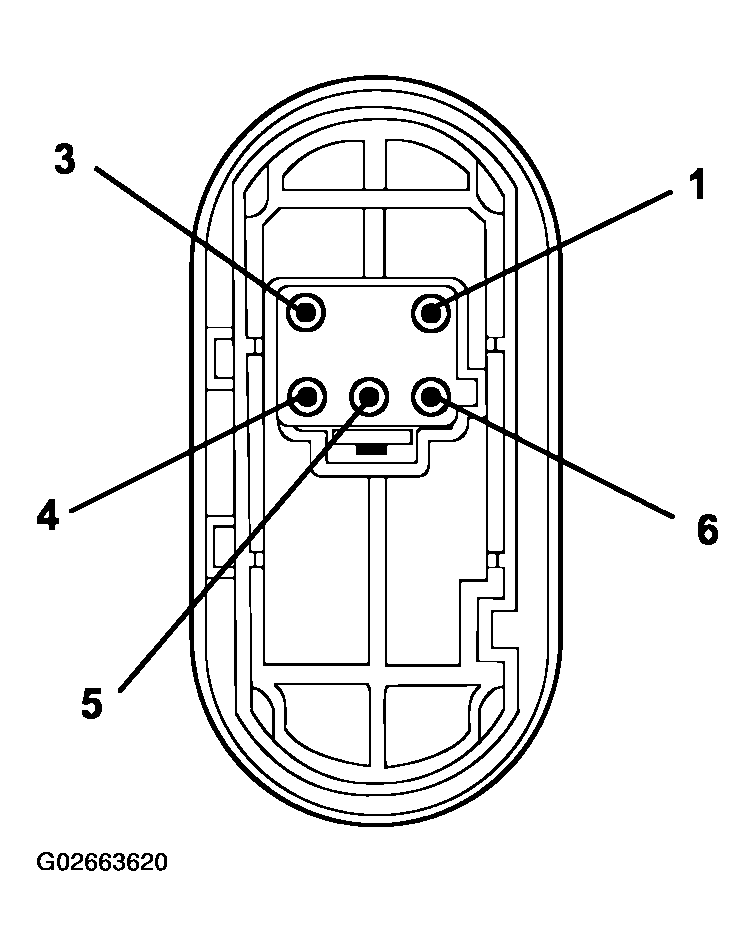

Fig 1: Identifying Heated Seat Switch (Rear View)

Courtesy of DAIMLERCHRYSLER CORP.
