Cluster Illumination Lamps: Removal

The instrument cluster turn signals (Fig. Fig 2 ), (Fig. Fig 1 ) and the high beam indicator (Fig. Figure ) are serviceable indicators. The instrument cluster must first be removed to replace the high beam indicator (Refer to INSTRUMENT CLUSTER ). Then the defective bulb and socket turns out counterclockwise. The instrument cluster bezel needs to be removed to access the turn signal indicators (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - REMOVAL ). If any of the other indicators are burned out, the entire cluster must be replaced.

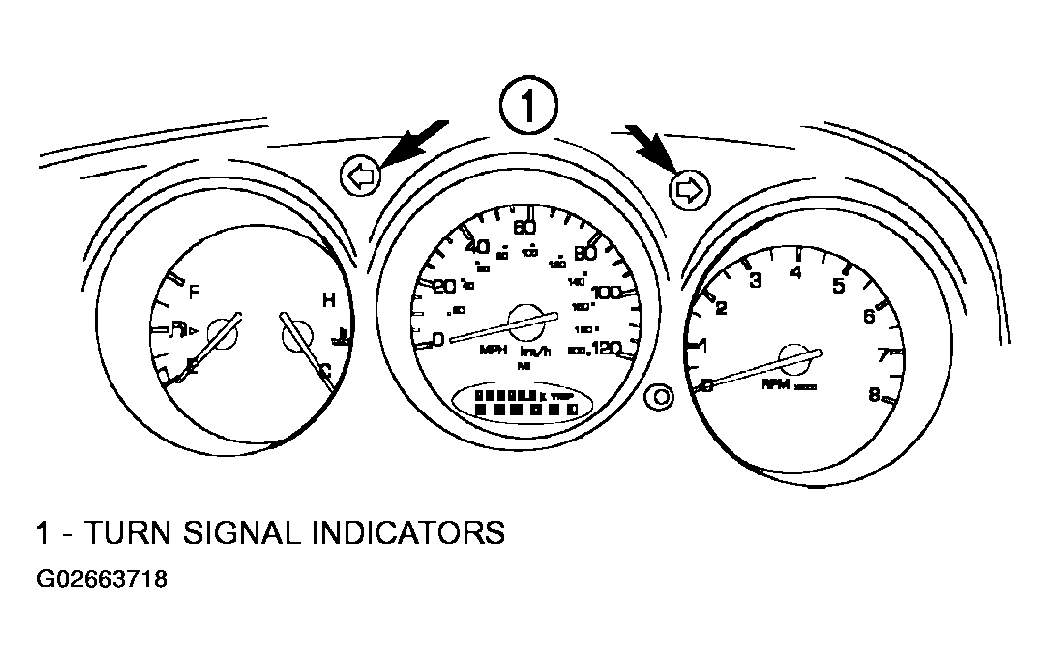

Fig 1: Identifying Turn Signal Indicator Lamps

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Removing/Installing Turn Signal Lamp(s)

Courtesy of DAIMLERCHRYSLER CORP.

The cluster illumination bulbs are serviceable and may be replaced once the instrument cluster is removed (Refer to INSTRUMENT CLUSTER ).
