Cluster Illumination Lamps: Installation

The illumination bulbs (Fig. Fig 1 ) are serviceable. The bulb and socket turn in clockwise. Then the instrument cluster may be installed (Refer to INSTRUMENT CLUSTER ).

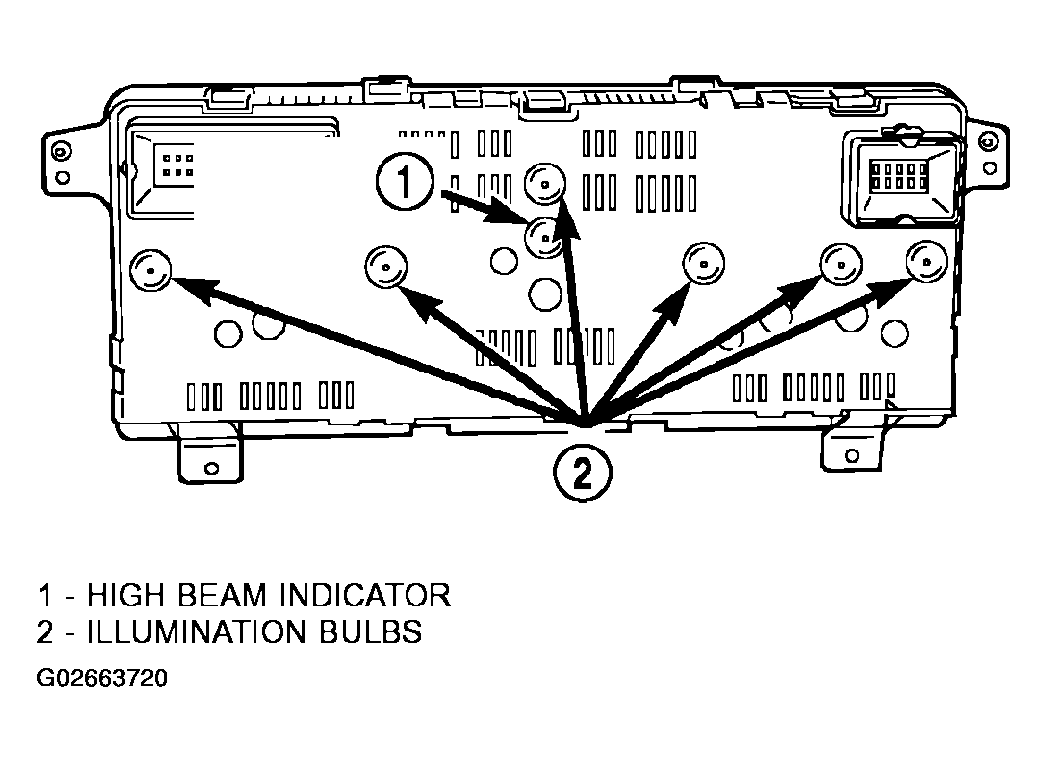

Fig 1: Identifying Instrument Cluster Illumination Bulb Locations

Courtesy of DAIMLERCHRYSLER CORP.

After servicing the indicator (high beam only), install the instrument cluster (Refer to INSTRUMENT CLUSTER ).

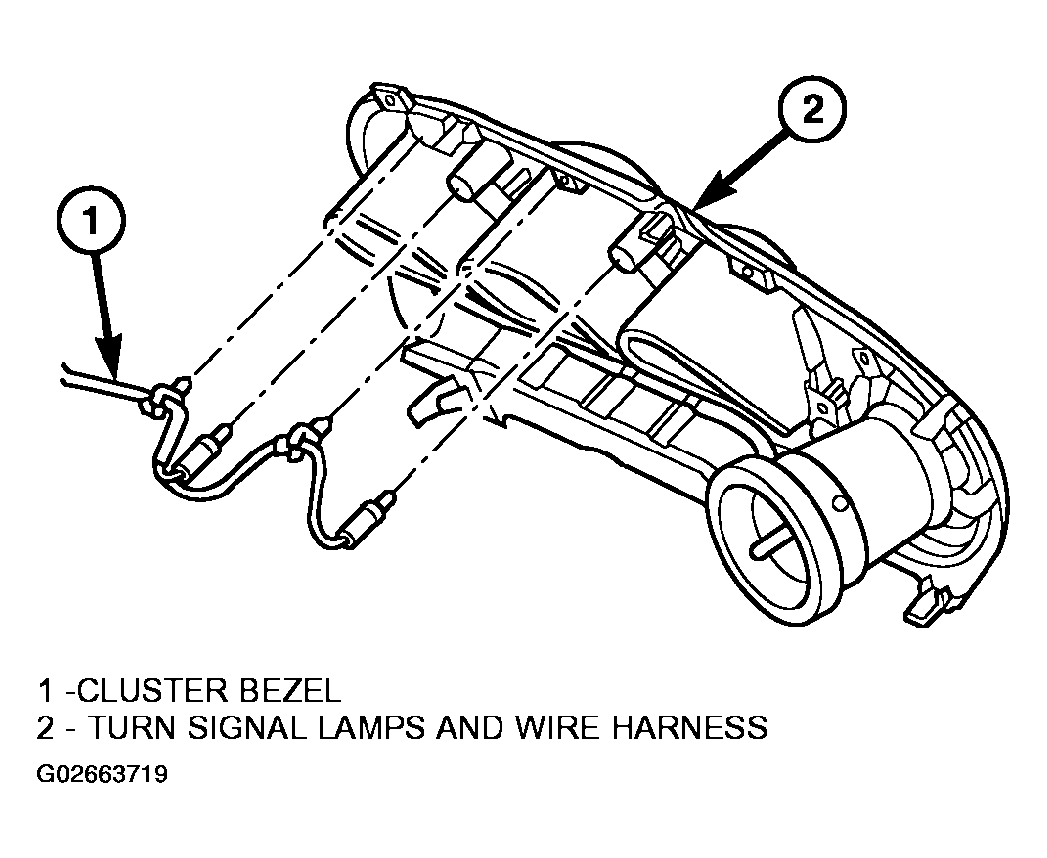

After replacing the turn signal bulb(s) (Fig. Figure ), install the (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - INSTALLATION ).
