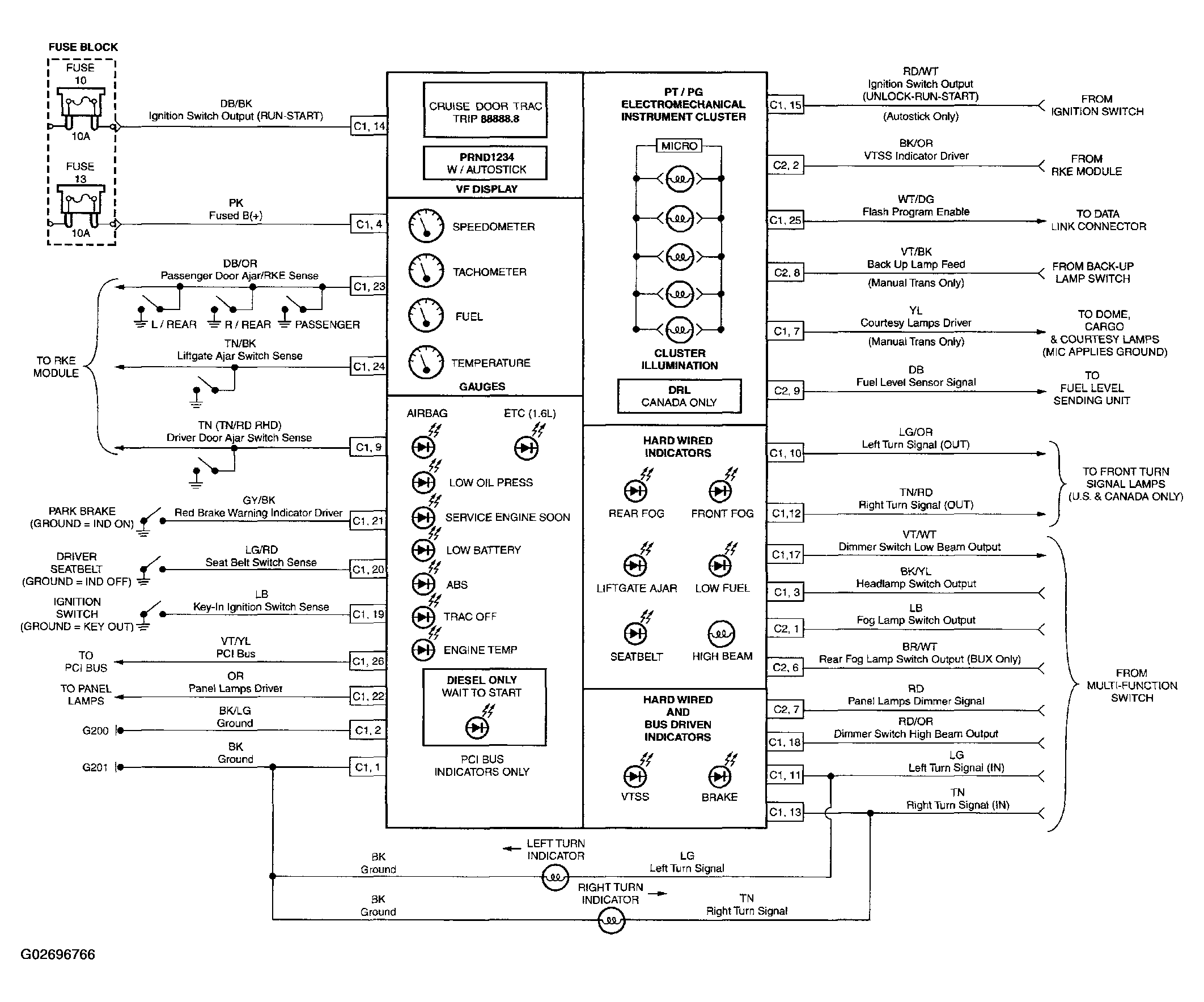

Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Illumination Lights >> Body Diagnostic Procedures >> Schematic Diagrams >> Instrument Cluster
