Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Illumination Lights >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Vehicle Theft/Security >> Symptom: *HEADLAMPS FAIL TO FLASH DURING ALARM >> Testing

Symptom: *HEADLAMPS FAIL TO FLASH DURING ALARM: Testing

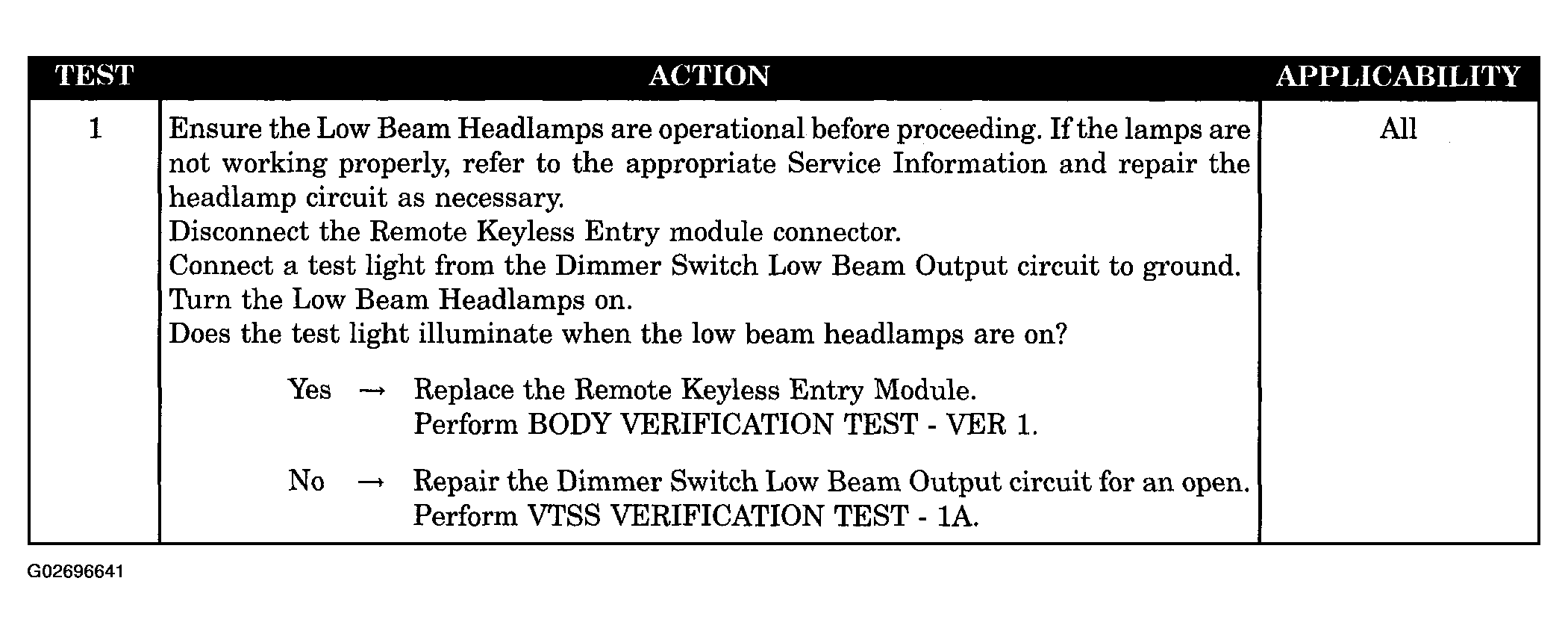

Fig 1: Testing Headlamps Fail To Flash During Alarm

G02696641

Courtesy of DAIMLERCHRYSLER CORP.
