Symptom: ALL OUTPUTS SHORT: Testing

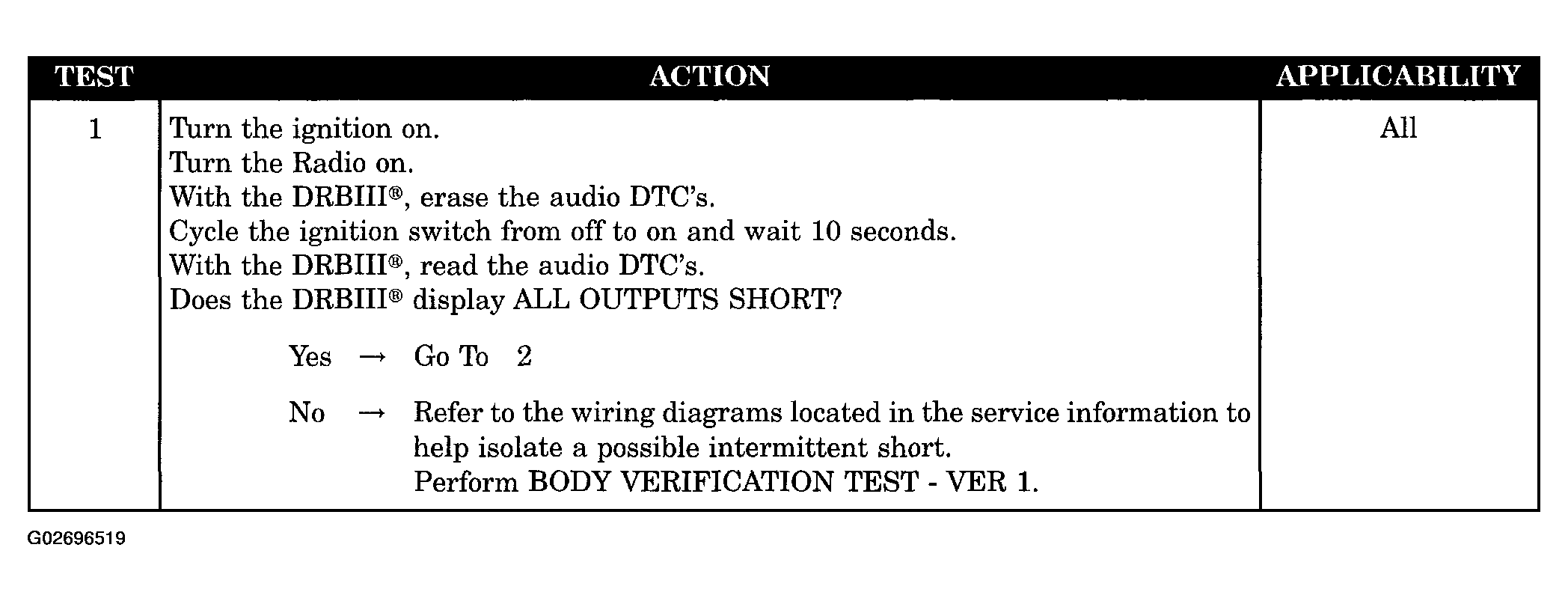

Fig 1: Testing All Outputs Short (1 Of 3)
G02696519Courtesy of DAIMLERCHRYSLER CORP.

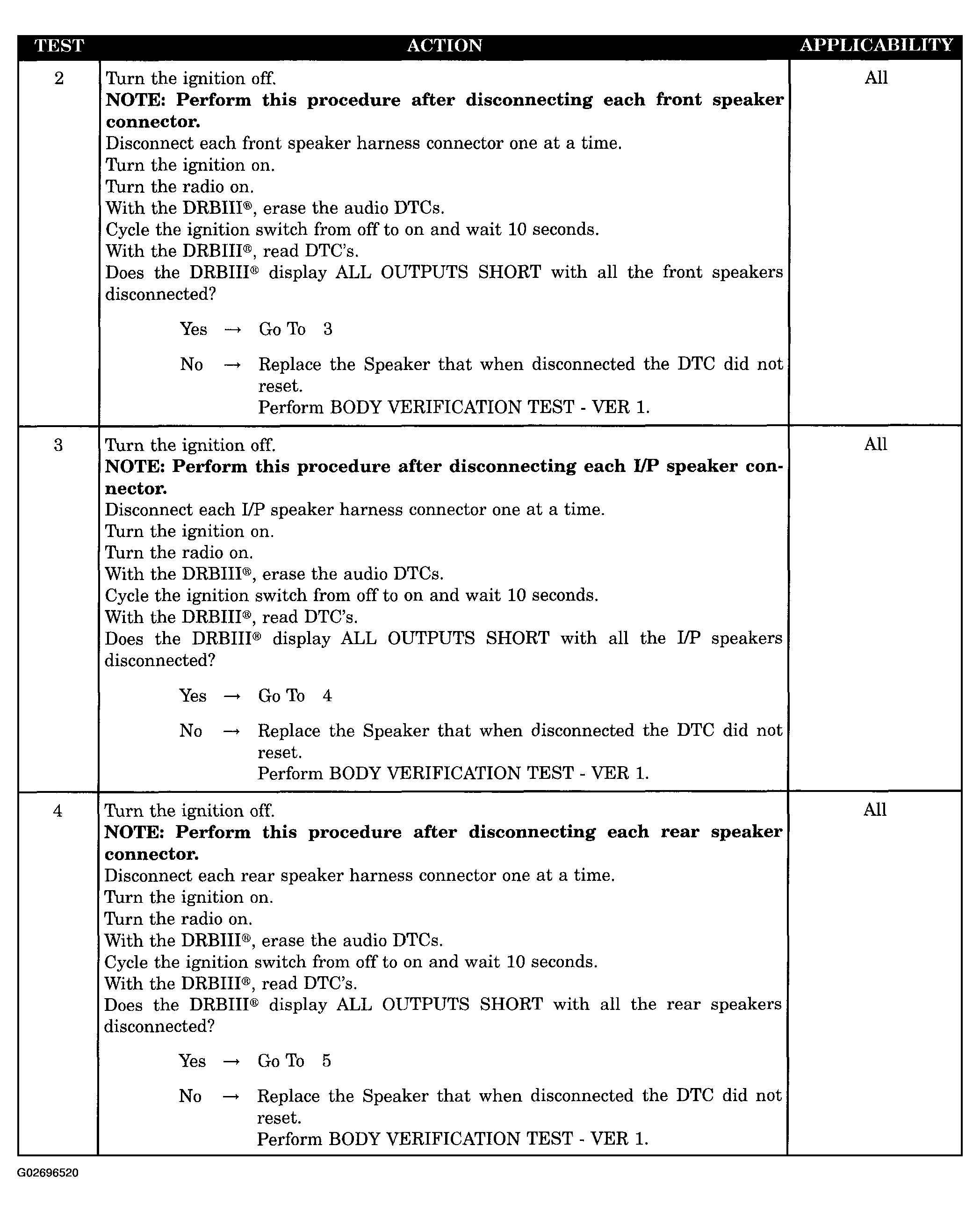

Fig 2: Testing All Outputs Short (2 Of 3)
G02696520Courtesy of DAIMLERCHRYSLER CORP.

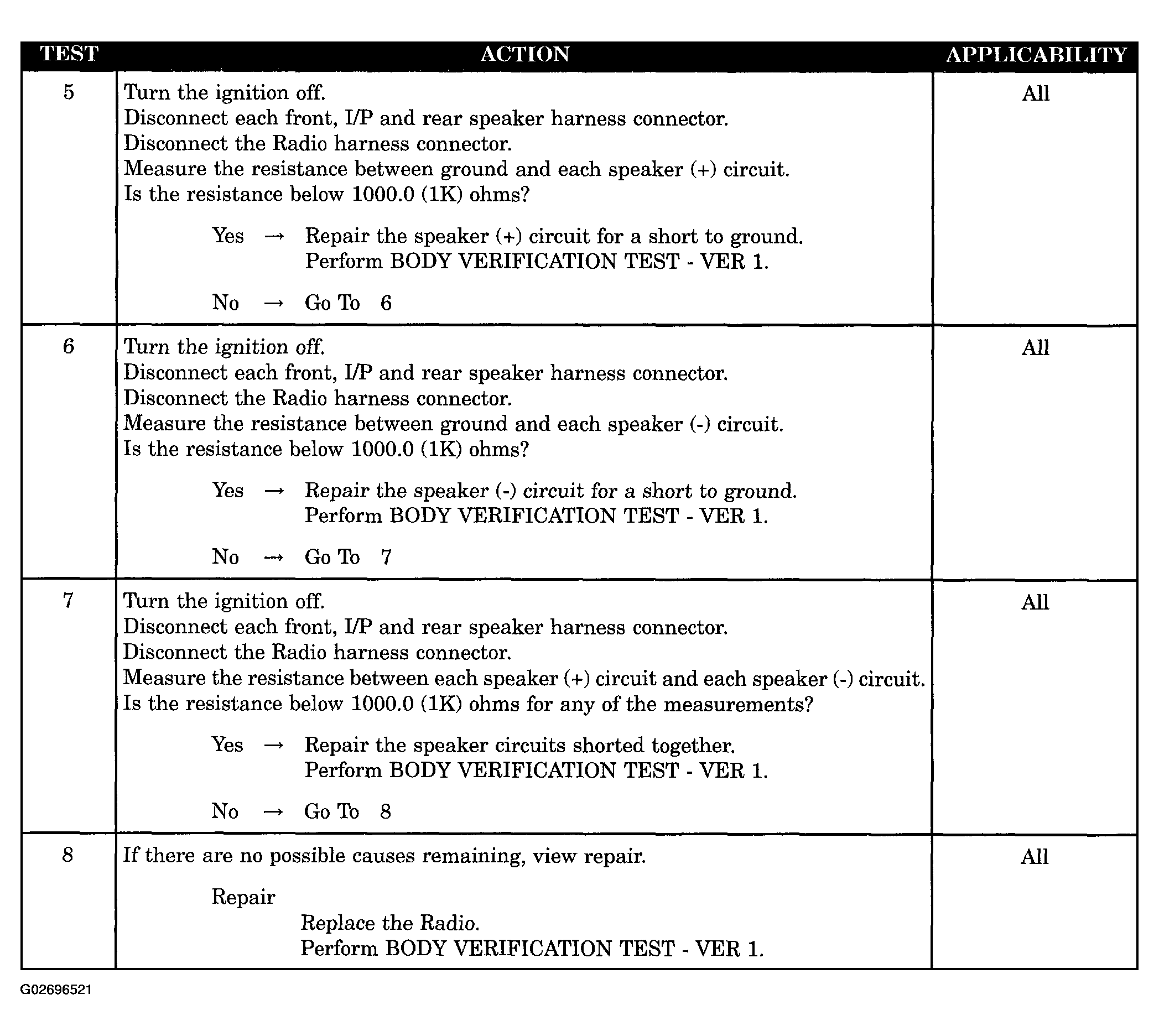

Fig 3: Testing All Outputs Short (3 Of 3)
G02696521Courtesy of DAIMLERCHRYSLER CORP.
