Symptom: NO DRIVER SIDE IMPACT SENSOR 1 COMMUNICATION: Testing

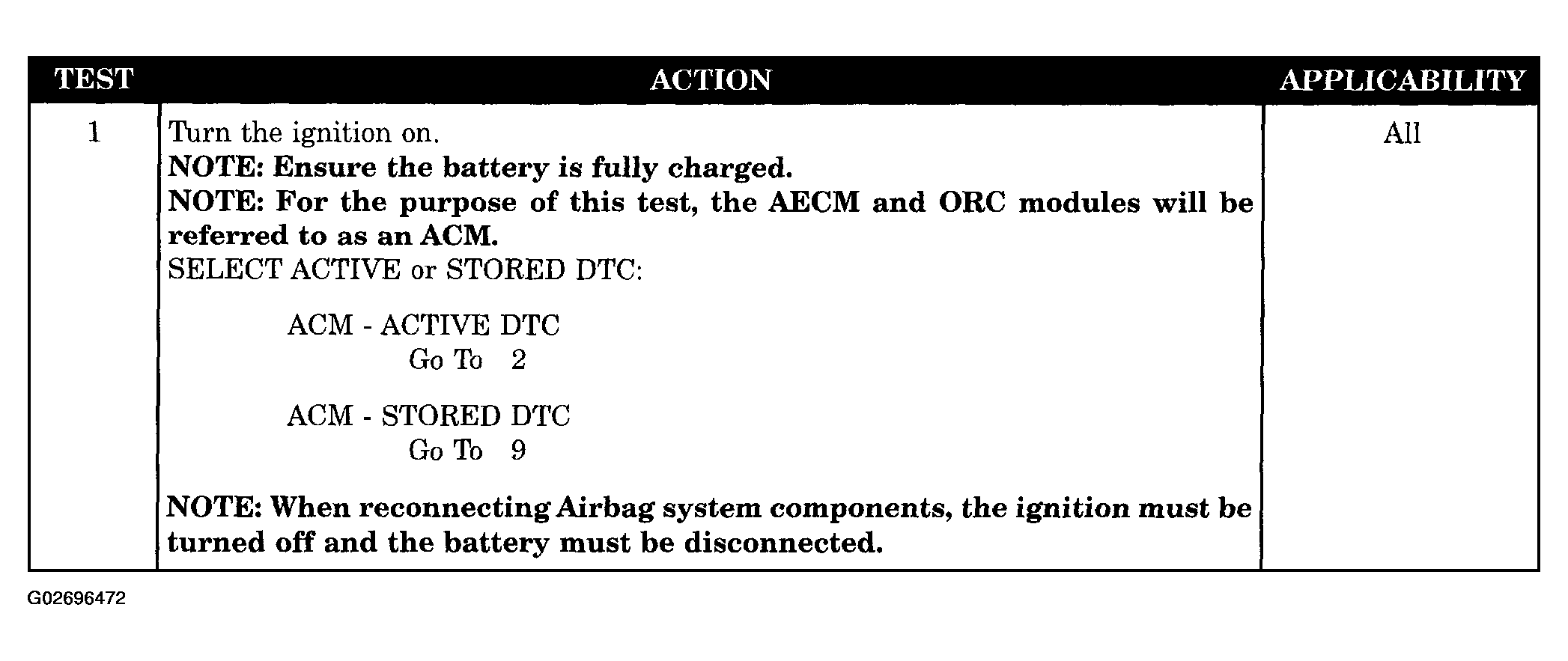

Fig 1: Testing No Driver Side Impact Sensor 1 Communication (1 Of 3)
G02696472Courtesy of DAIMLERCHRYSLER CORP.

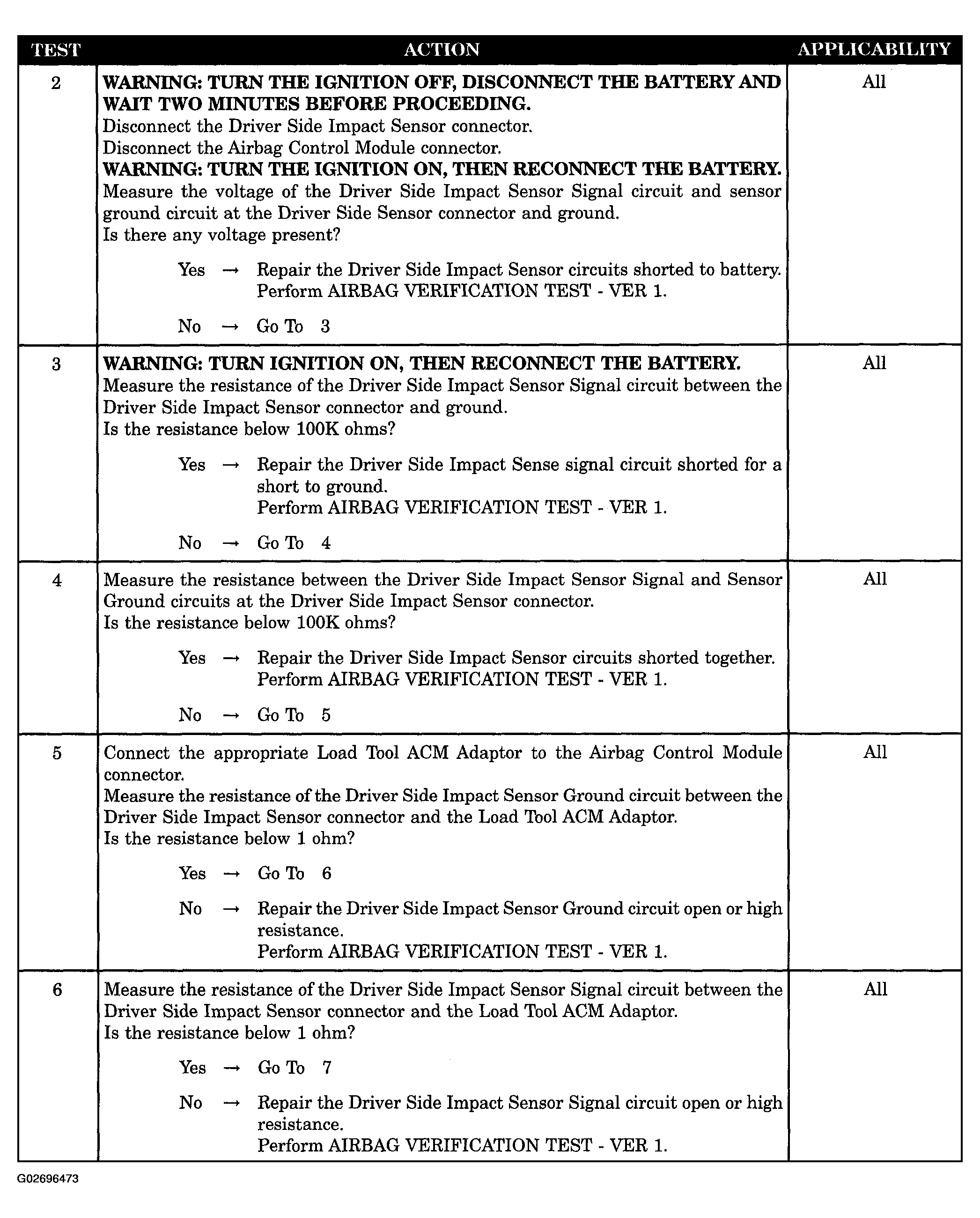

Fig 2: Testing No Driver Side Impact Sensor 1 Communication (2 Of 3)
G02696473Courtesy of DAIMLERCHRYSLER CORP.

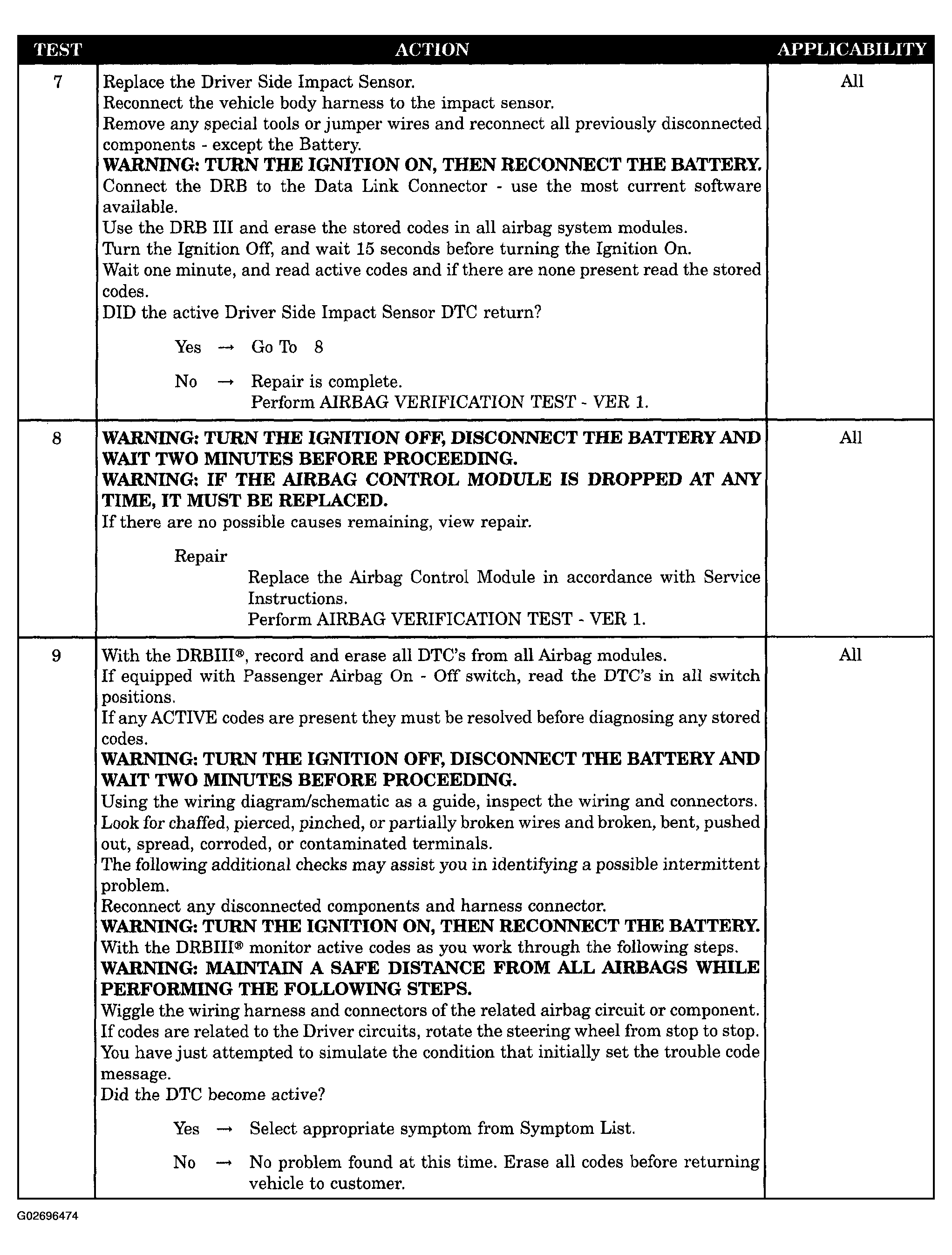

Fig 3: Testing No Driver Side Impact Sensor 1 Communication (3 Of 3)
G02696474Courtesy of DAIMLERCHRYSLER CORP.
