Symptom: LOSS OF IGNITION RUN - START: Testing

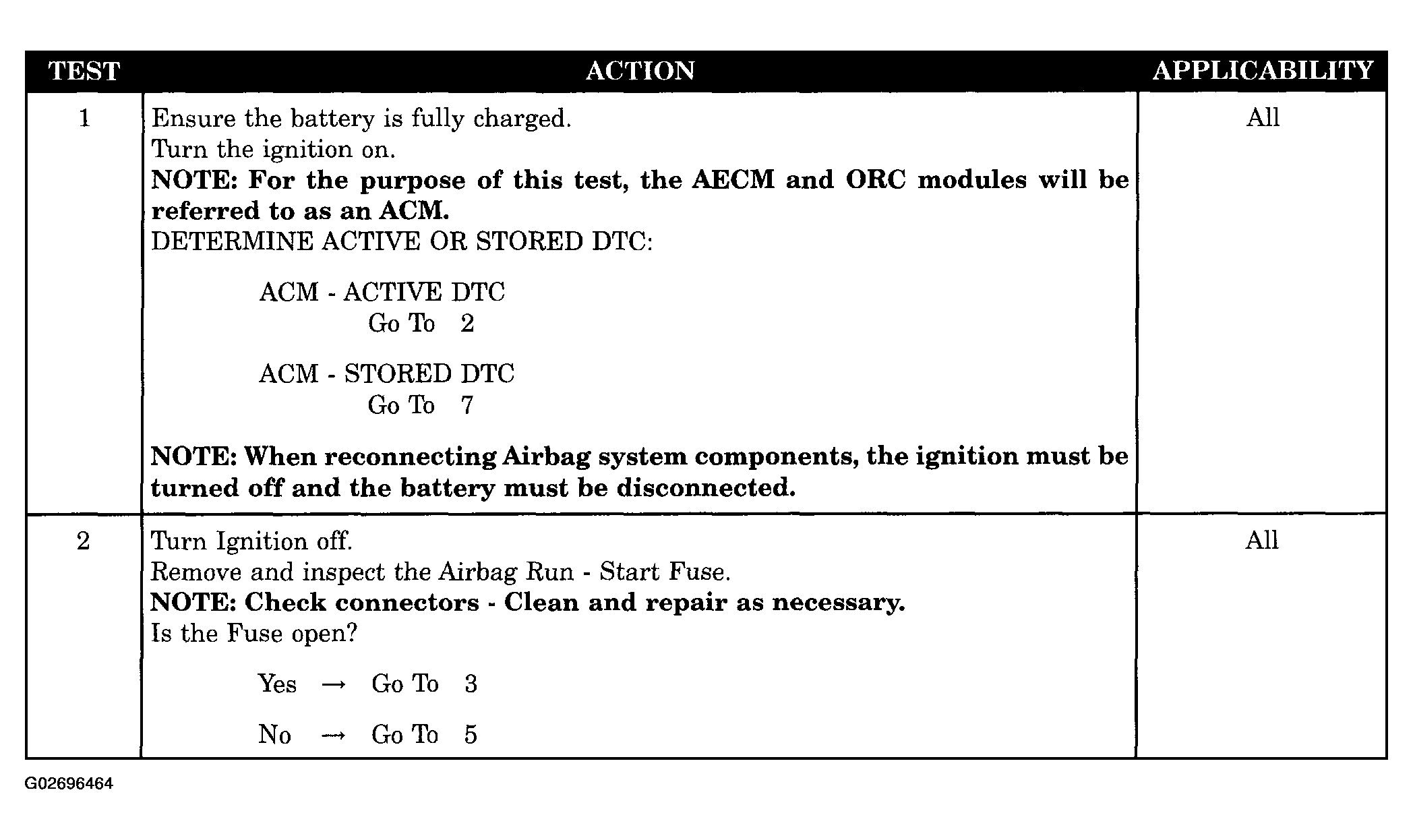

Fig 1: Testing Loss Of Ignition Run - Start (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

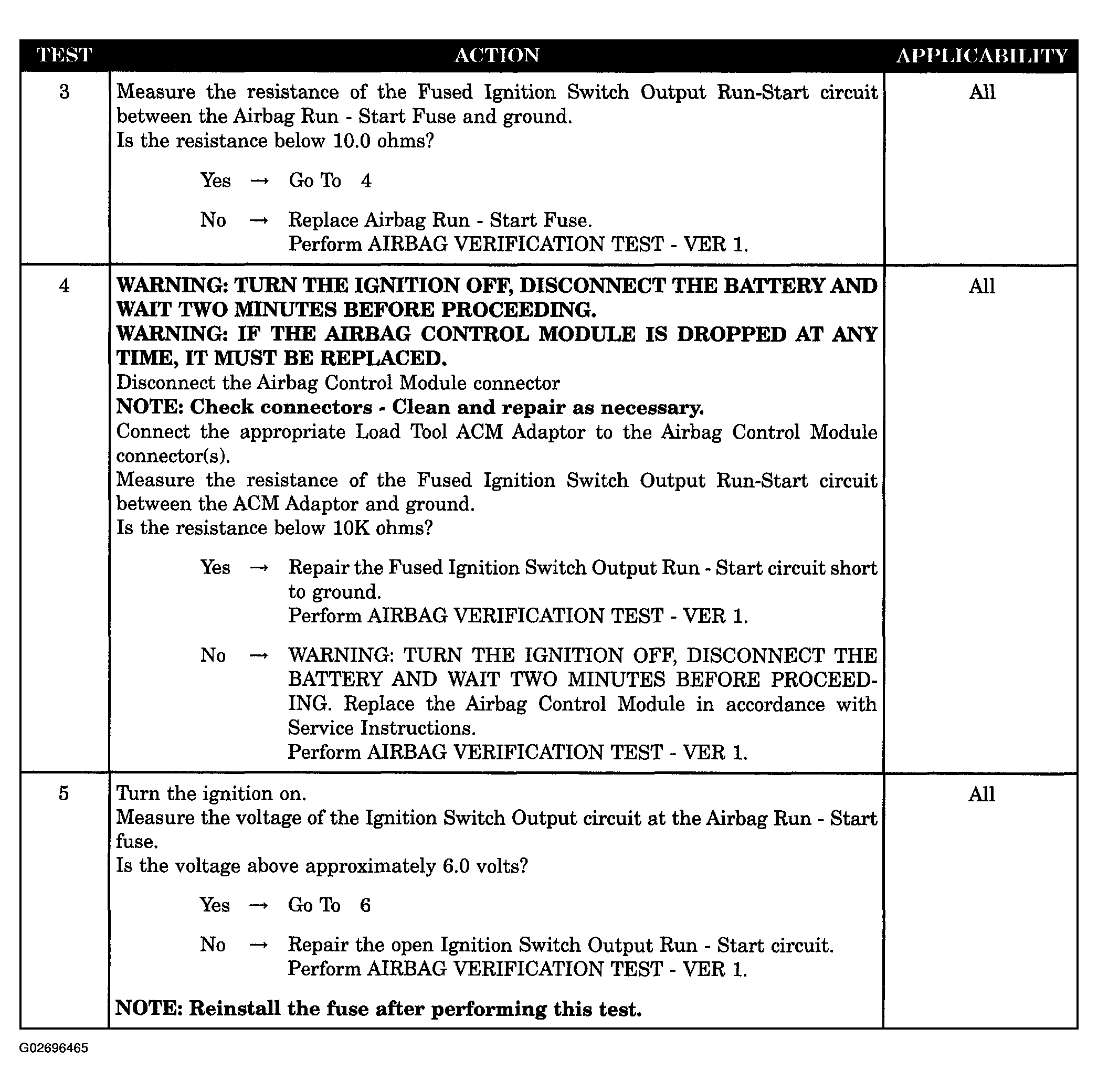

Fig 2: Testing Loss Of Ignition Run - Start (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

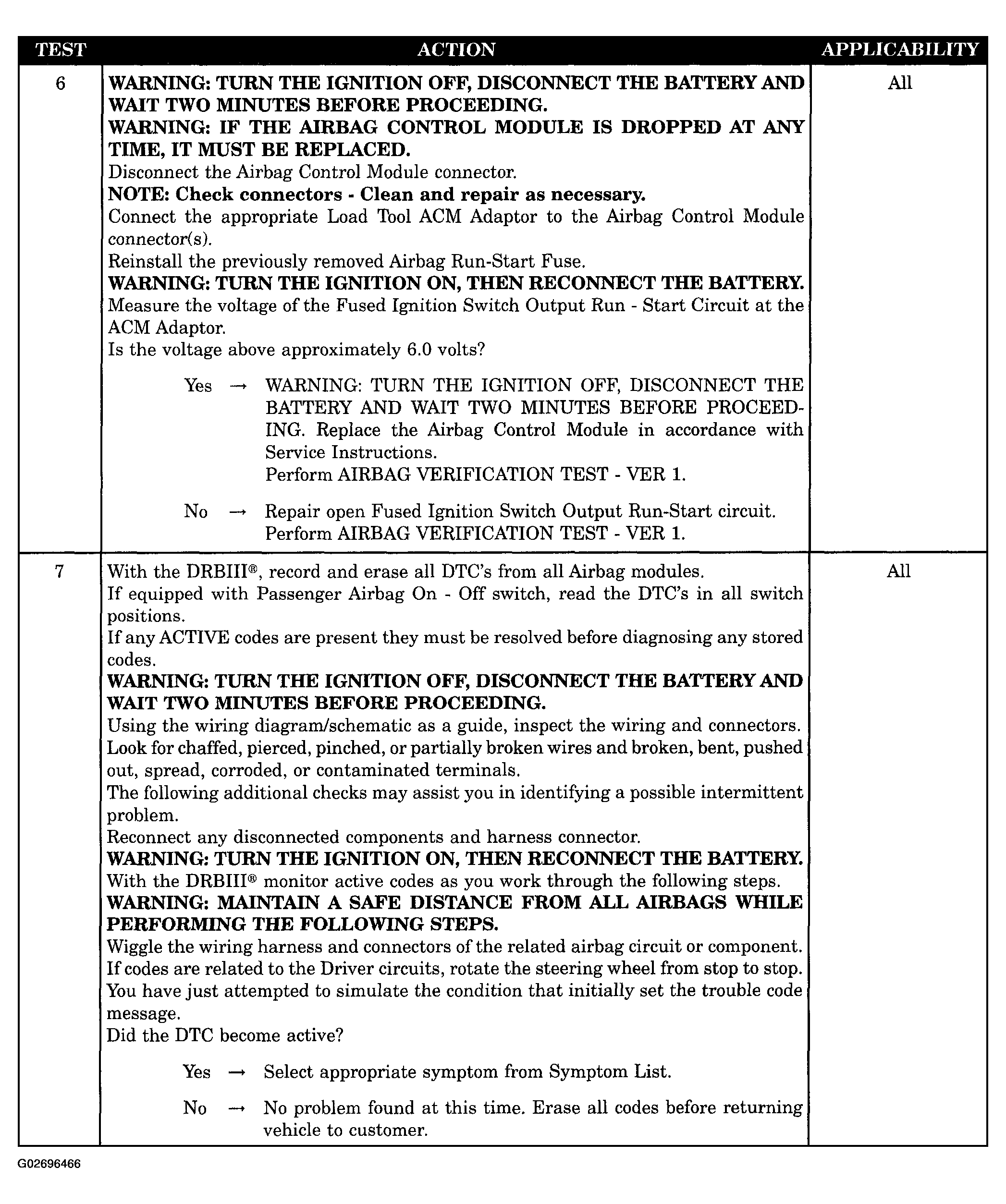

Fig 3: Testing Loss Of Ignition Run - Start (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
