Door Sill Trim: Removal

  1. Open door to gain access to sill trim.
  2. Disengage clips attaching sill trim to door sill and door opening flange.
  3. Remove door sill trim from vehicle (Fig 1 ).

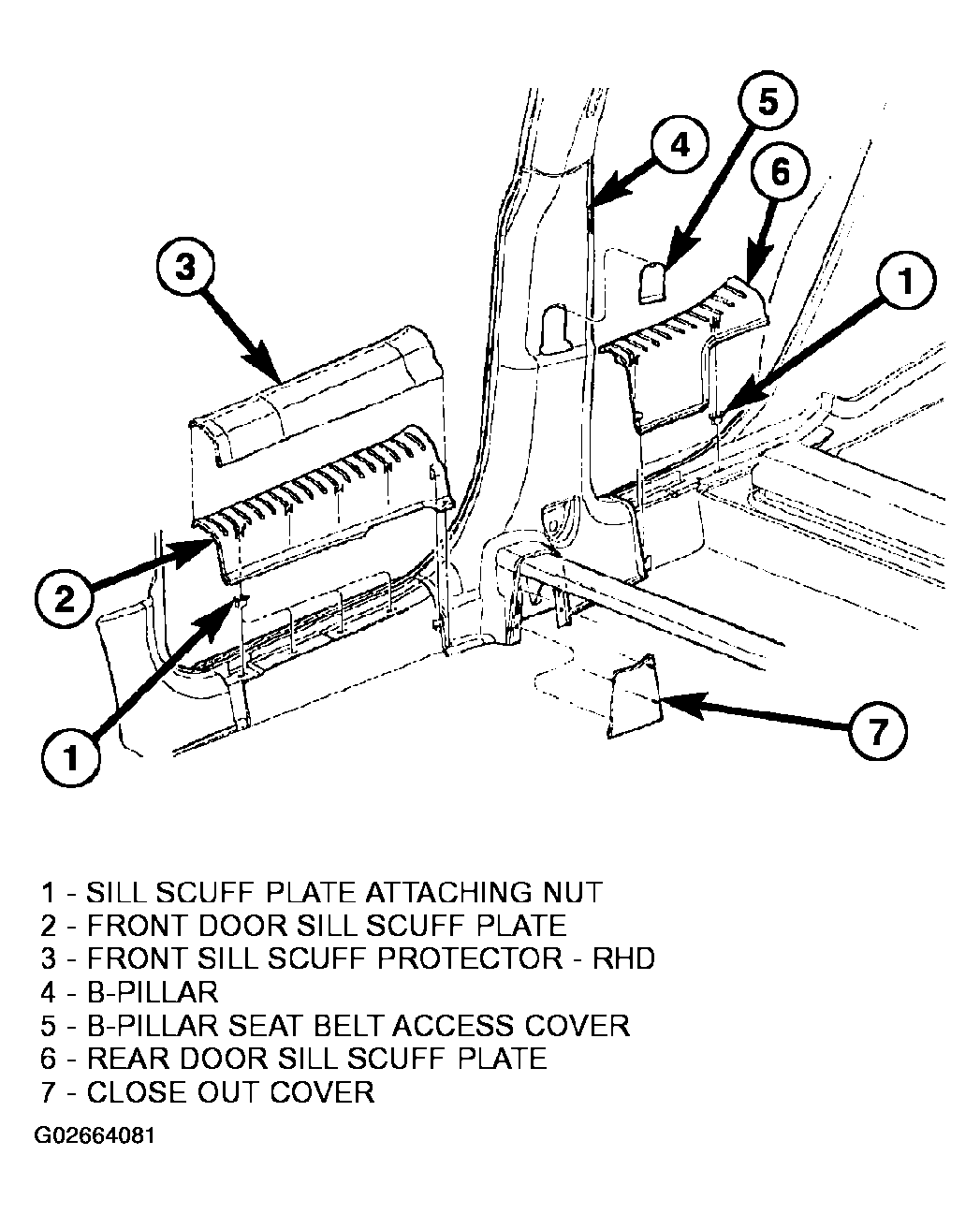

    Fig 1: Identifying Door Sill Trim
    G02664081Courtesy of DAIMLERCHRYSLER CORP.
