Body Vent: Removal

  1. Hoist rear end of vehicle and support on safety stands.
  2. From behind rear bumper fascia below quarter panel, disengage clips attaching body vent to wheel well.
  3. Remove body vent from vehicle (Fig 1 ).

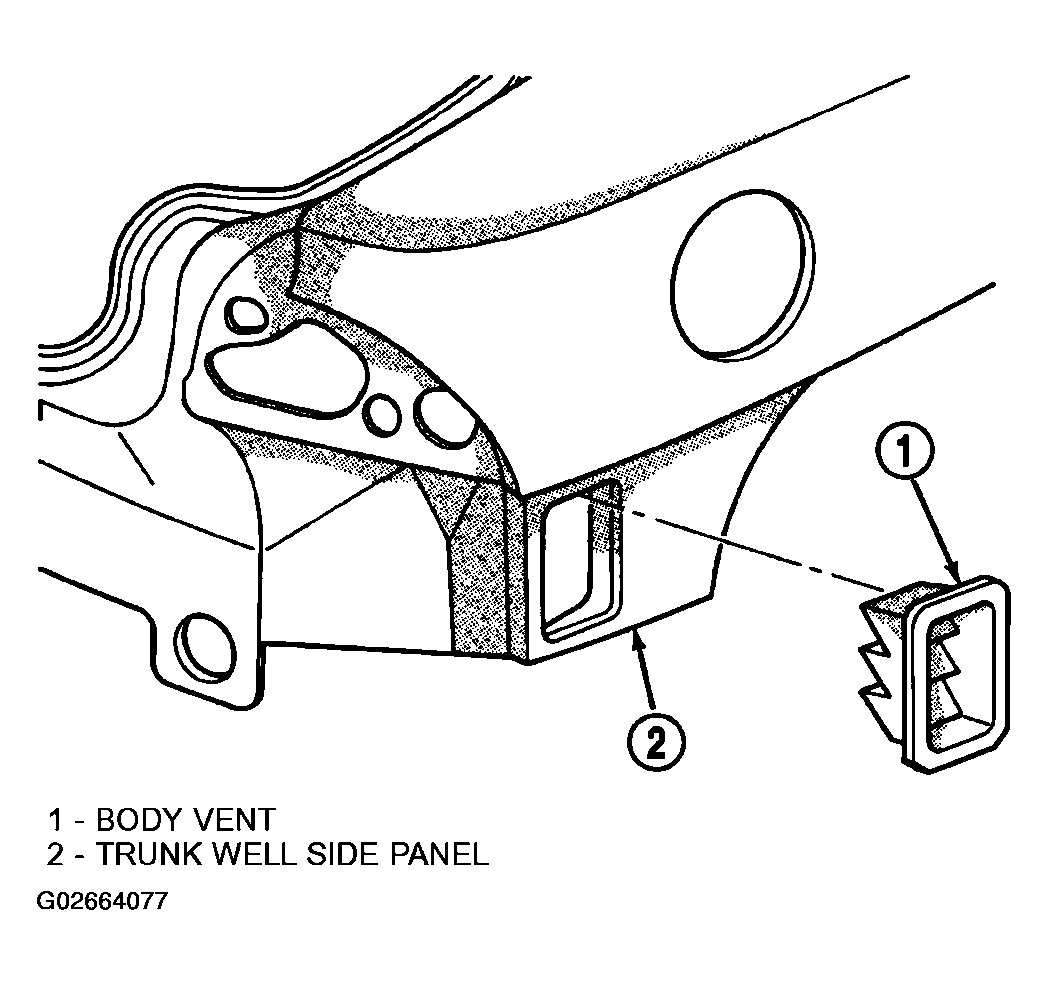

    Fig 1: Removing Body Vent
    G02664077Courtesy of DAIMLERCHRYSLER CORP.
