Instrument Panel Center Bezel: Removal
- Open hood.
- Disconnect and isolate the battery negative cable (Figure
).

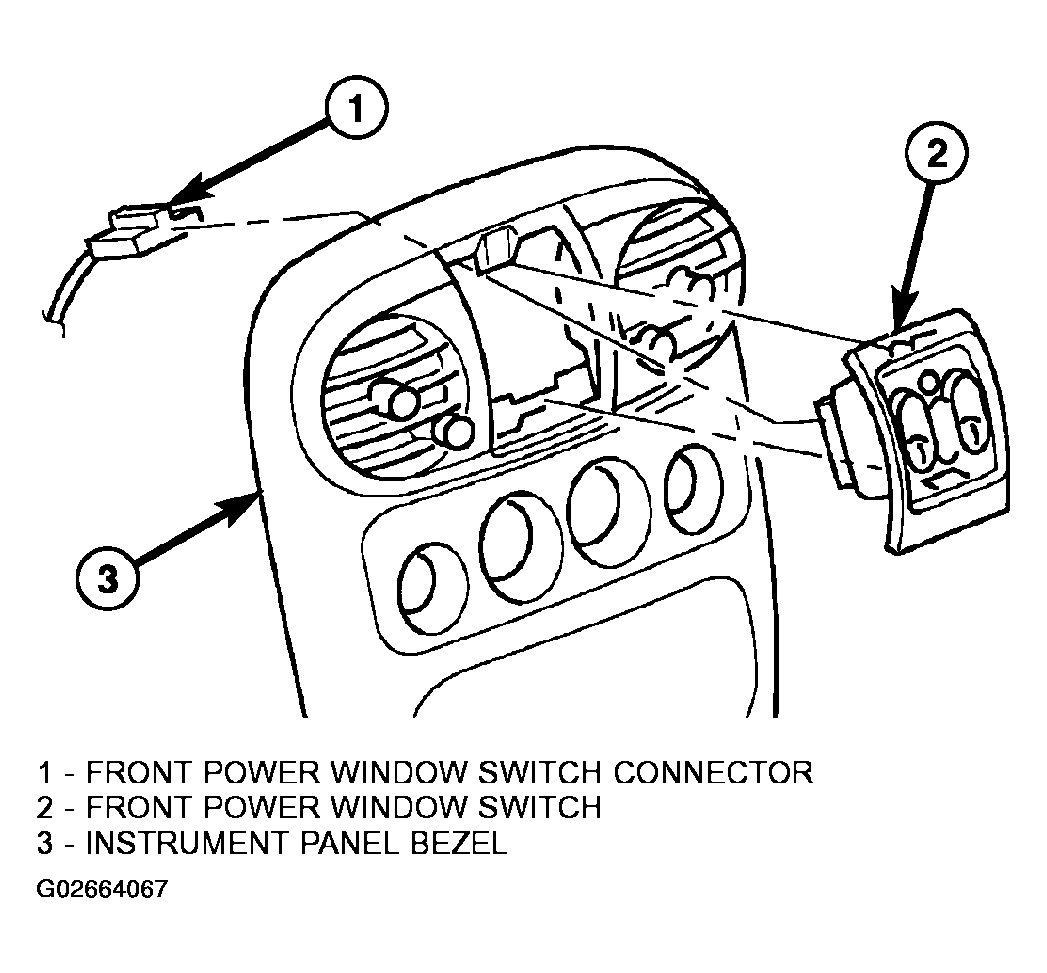

- Using a trim stick (special tool #C-4755) or equivalent, gently pry out the front power window switch from the instrument panel switch bezel (Fig 1
) and disconnect the switch electrical connector.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove HVAC control knobs from control head (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.

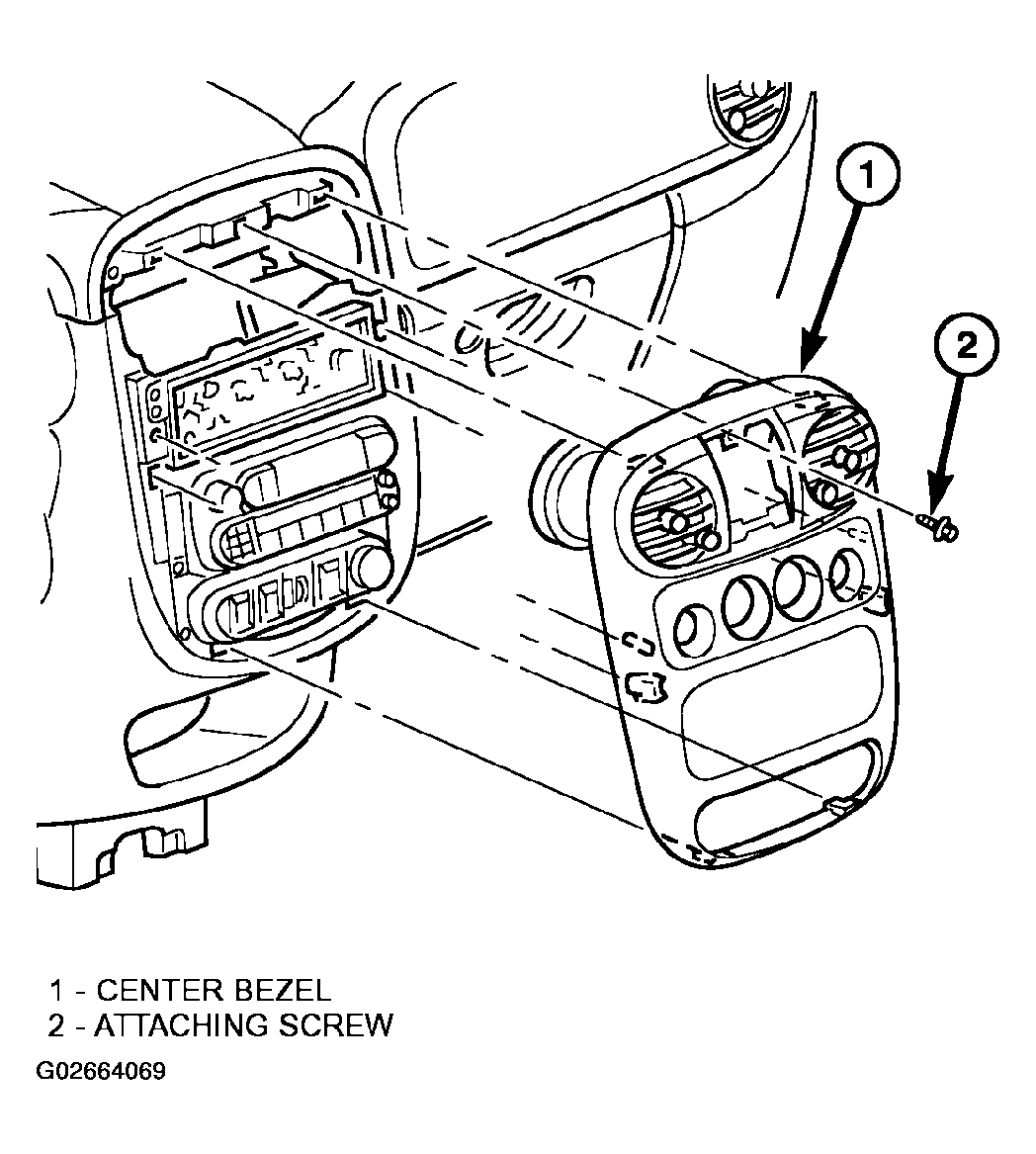

- Remove one retaining screw to center bezel inside window switch opening (Fig 3
).
Courtesy of DAIMLERCHRYSLER CORP.
- Using a trim stick or equivalent, gently pry the center bezel out of the instrument panel and remove (Fig 3
) from vehicle.
