Glove Box Lock Cylinder: Removal

Open passenger door.
Remove and disassemble glove box assembly. Refer to GLOVE BOX LATCH .
Insert key into glove box lock cylinder. Using a small pocket screwdriver or equivalent, push in on retaining tab as you turn the lock cylinder 90° and pull out lock cylinder (Fig 1 ) and (Fig 2 ).

Fig 1: Identifying Glove Box Lock Cylinder Release Tab Location
Courtesy of DAIMLERCHRYSLER CORP.

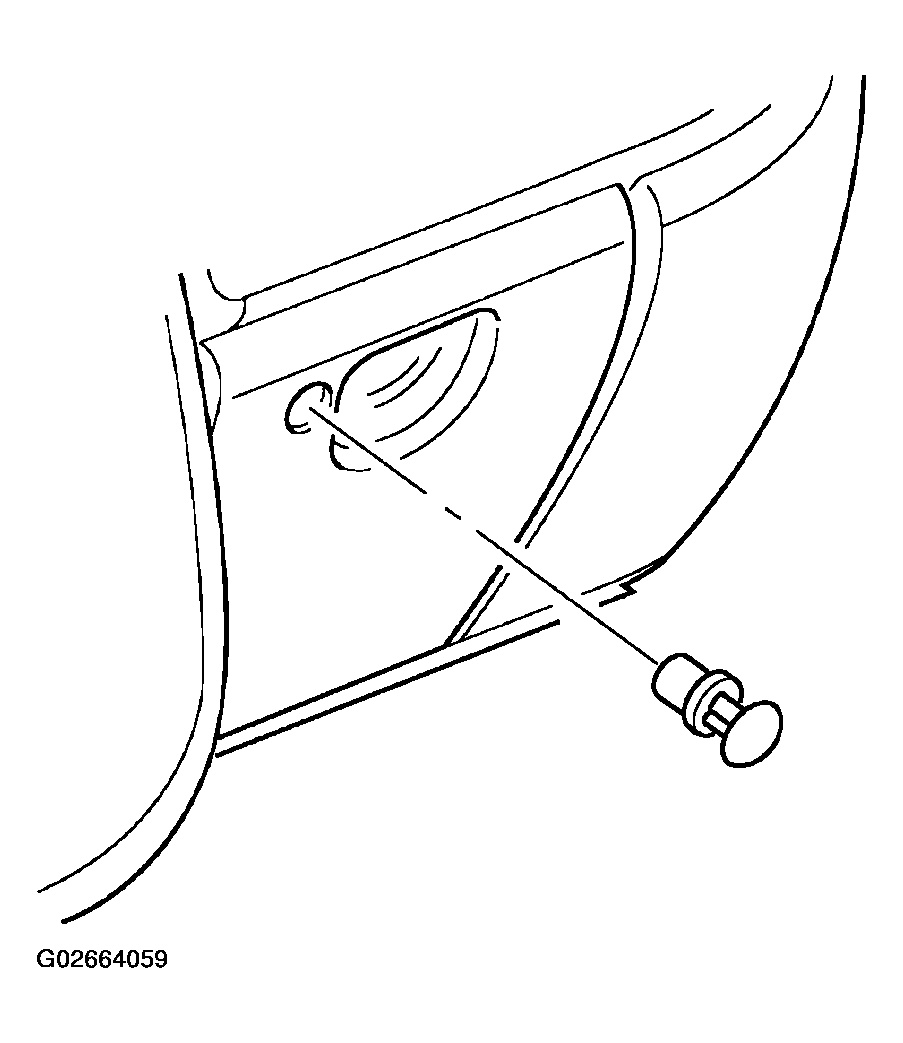

Fig 2: Removing Glove Box Lock Cylinder
Courtesy of DAIMLERCHRYSLER CORP.
