Glove Box Latch: Removal

  1. Open front passenger door.
  2. Remove glove box assembly. Refer to GLOVE BOX  .
  3. With glove box assembly on bench, remove eleven glove box assembly screws (Fig 1 ).

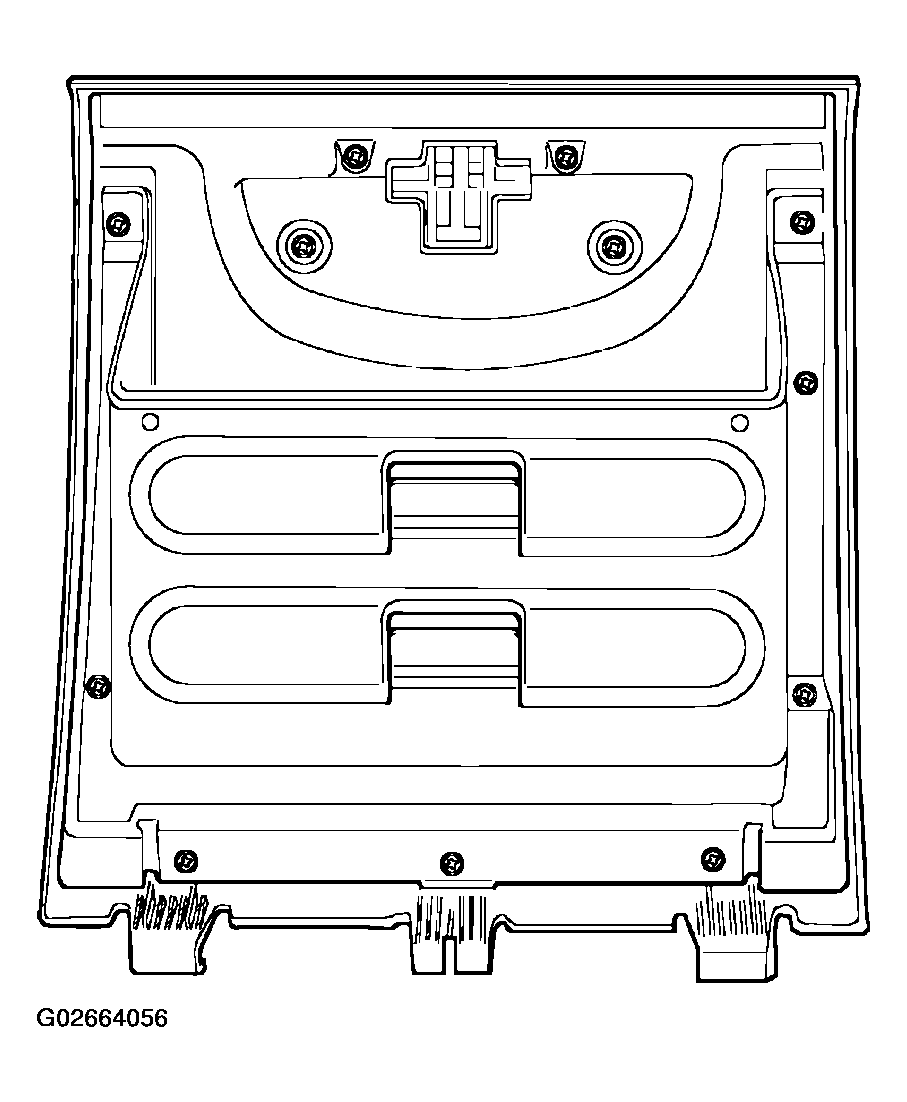

    Fig 1: Identifying Glove Box Assembly Screws
    G02664056Courtesy of DAIMLERCHRYSLER CORP.
