Luggage Rack Crossbar: Removal

  1. Loosen the end cap set screws on both side rails and remove end caps. (Fig. Fig 1 ).

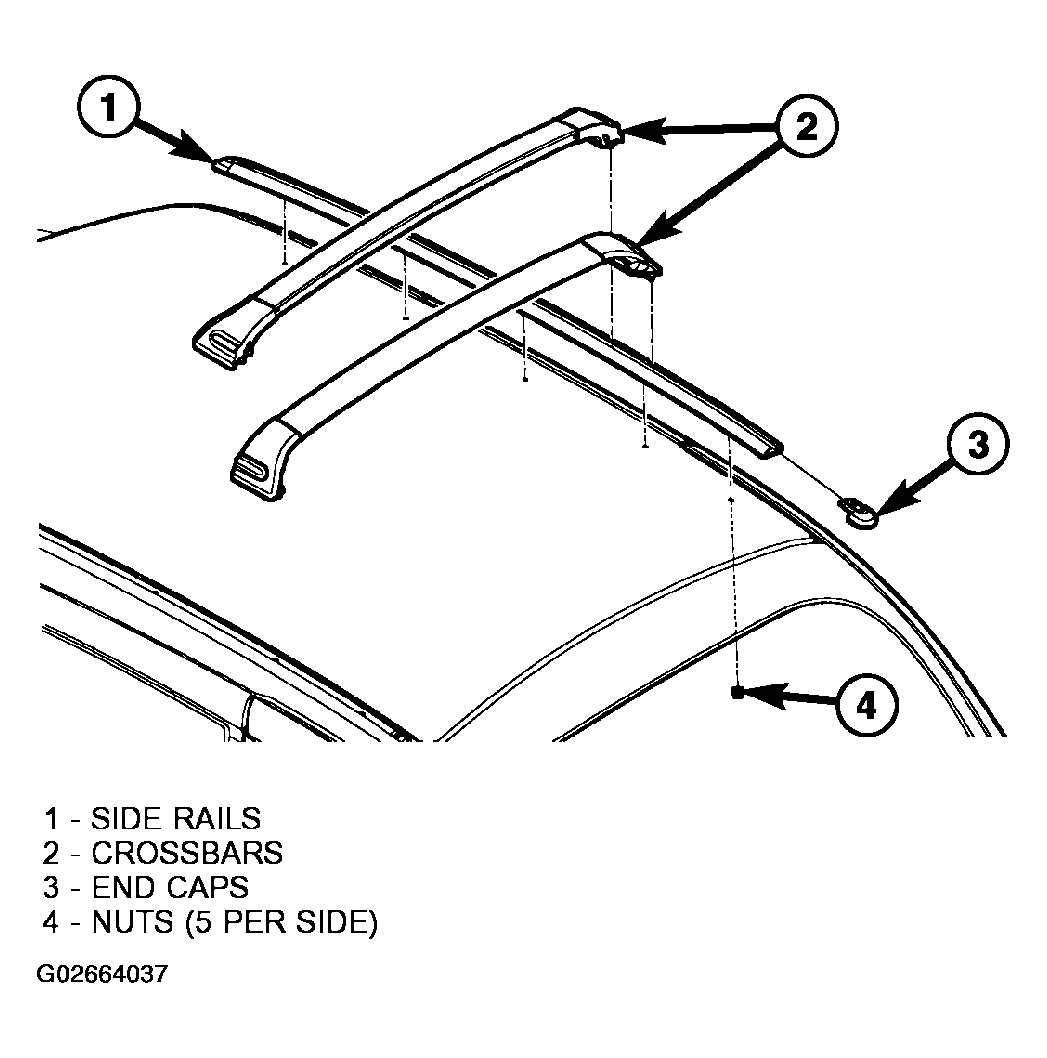

    Fig 1: Removing Luggage Rack
    G02664037Courtesy of DAIMLERCHRYSLER CORP.
  2. Release the cross bars and slide off the side rails.
