Interior/Exterior Trim: Exterior: Grille: Removal

  1. Open hood and support hood on prop rod.
  2. Remove screws attaching grille to radiator closure panel (Fig. Fig 1 ).

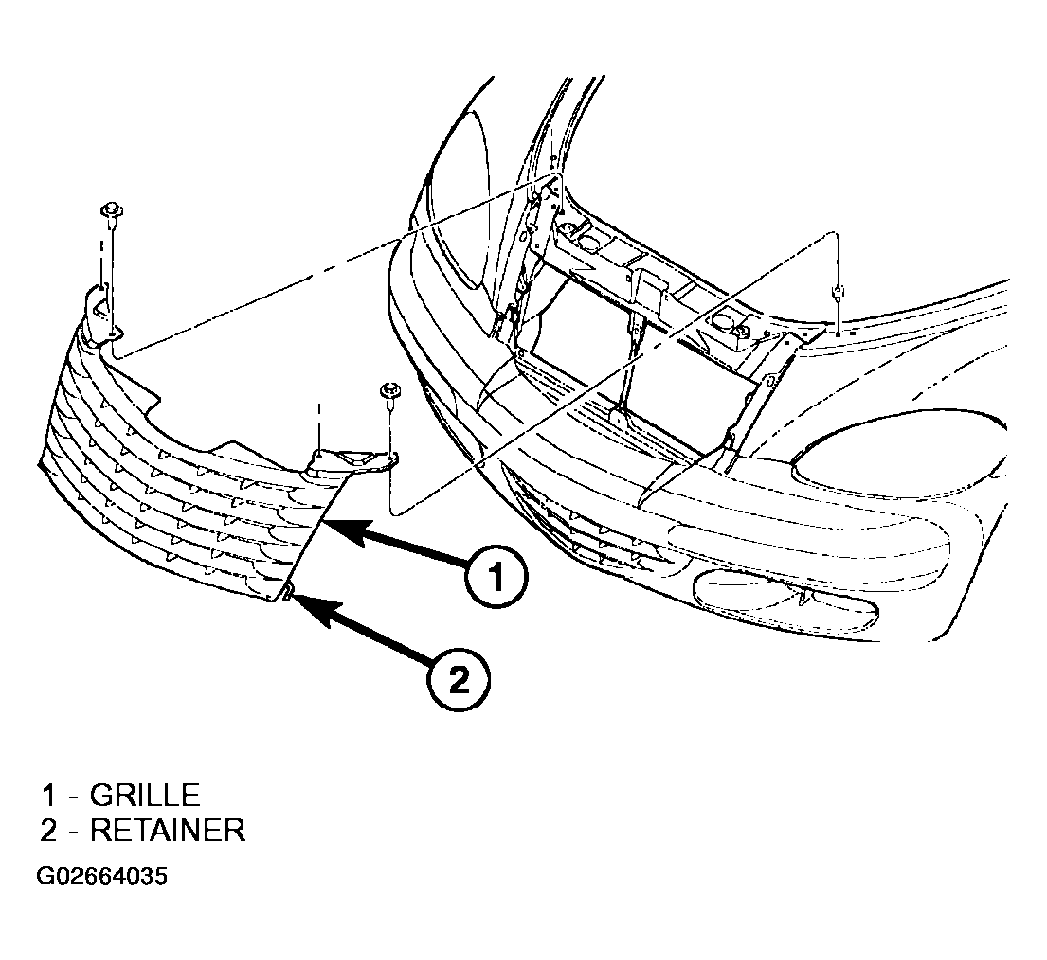

    Fig 1: Removing Grille
    G02664035Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull top of grille down and to disengage hooks from fender.
  4. Remove grille from vehicle.
