Fuel Fill Door: Removal

  1. Open the fuel filler door.
  2. Remove the screws attaching the door to the quarter panel (Fig. Fig 1 ).

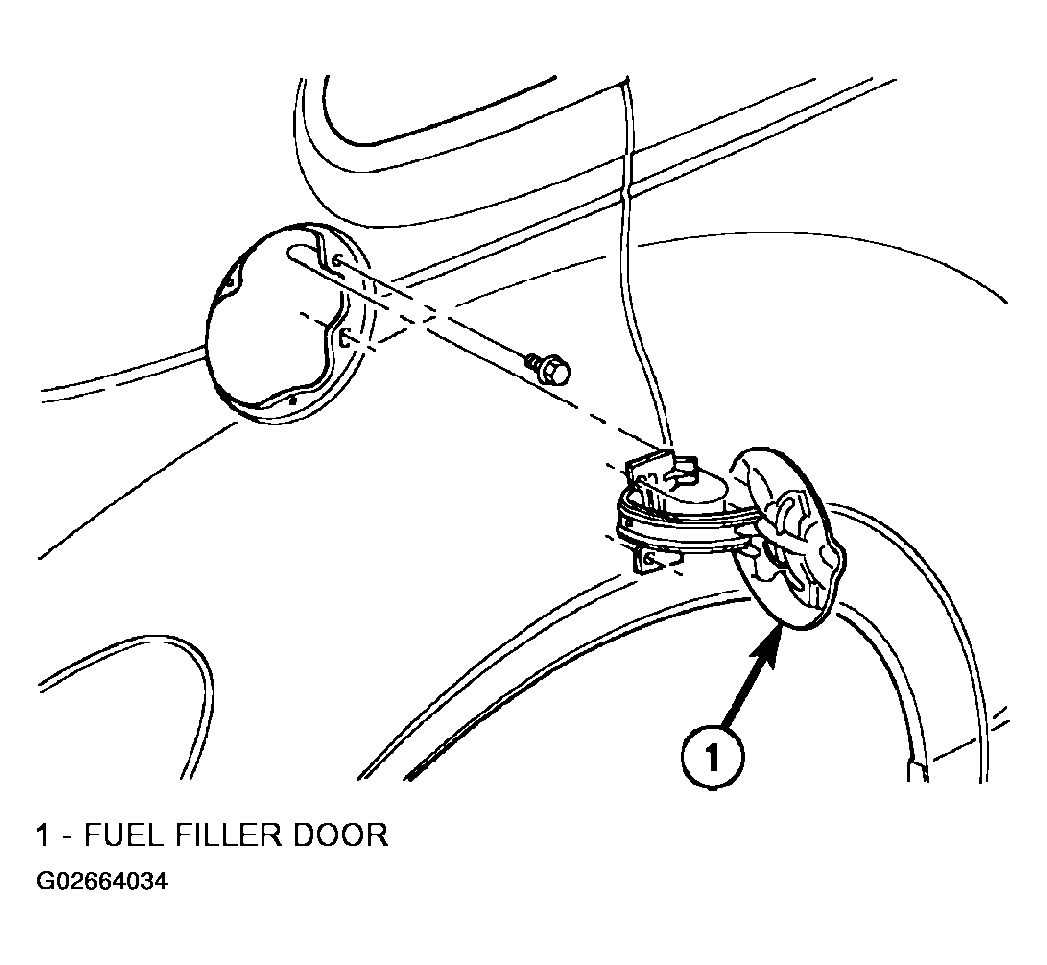

    Fig 1: Removing Fuel Filler Door
    G02664034Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the door from the panel.
