Front Wheelhouse Splash Shields: Removal

  1. Hoist and support vehicle on safety stands.
  2. Remove front wheel.
  3. Remove push-in fasteners attaching splash shield to frame rail forward of suspension (Fig. Fig 1 ).

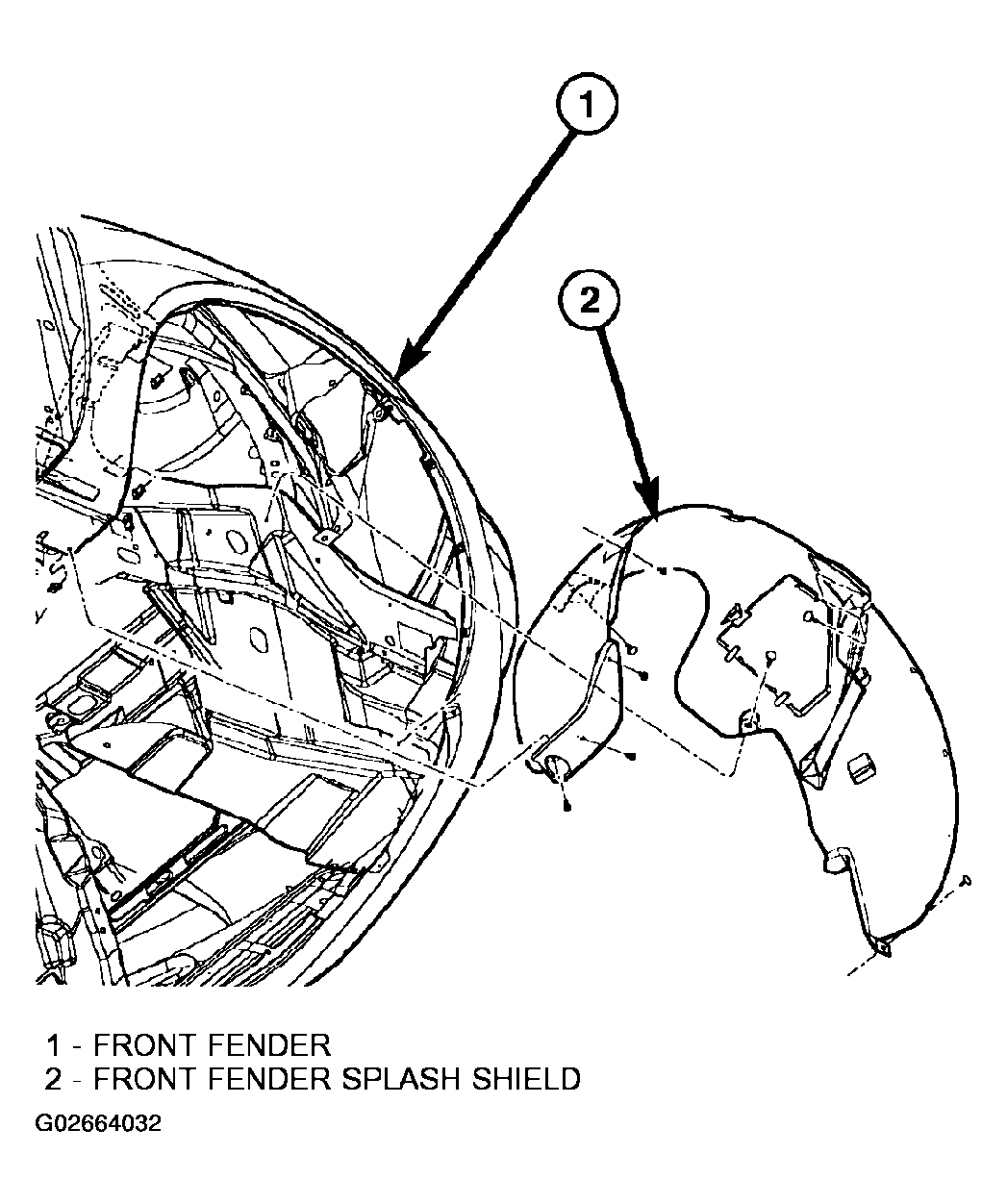

    Fig 1: Removing Front Wheelhouse Splash Shield
    G02664032Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove push in fasteners attaching splash shield to frame rail rearward of suspension.
  5. Remove screws attaching wheelhouse splash shield to front fender.
  6. Remove splash shield from vehicle.
