Cowl Grille Screen: Removal

  1. Remove wiper arms (Refer to WIPER/WASHER article).
  2. Open hood.
  3. Remove screws attaching right cowl grille screen (Fig. Fig 1 ).

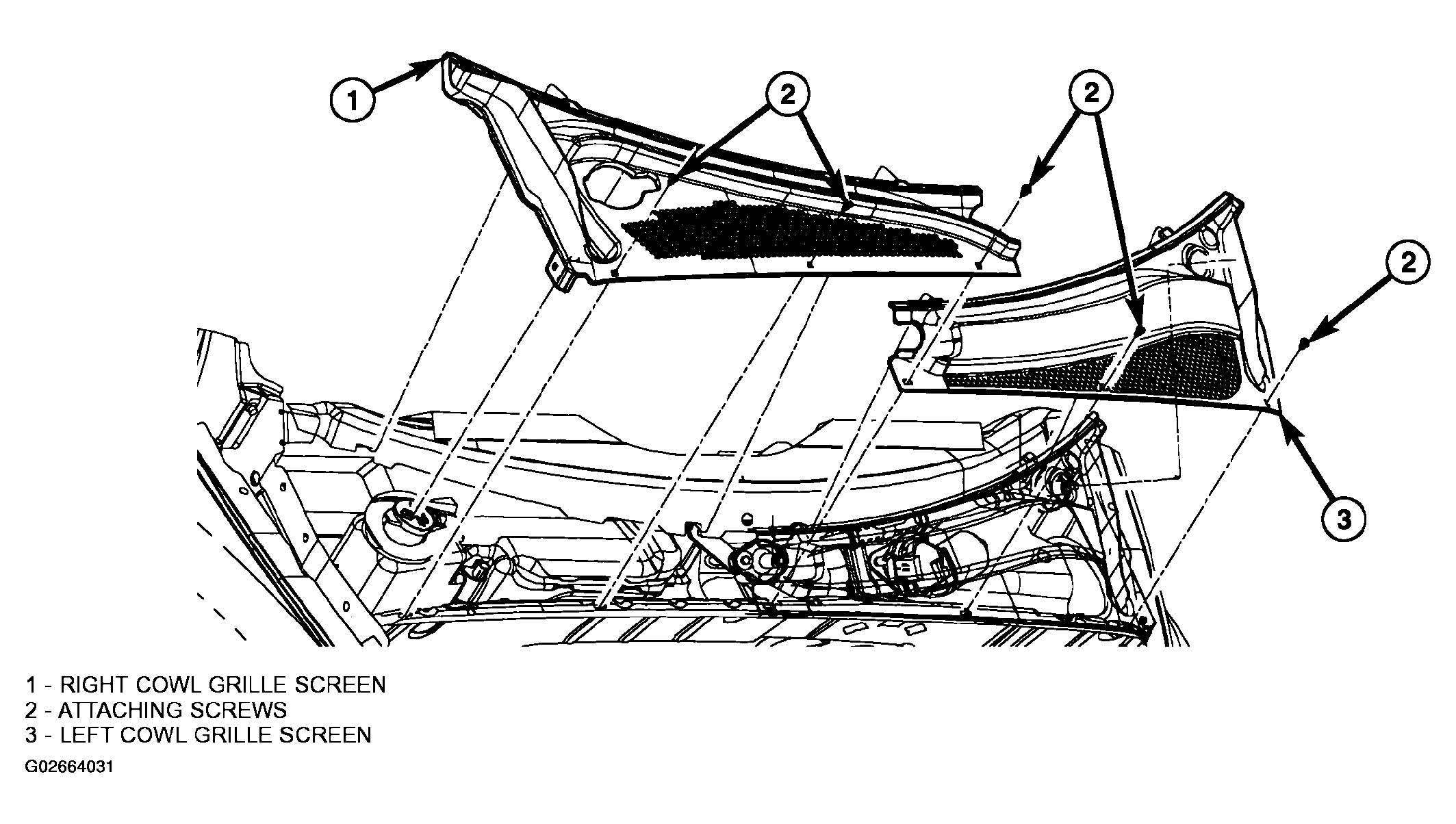

    Fig 1: Removing Cowl Grille Screen
    G02664031Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove right cowl grille screen from vehicle.
  5. Remove screws attaching left cowl grille screen.
  6. Remove left cowl grille screen from vehicle.
