Rear Door Trim Panel: Removal

  1. Release door latch and open door.
  2. Lower window glass.
  3. Remove screw from inside arm rest pull cup (Fig. Fig 1 ).

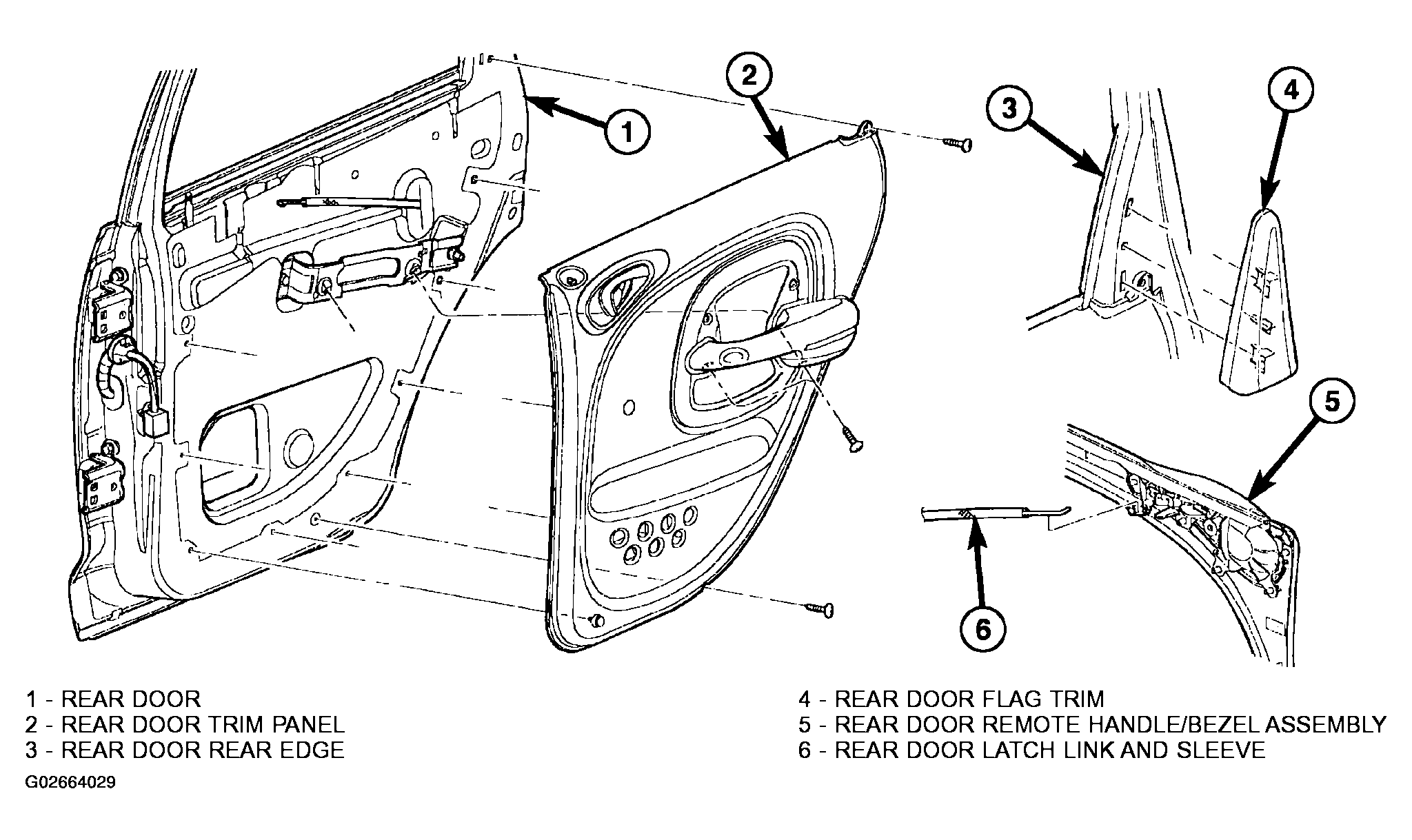

    Fig 1: Removing Rear Door Trim Panel
    G02664029Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove screw from behind inside latch release handle.
  5. Remove fasteners from door trim panel.
  6. Disengage push in fasteners attaching trim to door panel around perimeter of trim panel.
  7. Disengage push-in metal spring clip attaching trim in sail flag area.
  8. Lift trim panel up off belt weatherstrip.
  9. Tilt top of trim panel away from door and disengage clip attaching latch rod to handle.
  10. Remove latch rod from handle.
  11. Remove trim panel from door.
