Rear Door Outside Handle: Removal

  1. Remove door trim panel.
  2. Raise door glass.
  3. Disengage clips attaching linkage rods to door latch.
  4. Remove nuts attaching outside handle to door (Fig. Fig 1 ).

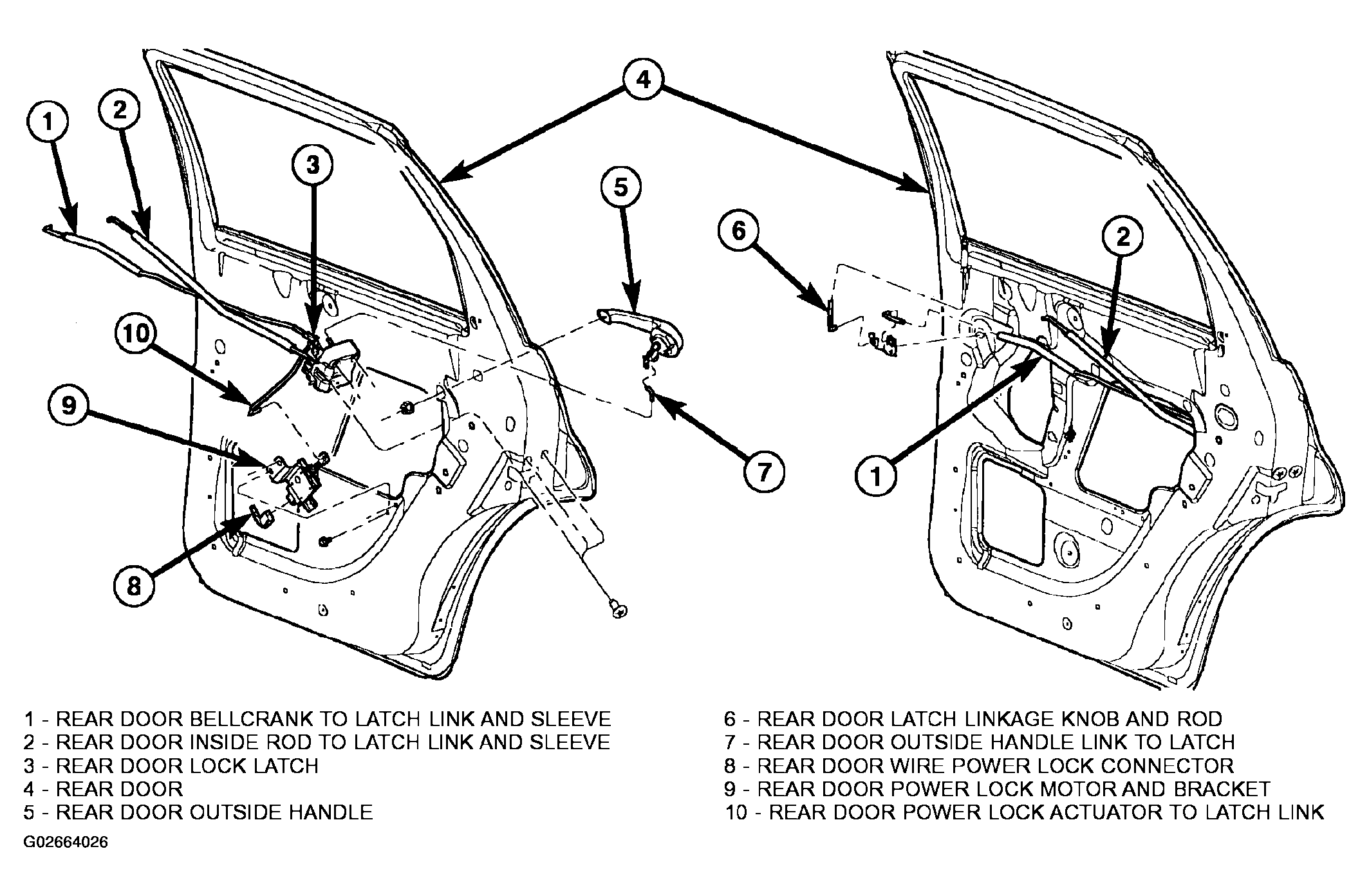

    Fig 1: Removing Rear Door Outside Handle
    G02664026Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove outside handle.
