Rear Door Latch: Removal

  1. Remove door trim panel.
  2. Raise door glass to full up position.
  3. Remove lower rear run channel.
  4. Disconnect clips attaching linkage rods to door latch.
  5. Remove linkage rods from latch (Fig. Fig 1 ).

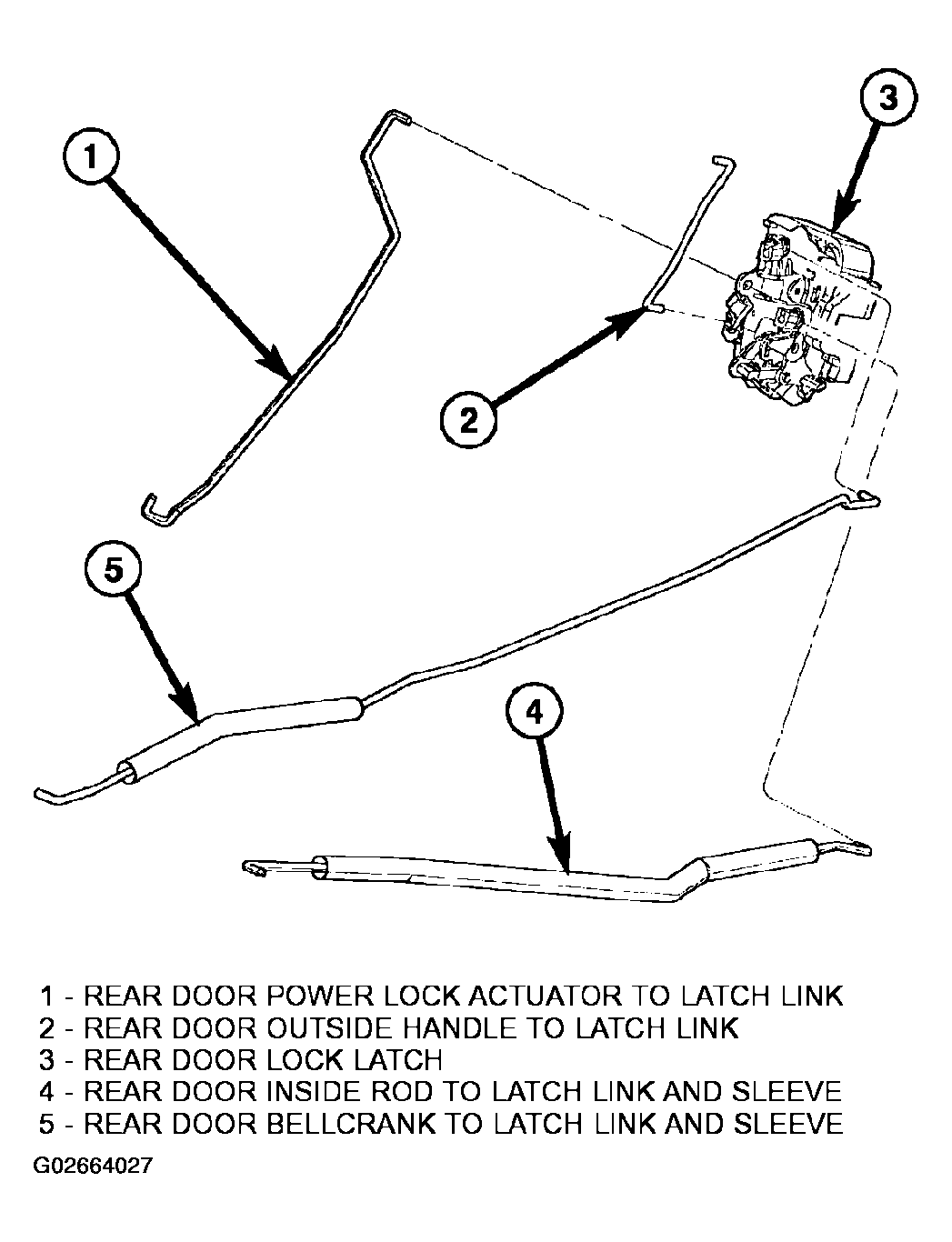

    Fig 1: Removing Linkage Rods From Rear Door Latch
    G02664027Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove screws attaching latch to door end frame
  7. Remove door latch from vehicle.
