Rear Door Glass: Removal
- Remove door trim panel and inner belt weatherstrip.
- Lower the window to 50 mm (2 ins.) from bottom of travel.

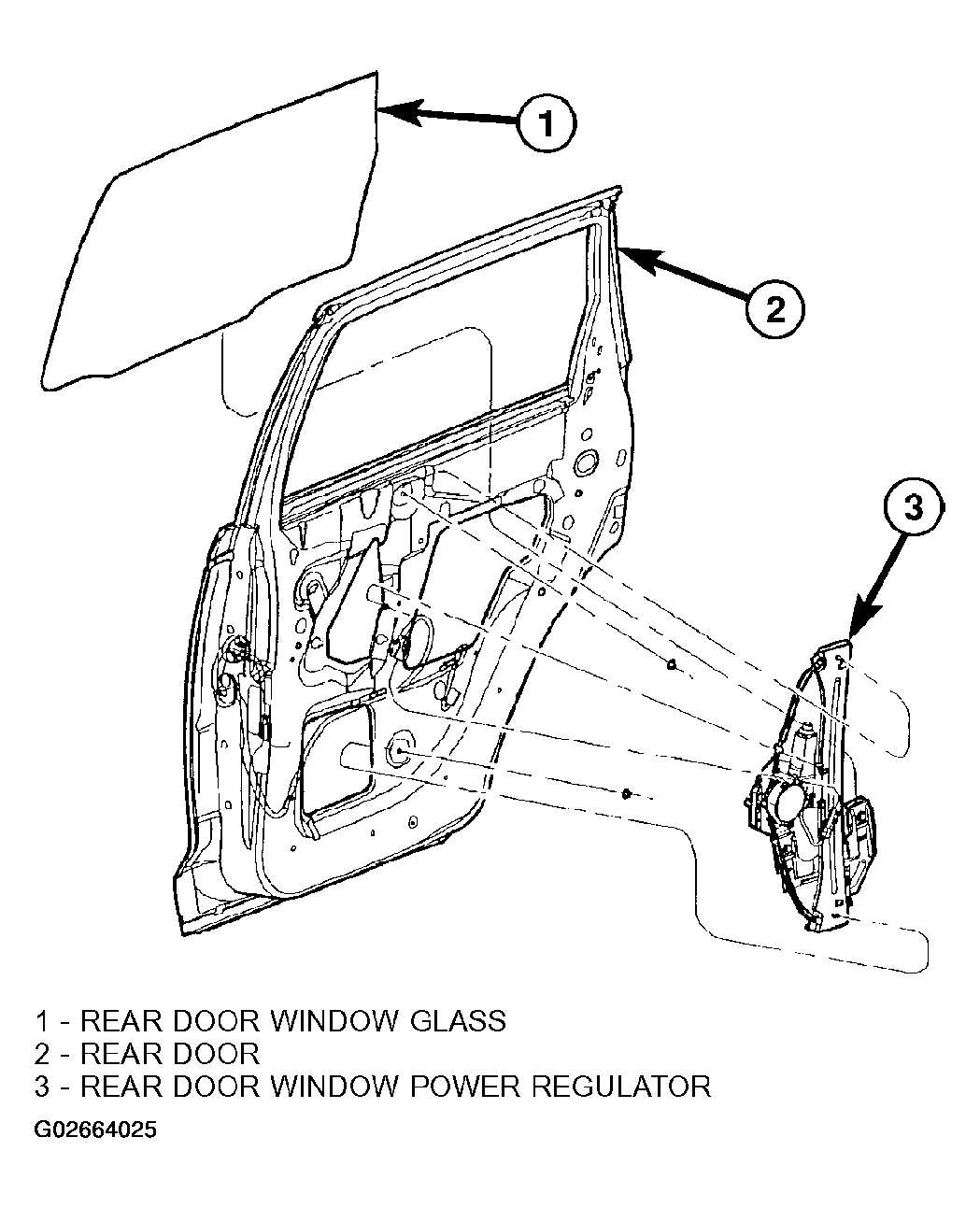

- Loosen bolts attaching rear lower run channel to inner door panel (Fig. Fig 1 ).
- Remove rear run channels from door.
- Loosen screws attaching window regulator to glass.
- Remove glass.
- Lift door glass upward out of the opening at the top of door.
