Rear Door Check Strap: Removal

  1. Raise glass to full up position.
  2. Remove door trim panel.
  3. Remove bolts attaching check strap to hinge pillar (Fig. Fig 1 ).

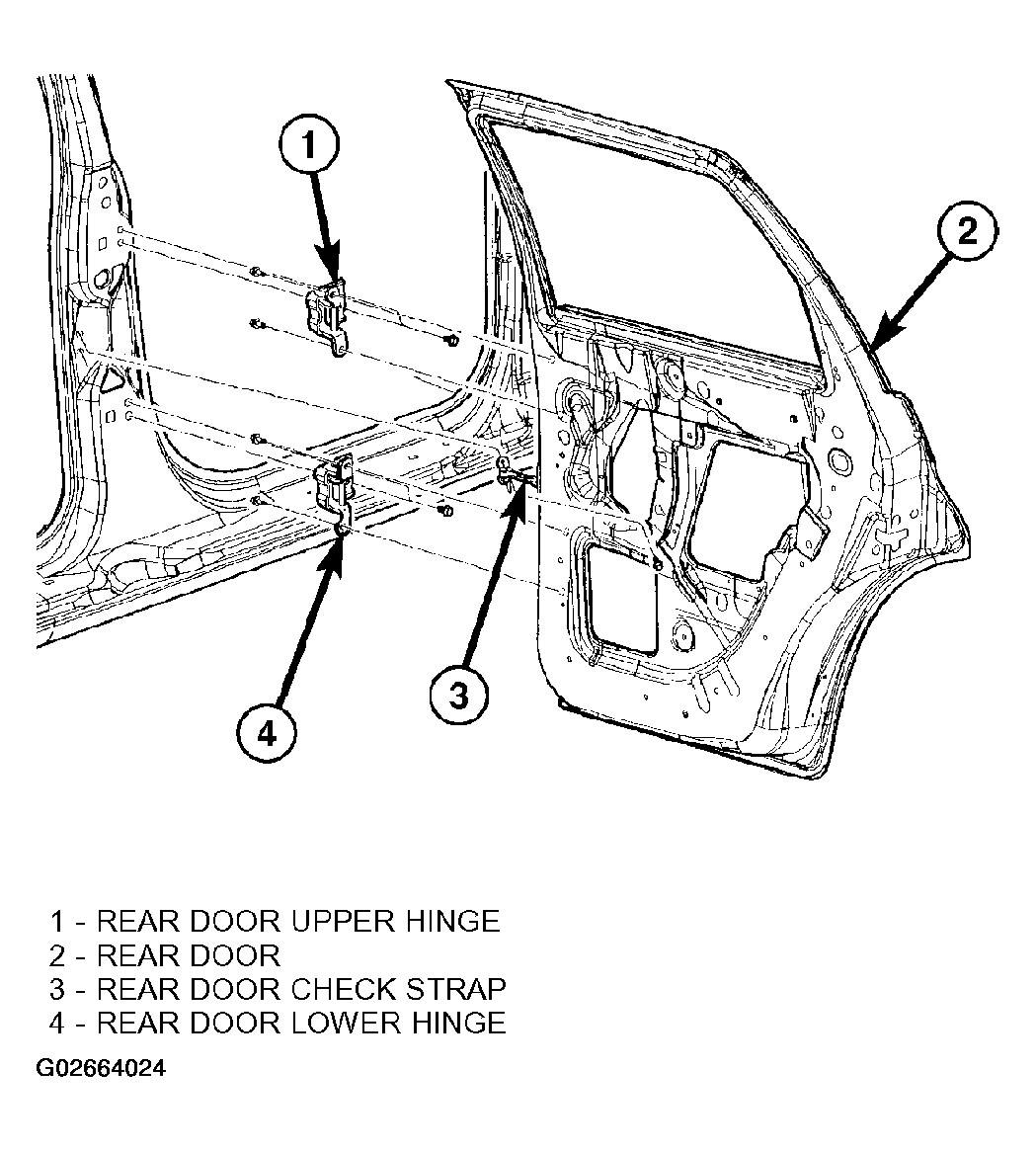

    Fig 1: Removing Rear Door Check Strap
    G02664024Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove check strap seal from door end frame.
  5. Remove bolts attaching check strap to door end frame.
  6. Remove check strap from vehicle.
