Front Door Water Dam: Removal

  1. Remove door trim panel.
  2. Remove door speaker, if equipped.
  3. Remove armrest to inner panel bracket.
  4. Disconnect outside power mirror and power window regulator connectors, if equipped.
  5. Peel water dam away from adhesive around perimeter of inner door panel (Fig. Fig 1 ).

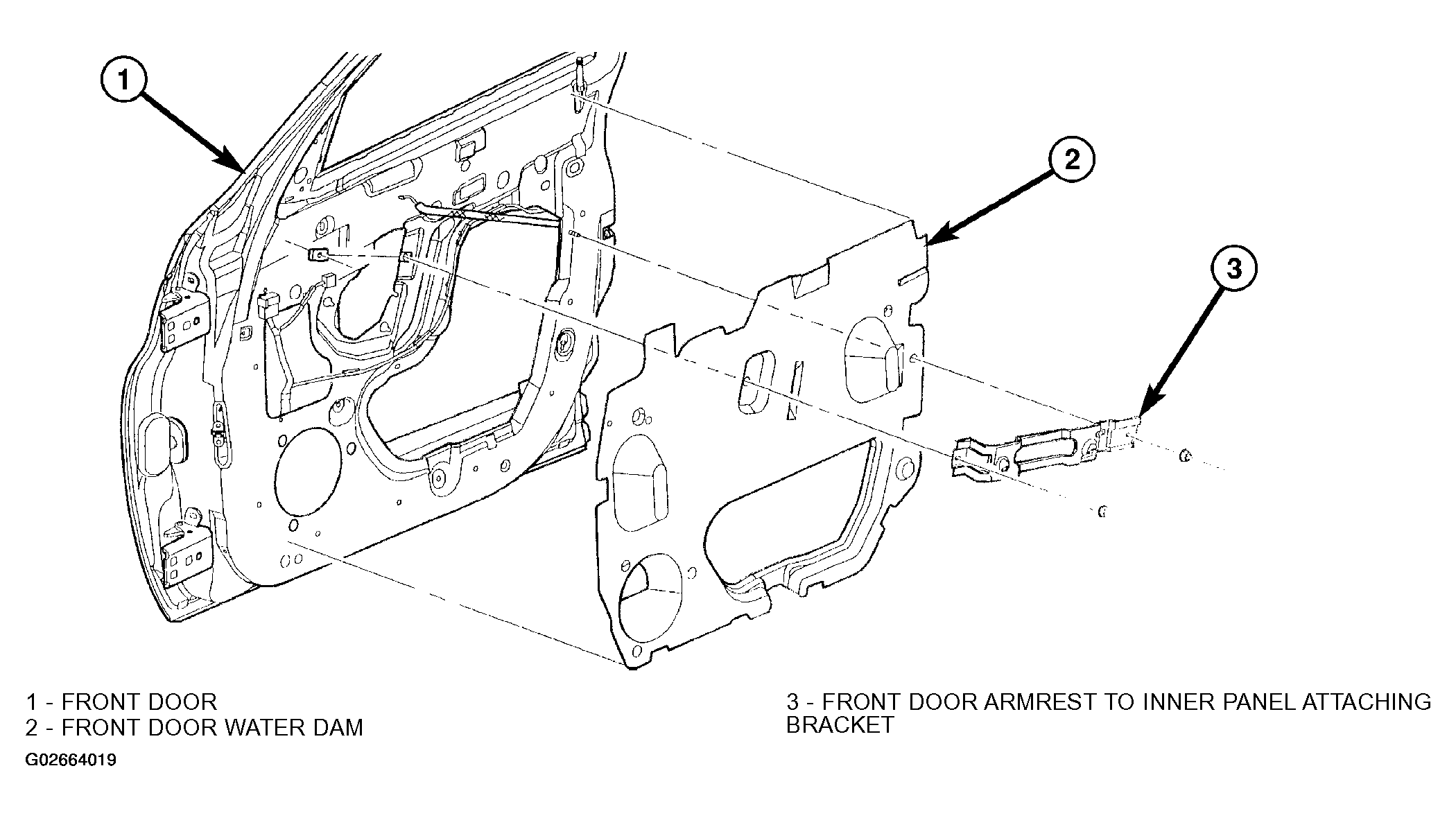

    Fig 1: Identifying Water Dam
    G02664019Courtesy of DAIMLERCHRYSLER CORP.
