Symptom: VEHICLE BODY STYLE MISMATCH: Testing

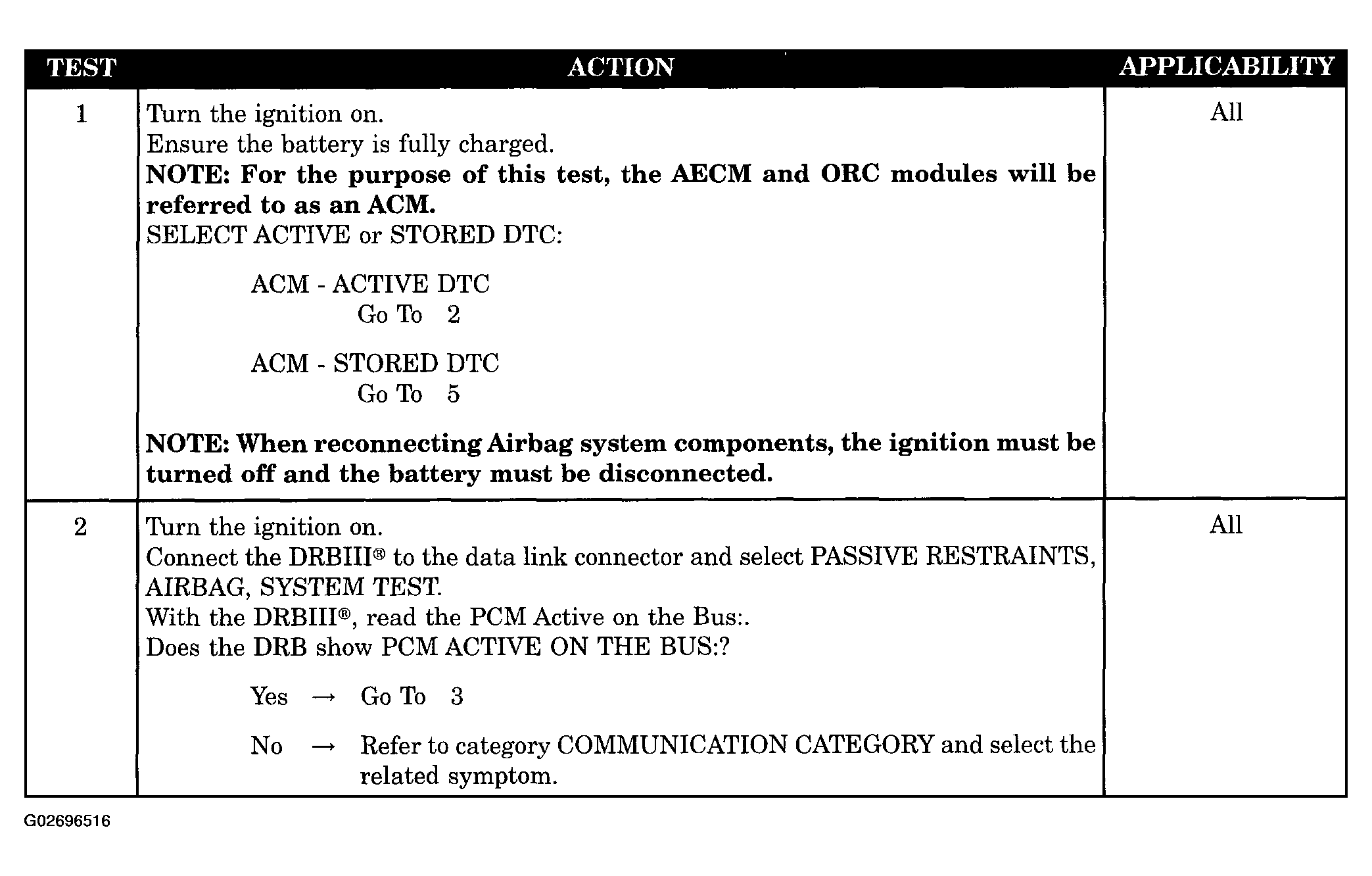

Fig 1: Testing Vehicle Body Style Mismatch (1 Of 2)
G02696516Courtesy of DAIMLERCHRYSLER CORP.

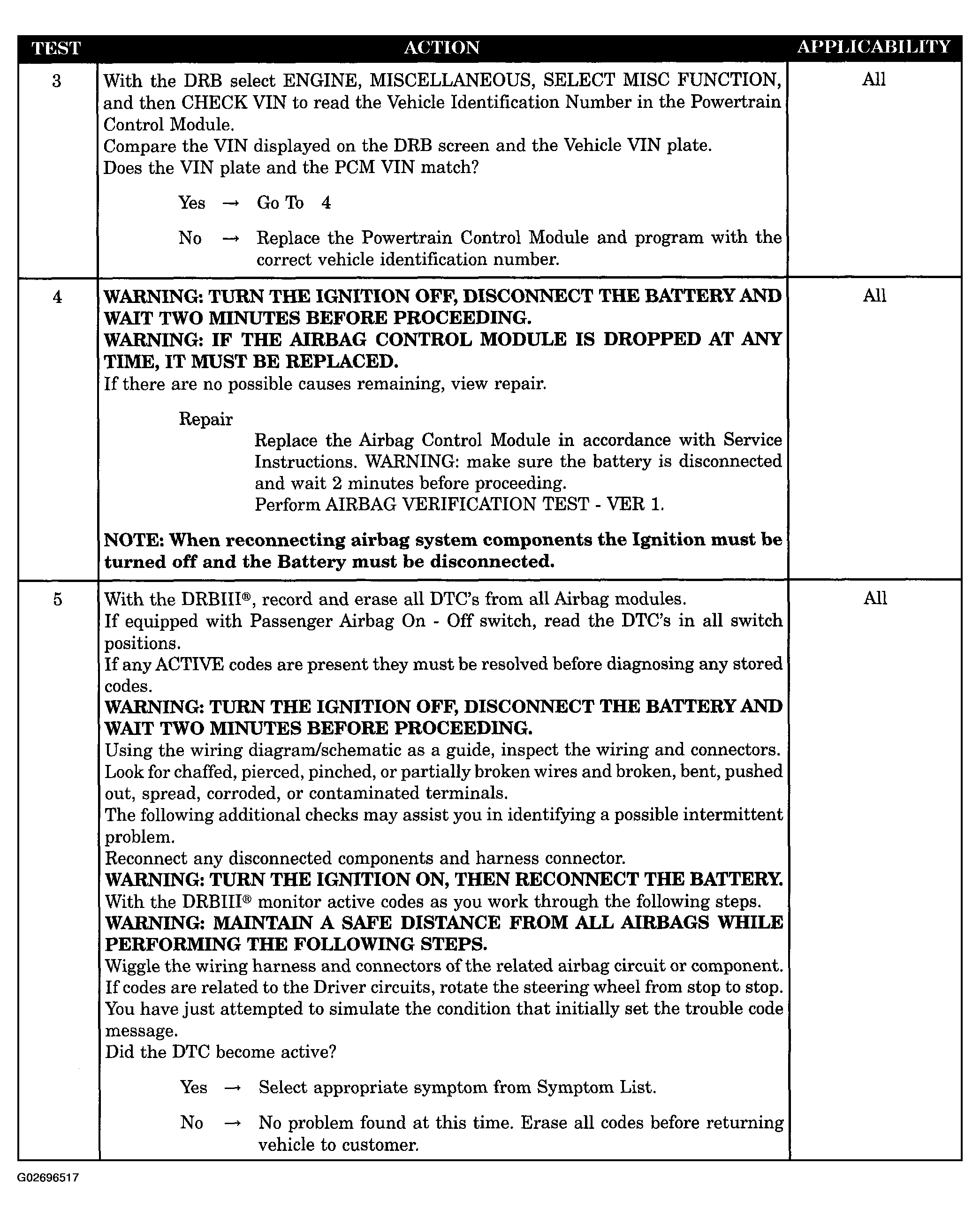

Fig 2: Testing Vehicle Body Style Mismatch (2 Of 2)
G02696517Courtesy of DAIMLERCHRYSLER CORP.
