Symptom: LOSS OF IGNITION RUN ONLY: Testing

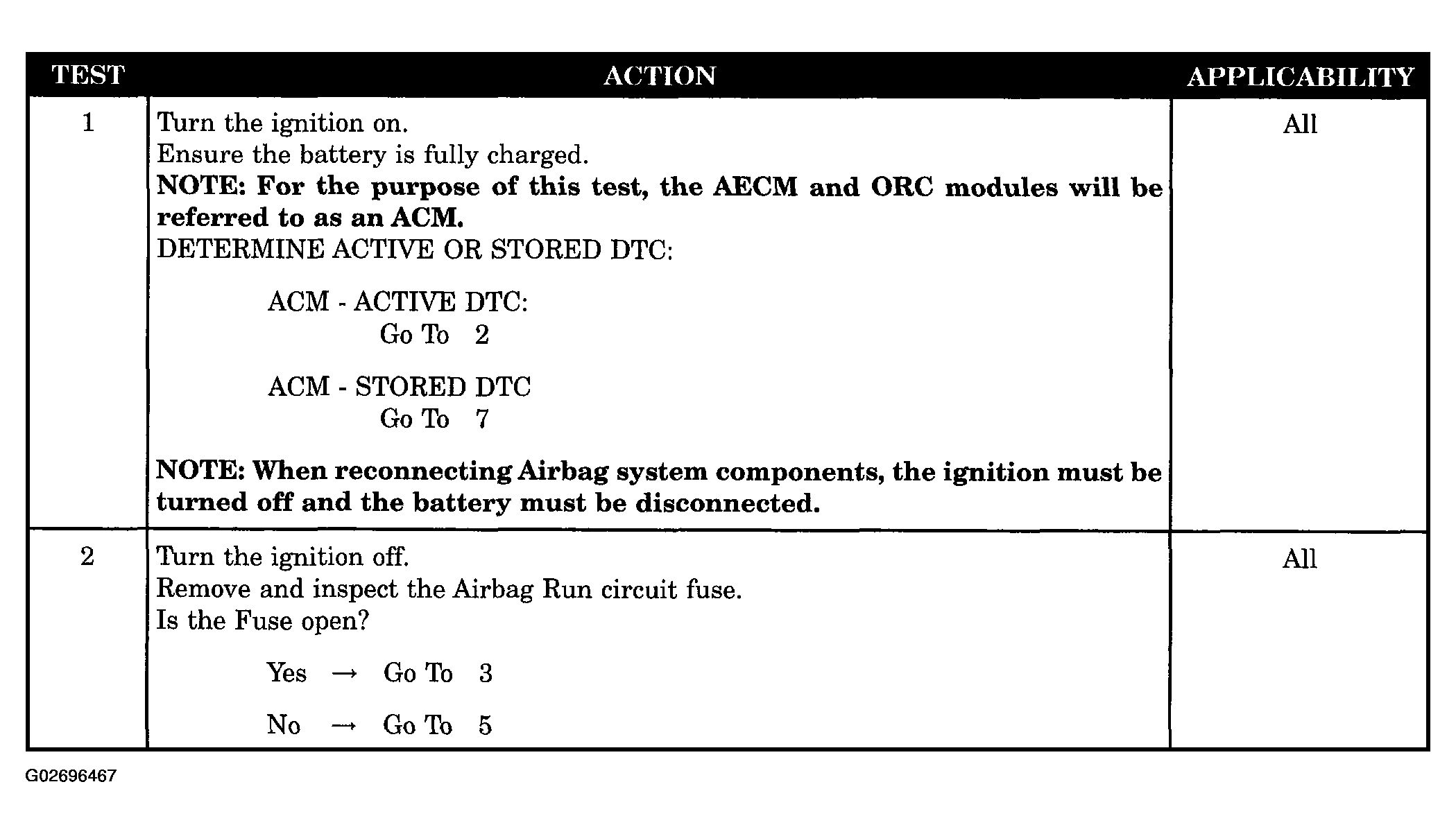

Fig 1: Testing Loss Of Ignition Run Only (1 Of 3)
G02696467Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Testing Loss Of Ignition Run Only (2 Of 3)
G02696468Courtesy of DAIMLERCHRYSLER CORP.

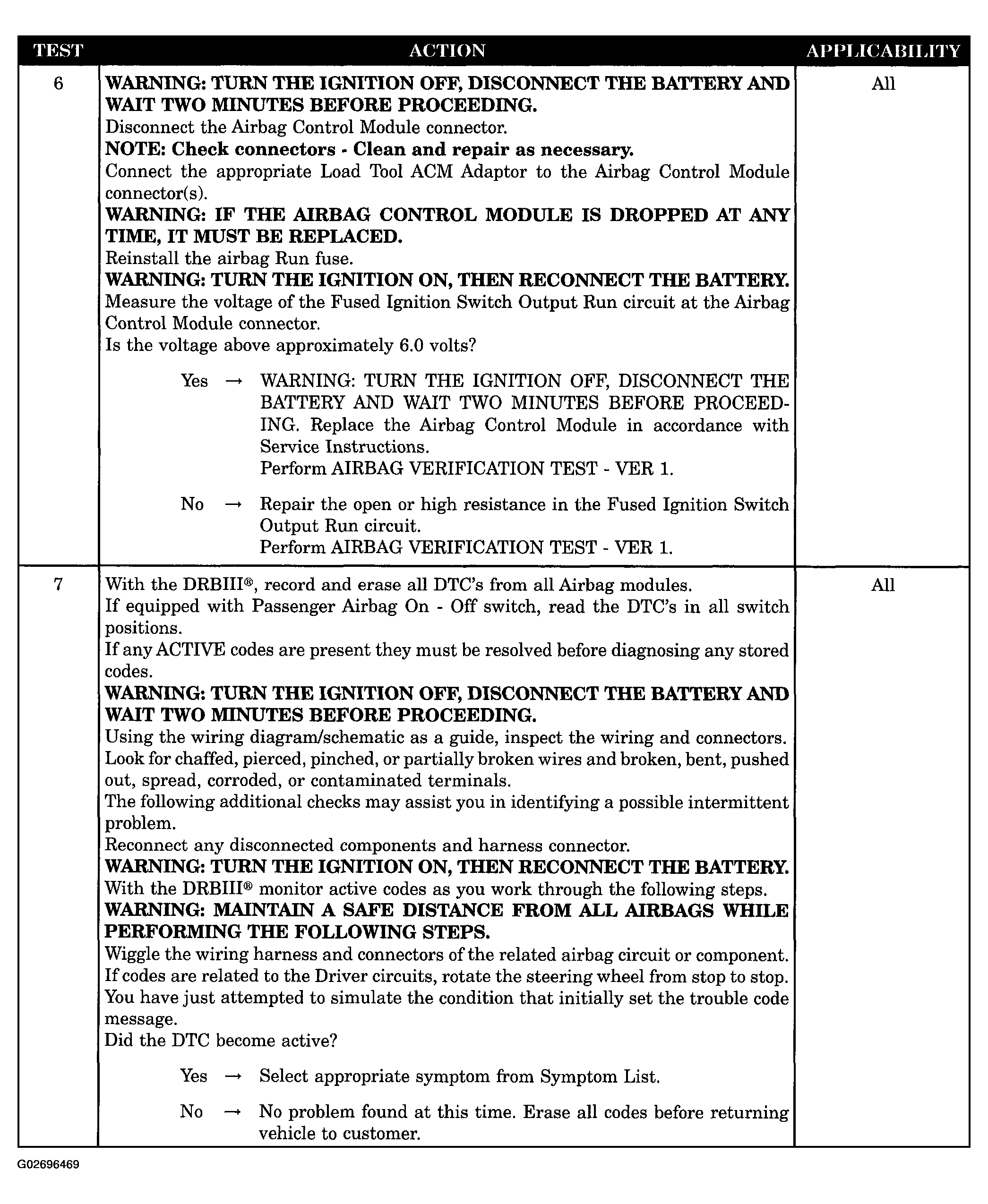

Fig 3: Testing Loss Of Ignition Run Only (3 Of 3)
G02696469Courtesy of DAIMLERCHRYSLER CORP.
