Hood Hinge Ground Strap

  1. Disconnect and isolate the battery negative cable.
  2. Remove bolt from fender (Fig 1 ).

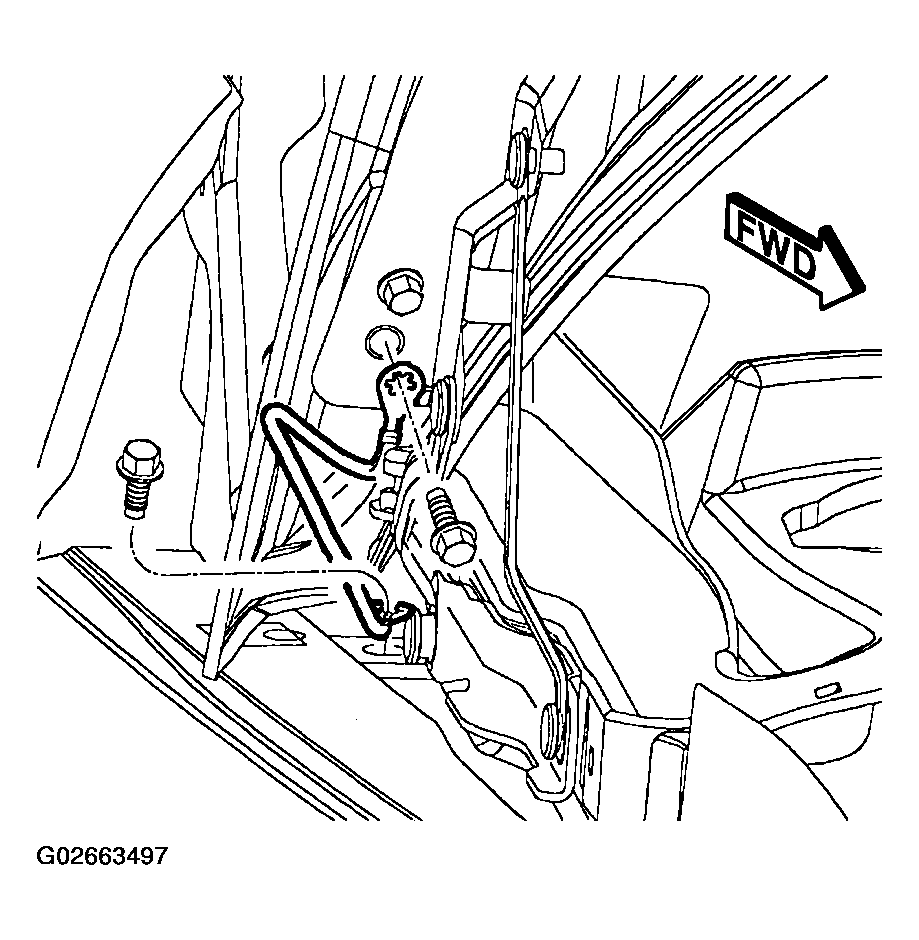

    Fig 1: Removing Bolt From Fender
    G02663497Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove bolt from hood and remove strap.
