Antenna Cable - Satellite Radio: Removal
- Disconnect and isolate the battery negative cable.
- Remove the D-pillar trim panel (Refer to
BODY/INTERIOR/D-PILLAR TRIM - REMOVAL
).
- Remove the left rear quarter trim panel (Refer to
BODY/INTERIOR/LEFT QUARTER TRIM PANEL - REMOVAL
).
- Lower the rear portion of the headliner as necessary to access the underside of the satellite antenna (Refer to
BODY/INTERIOR/HEADLINER - REMOVAL
).

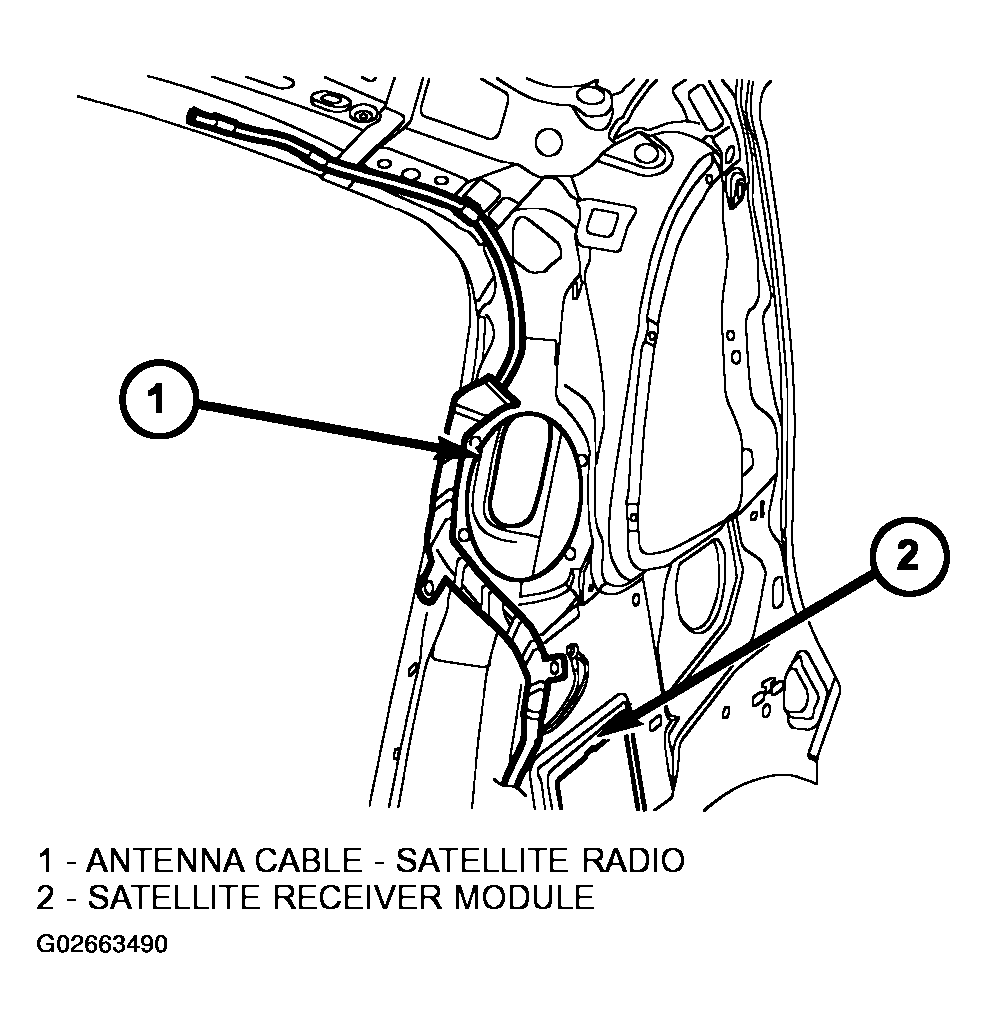

- Detach the antenna cable from the body harness (Fig 1
). Disconnect wire harness connectors at each end of the cable.
Courtesy of DAIMLERCHRYSLER CORP.
