Symptom: *TEMPERATURE DISPLAY INOPERATIVE OR WRONG: Testing

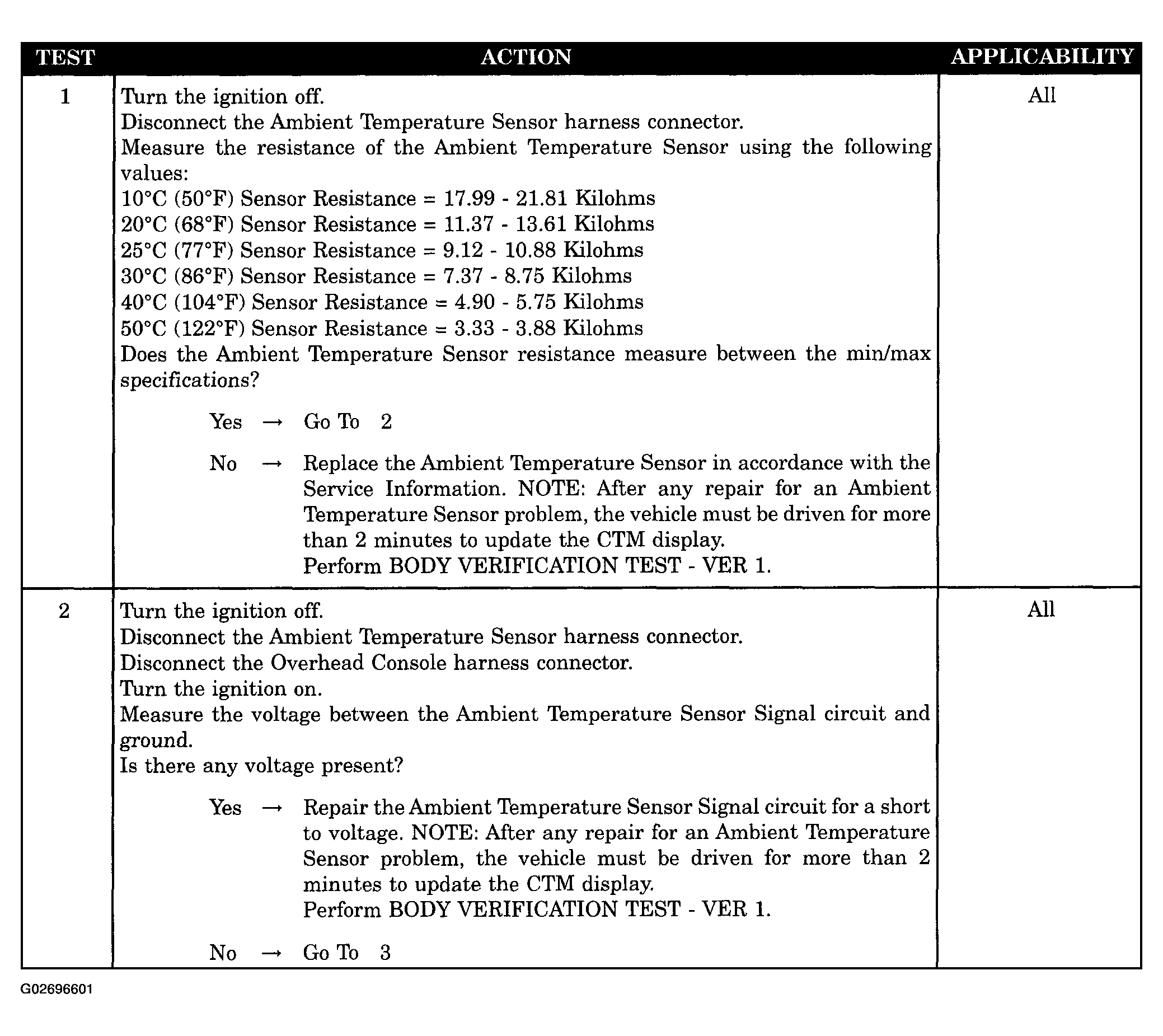

Fig 1: Testing Temperature Display Inoperative Or Wrong (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

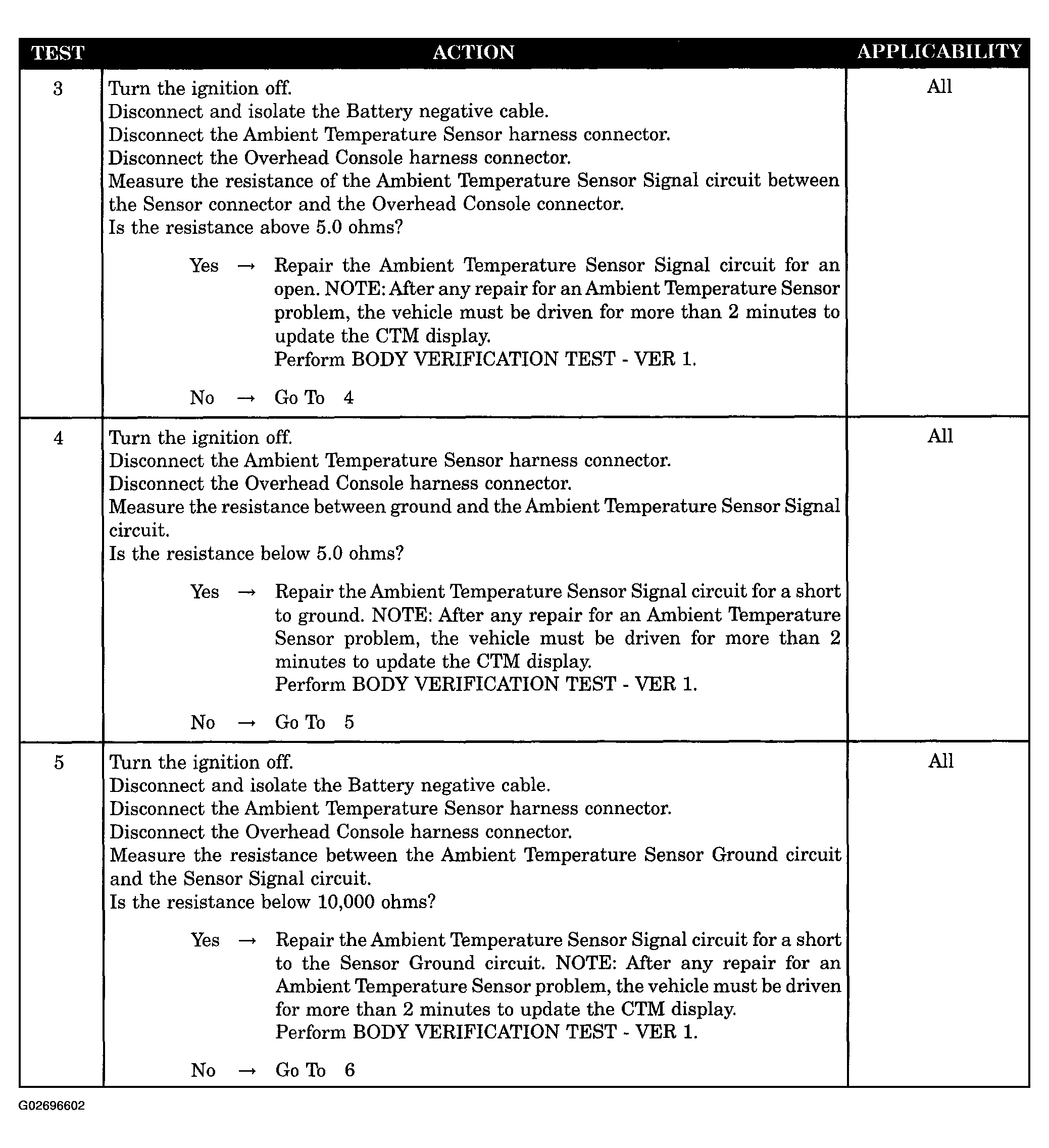

Fig 2: Testing Temperature Display Inoperative Or Wrong (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

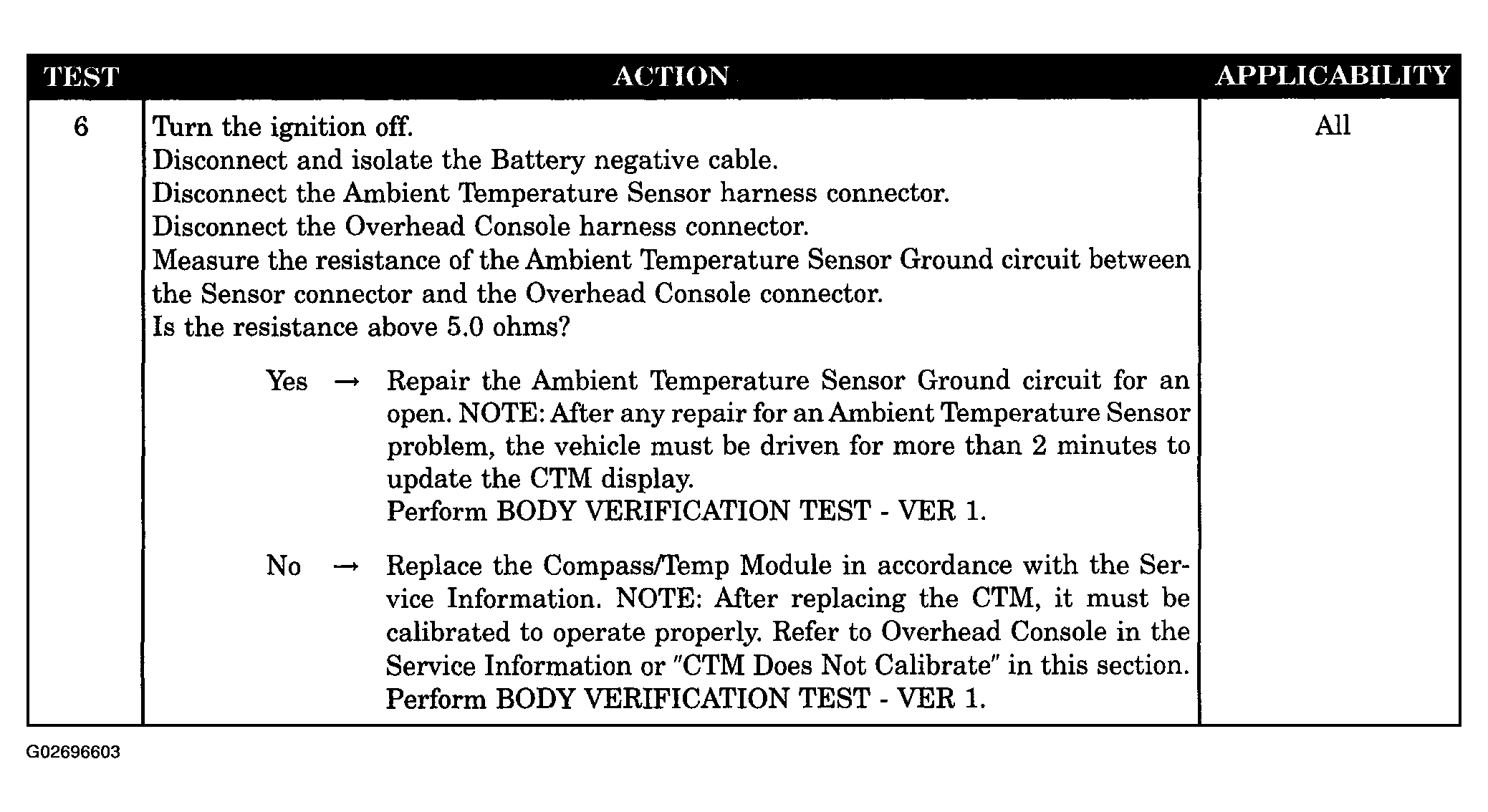

Fig 3: Testing Temperature Display Inoperative Or Wrong (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
