Symptom: *SEAT BELT INDICATOR NOT OPERATING PROPERLY: Testing

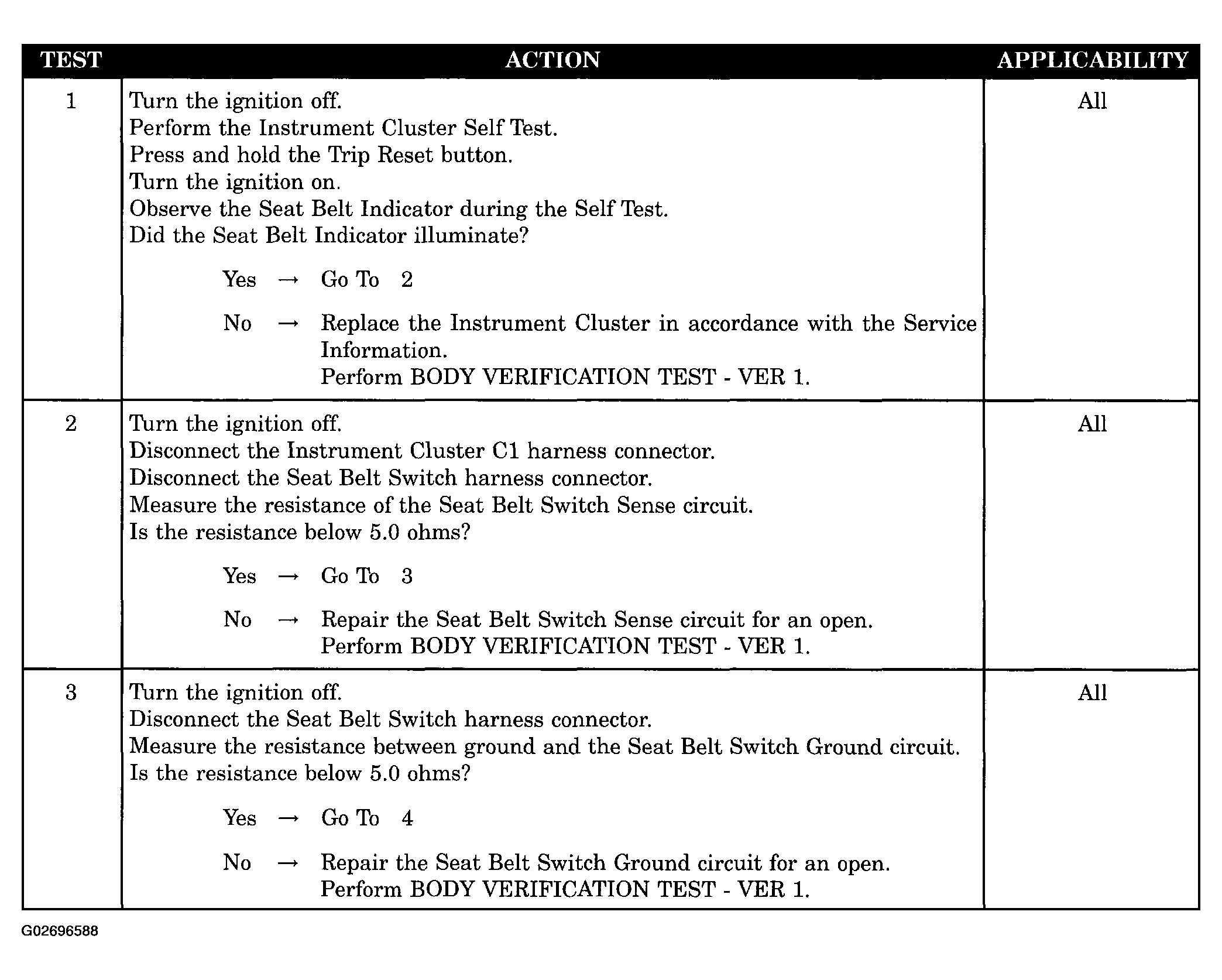

Fig 1: Testing Seat Belt Indicator Not Operating Properly (1 Of 2)
G02696588Courtesy of DAIMLERCHRYSLER CORP.

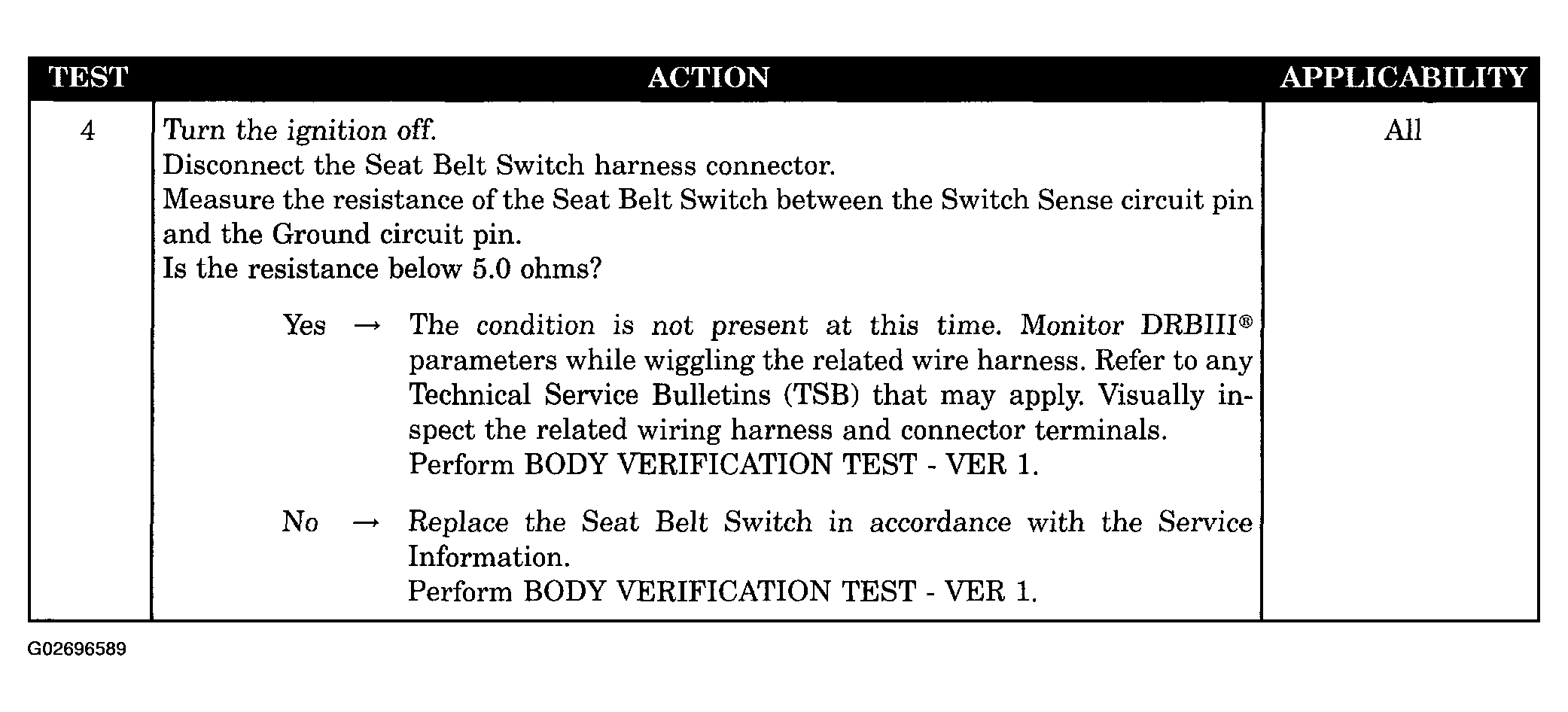

Fig 2: Testing Seat Belt Indicator Not Operating Properly (2 Of 2)
G02696589Courtesy of DAIMLERCHRYSLER CORP.
