Side Repeater Lamp Unit - Export: Removal

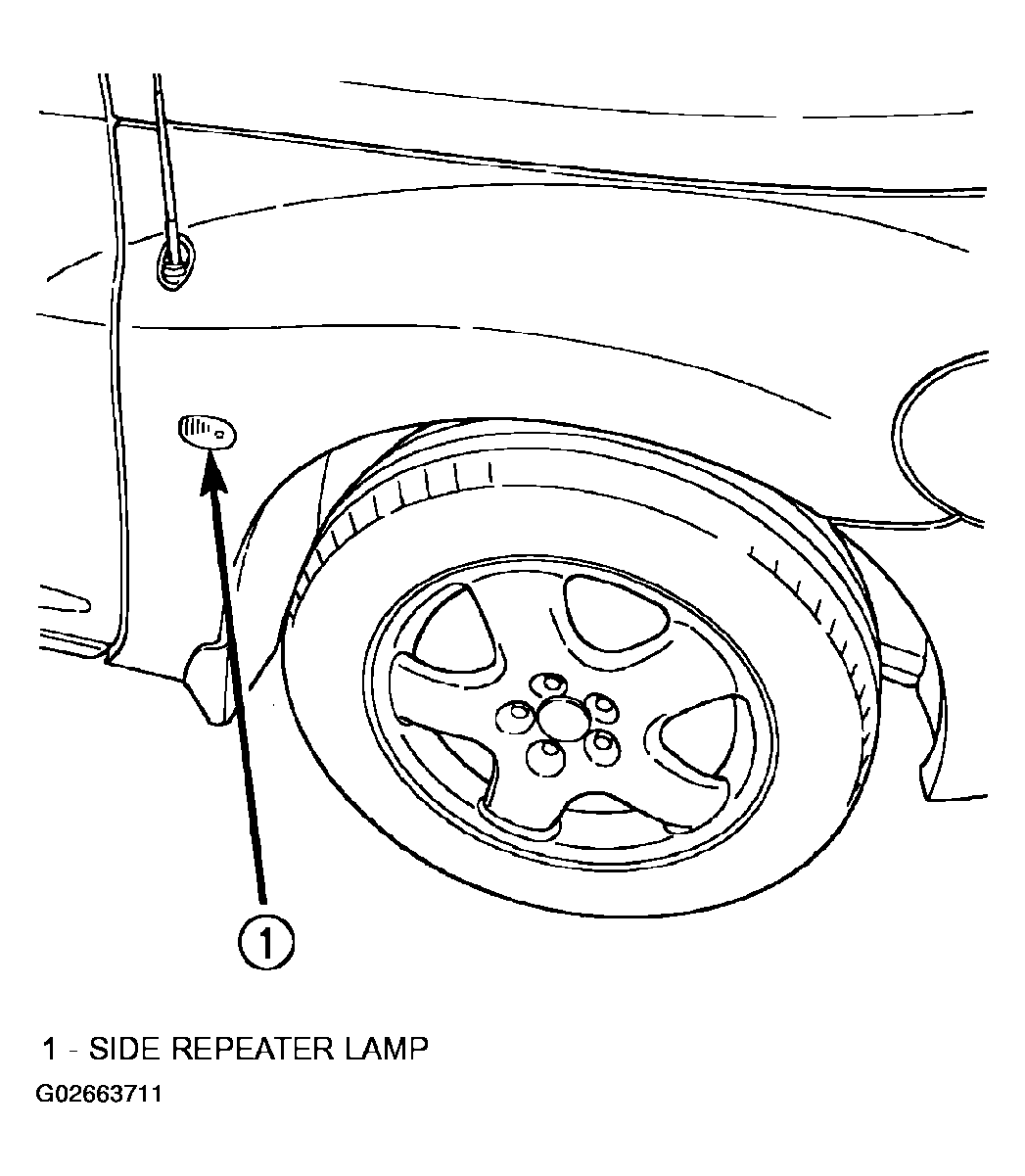

  1. Remove the appropriate front wheel well splash shield retaining screws. Reaching through wheel well, depress side repeater lamp retaining tabs and release from front fender (Figure ).
  2. Pull side repeater lamp out and disengage bulb socket from lamp.
