Park/Turn Signal Lamp: Installation

  1. Connect wire connector to the back of front side marker/park/turn signal lamp.

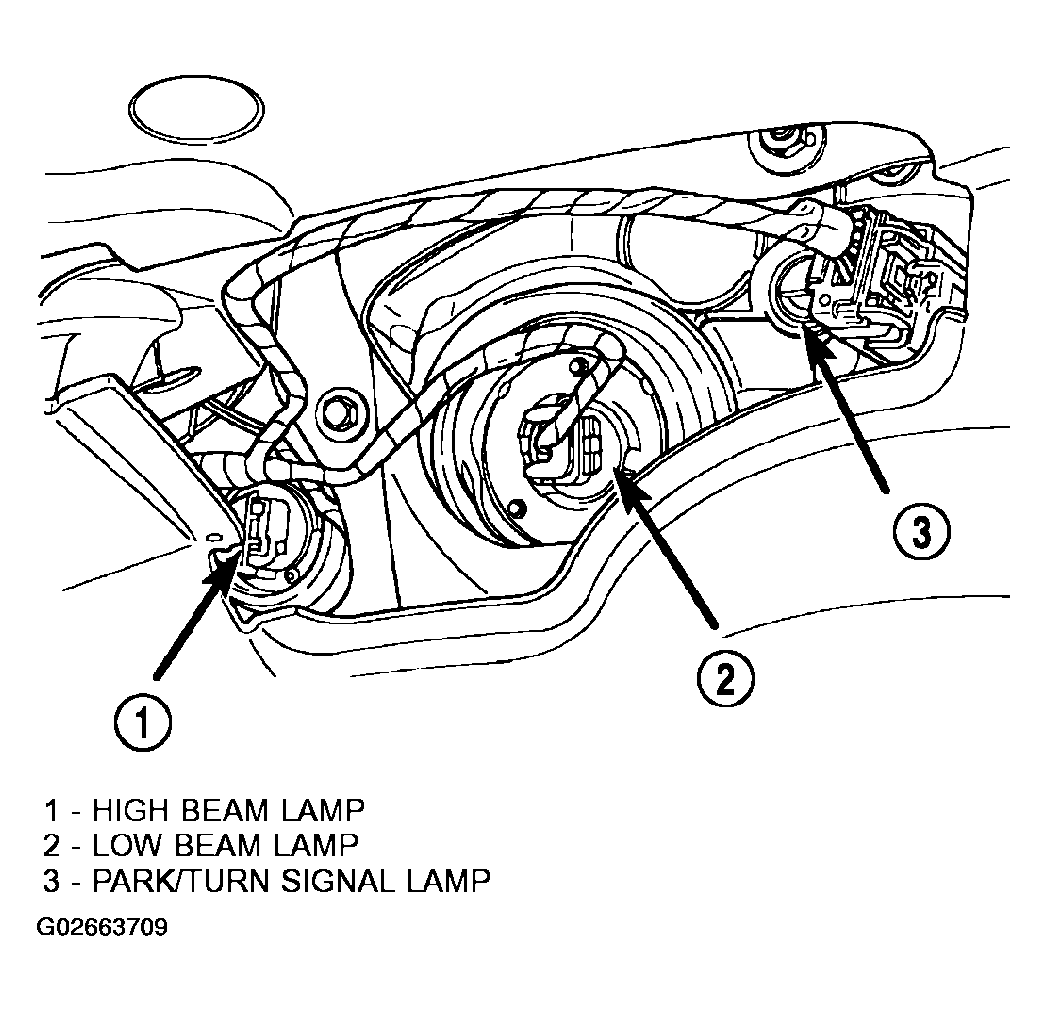

  2. Install bulb into headlamp unit (Figure )
  3. Rotate socket clockwise one quarter turn.
  4. Test operation of lamps.
  5. Install headlamp access cover into splash shield.
