License Plate Lamp: Removal

  1. Remove screws attaching license plate lamp to rear bumper (Fig 1 ).

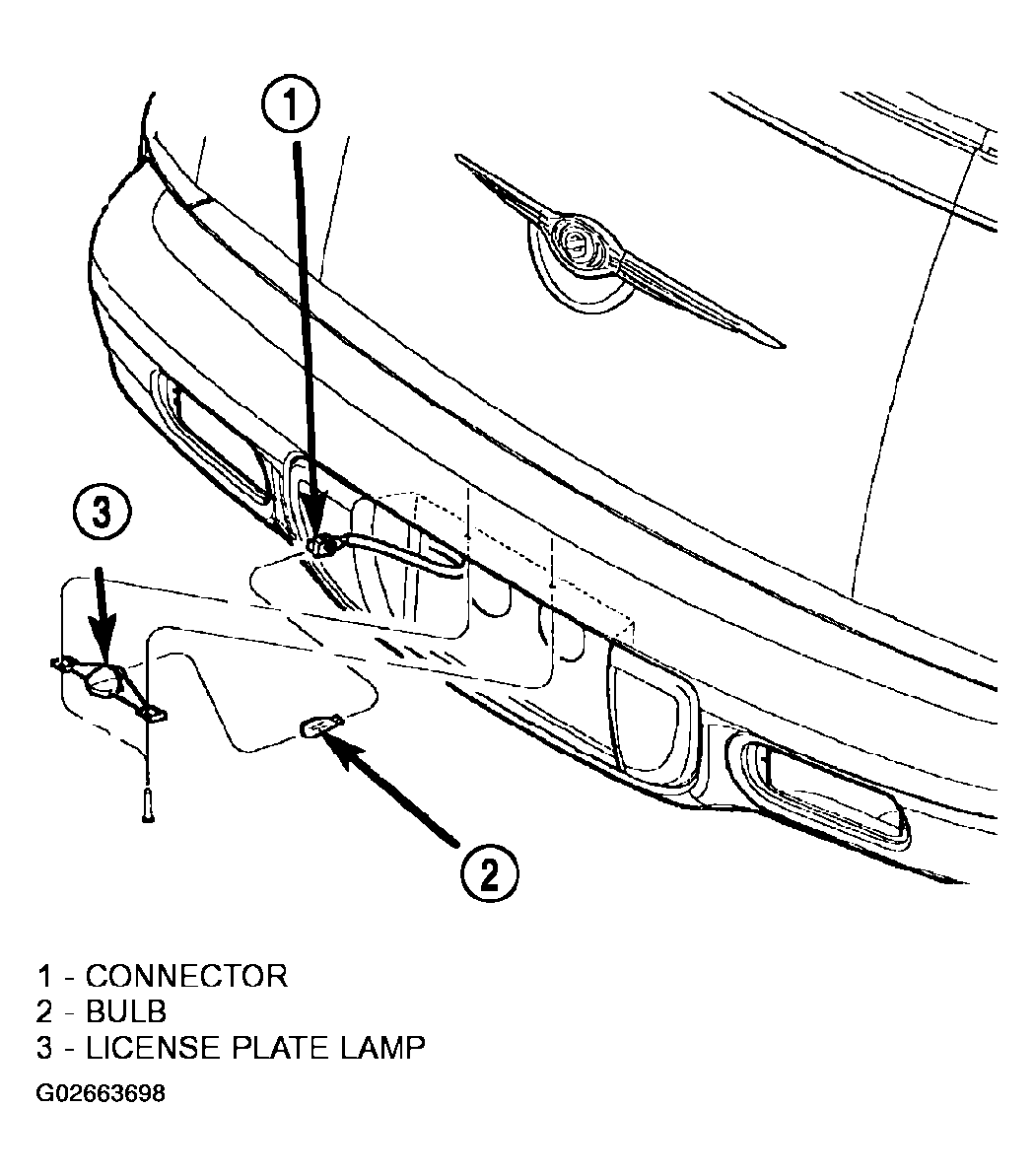

    Fig 1: Removing/Installing License Plate Lamp
    G02663698Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove lamp from bumper.
  3. Remove bulb socket from lamp housing.
  4. Pull bulb from socket.
