Lighting Systems - Exterior: Headlamp: Installation
CAUTION:
Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.
- Connect wire connector to the back of headlamp high or low beam bulb.

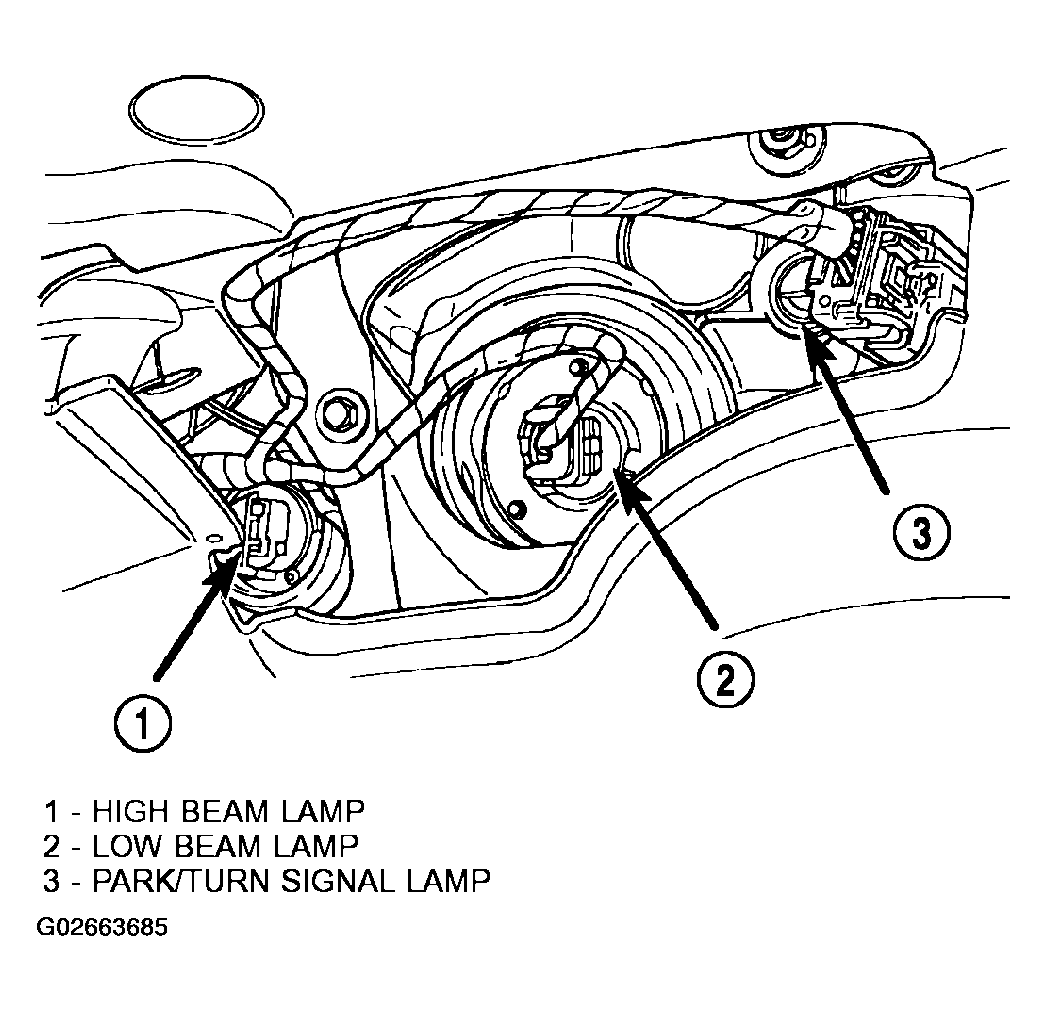

- Install bulb into headlamp housing (Figure ).
- Rotate socket clockwise one quarter turn.
- Test operation of lamps.
- Install headlamp access cover into splash shield.
