Headlamp Diagnosis

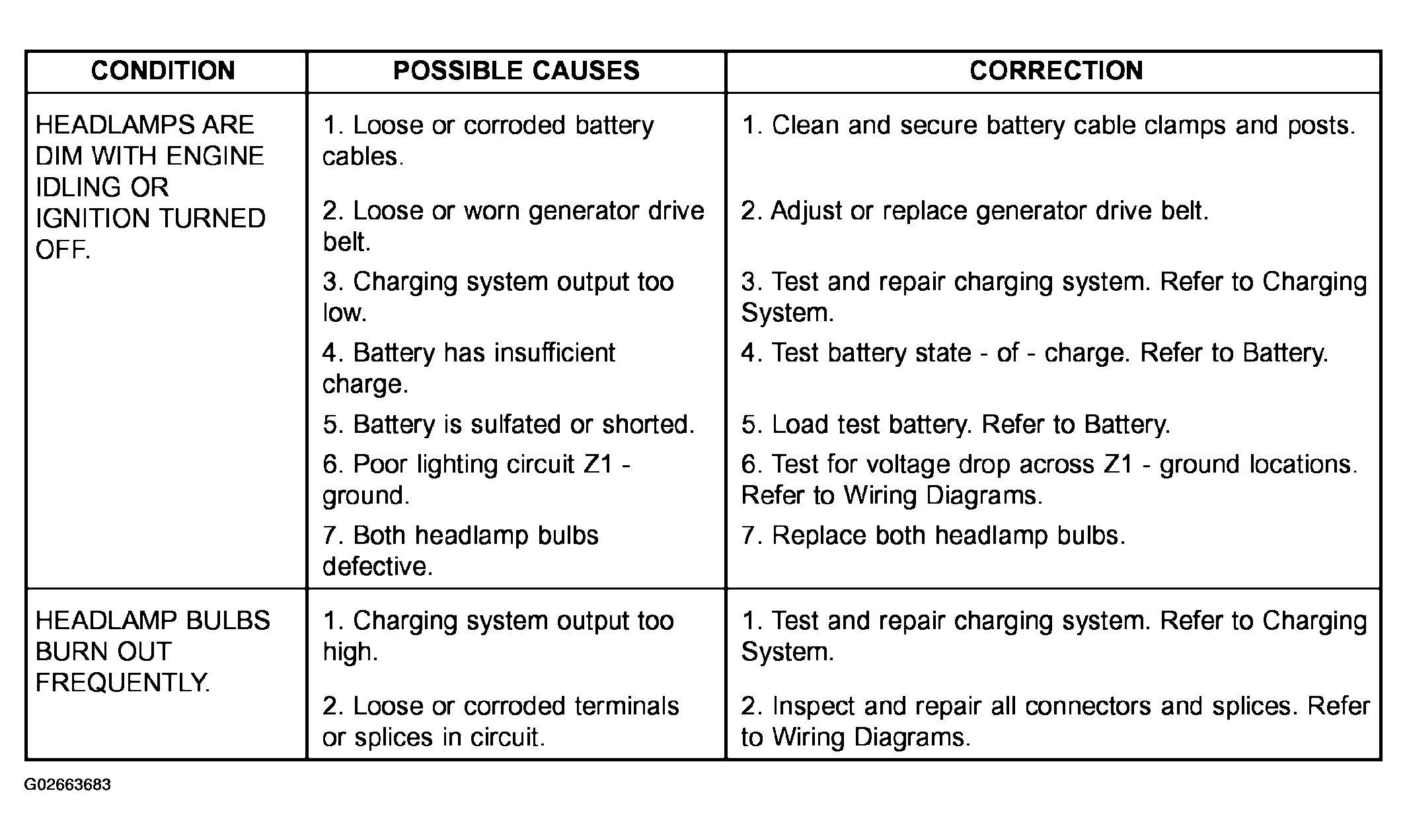

Fig 1: Headlamp Diagnosis Chart (1 Of 2)

G02663683

Courtesy of DAIMLERCHRYSLER CORP.

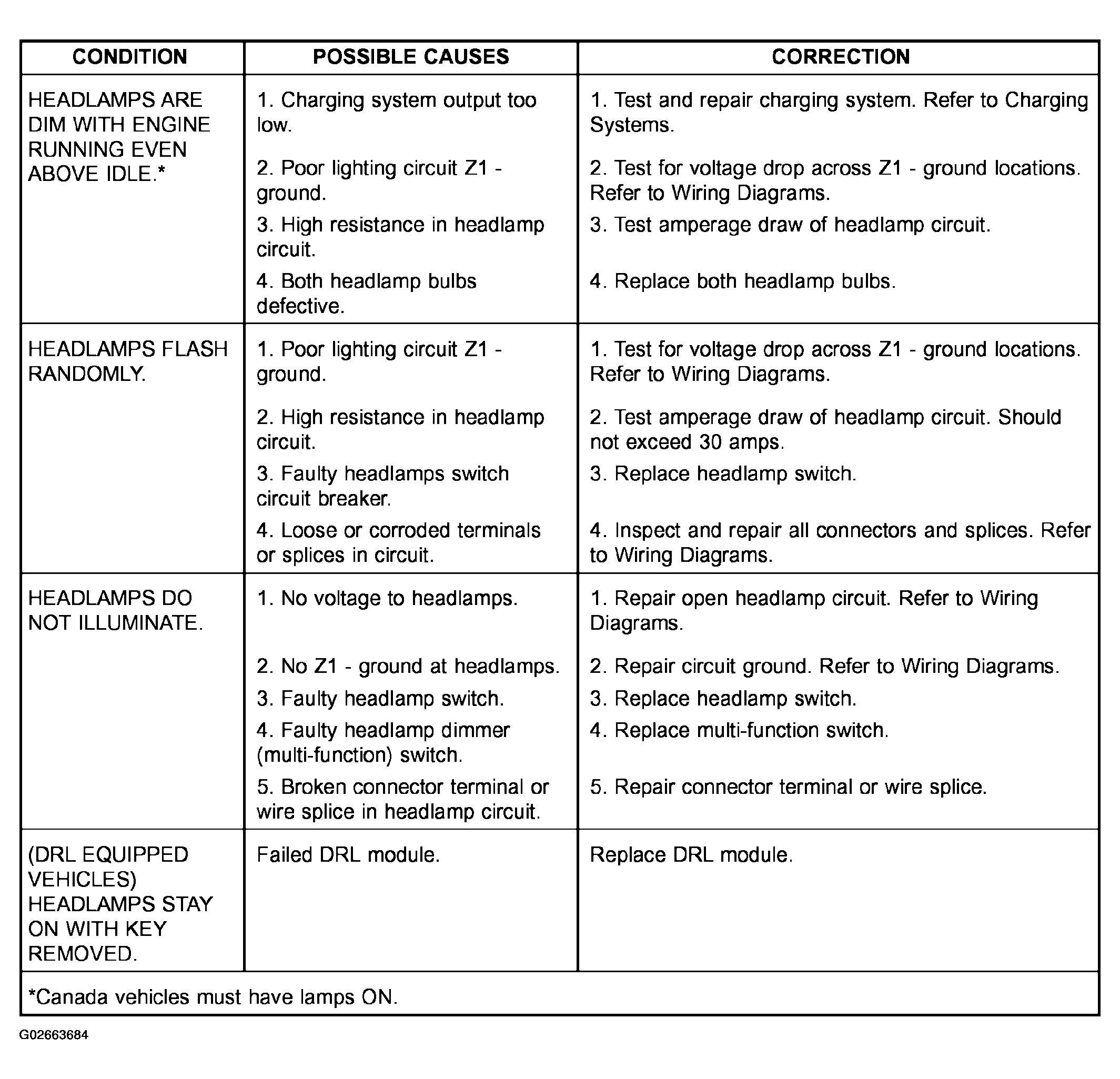

Fig 2: Headlamp Diagnosis Chart (2 Of 2)

G02663684

Courtesy of DAIMLERCHRYSLER CORP.
