Fog Lamp: Removal

  1. Reach behind the lower splash shield to gain access to the rear of the fog lamp (Fig 1 ).

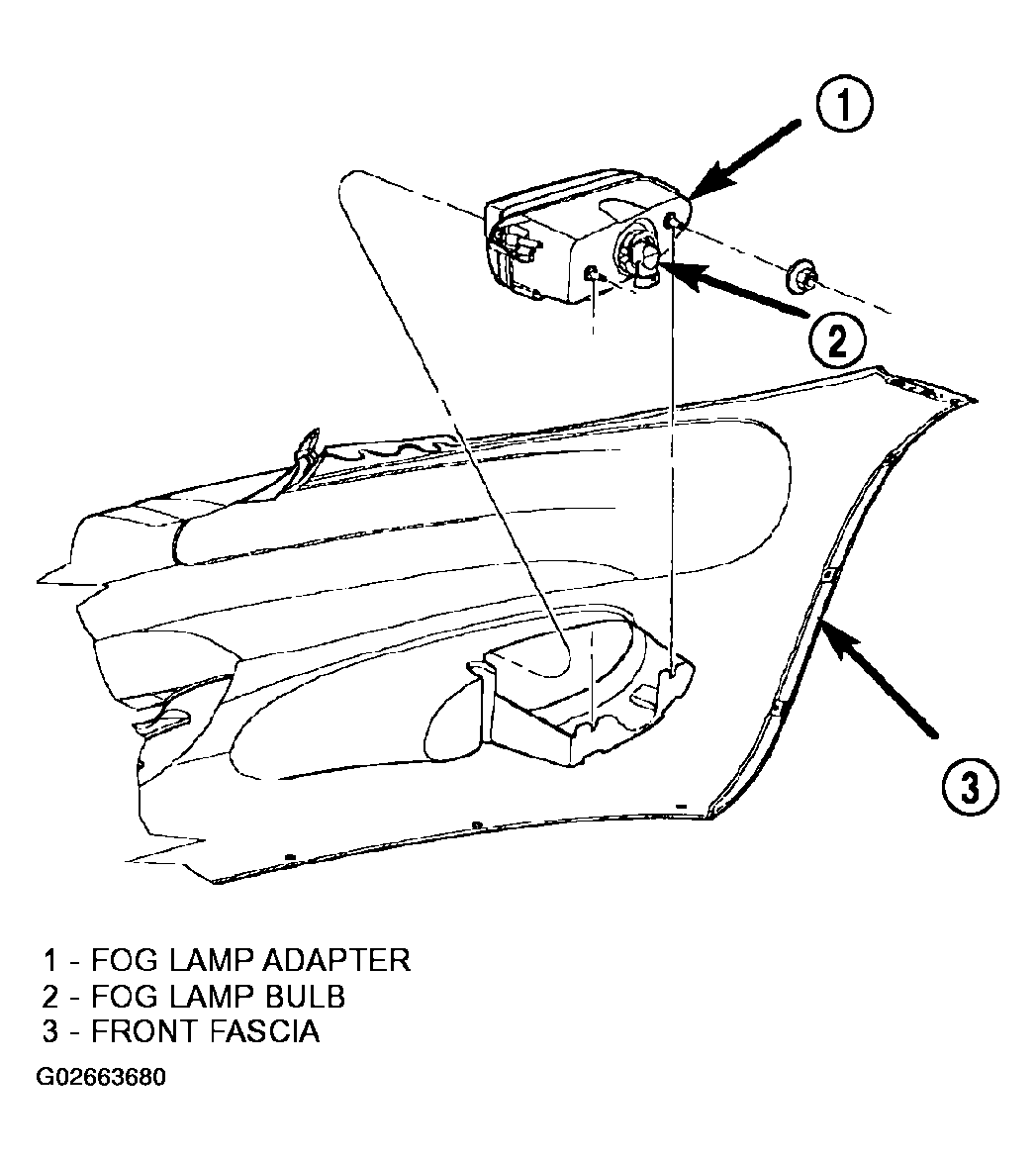

    Fig 1: Removing Fog Lamp
    G02663680Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect wire connector from fog lamp.
  3. Remove bulb from lamp.
