Fog Lamp Diagnosis

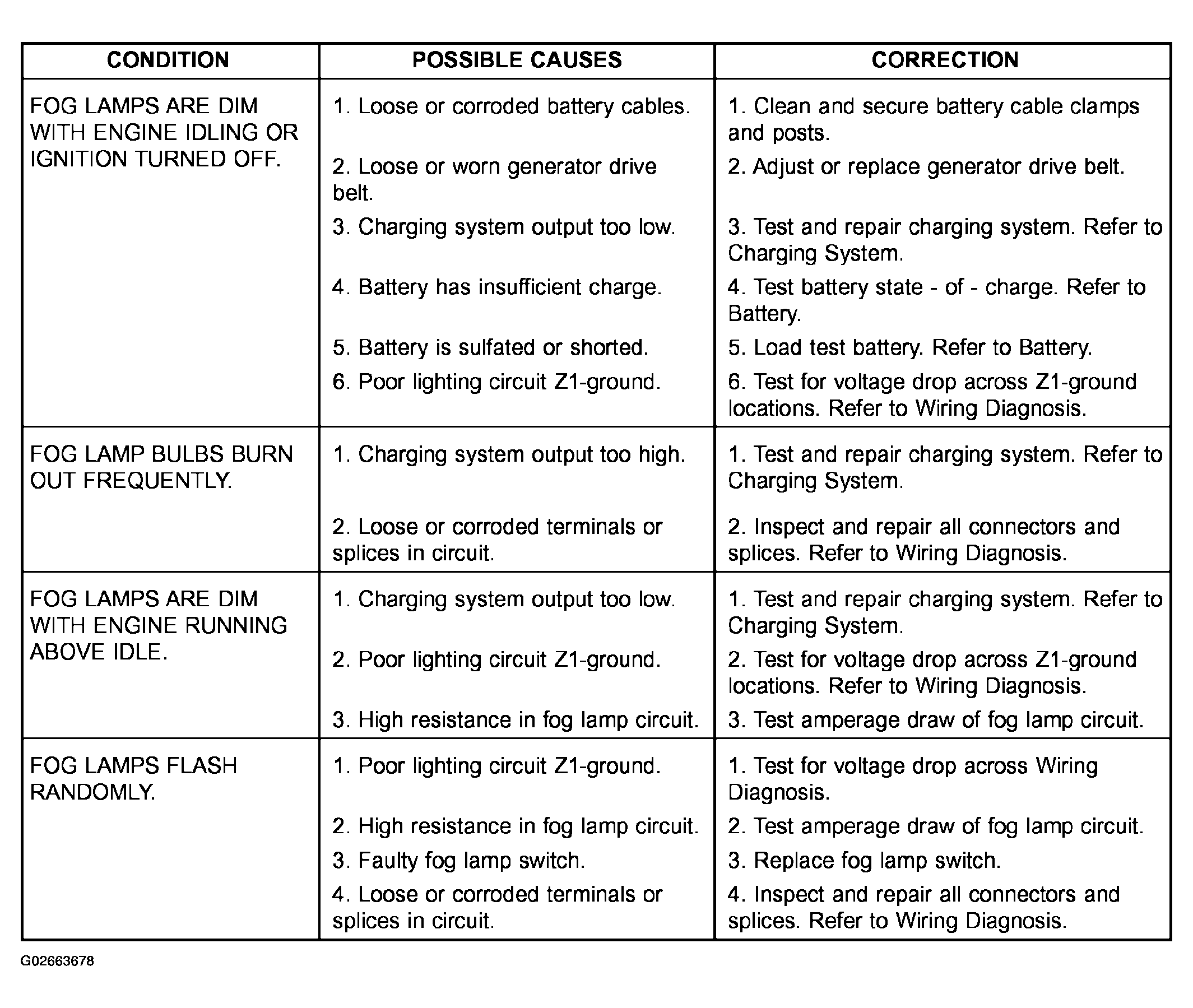

Fig 1: Fog Lamp Diagnosis Chart (1 Of 2)

G02663678

Courtesy of DAIMLERCHRYSLER CORP.

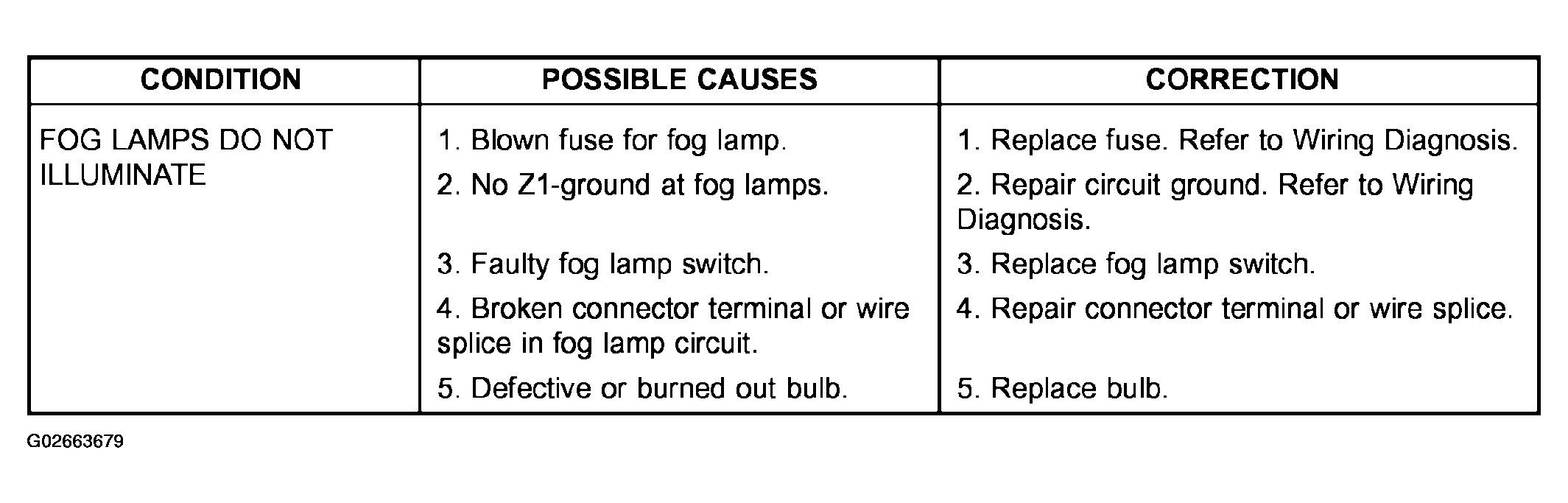

Fig 2: Fog Lamp Diagnosis Chart (2Of 2)

G02663679

Courtesy of DAIMLERCHRYSLER CORP.
