Center High Mounted Stop Lamp: Removal

  1. Open liftgate.
  2. Remove liftgate CHMSL cover (Fig 1 ).

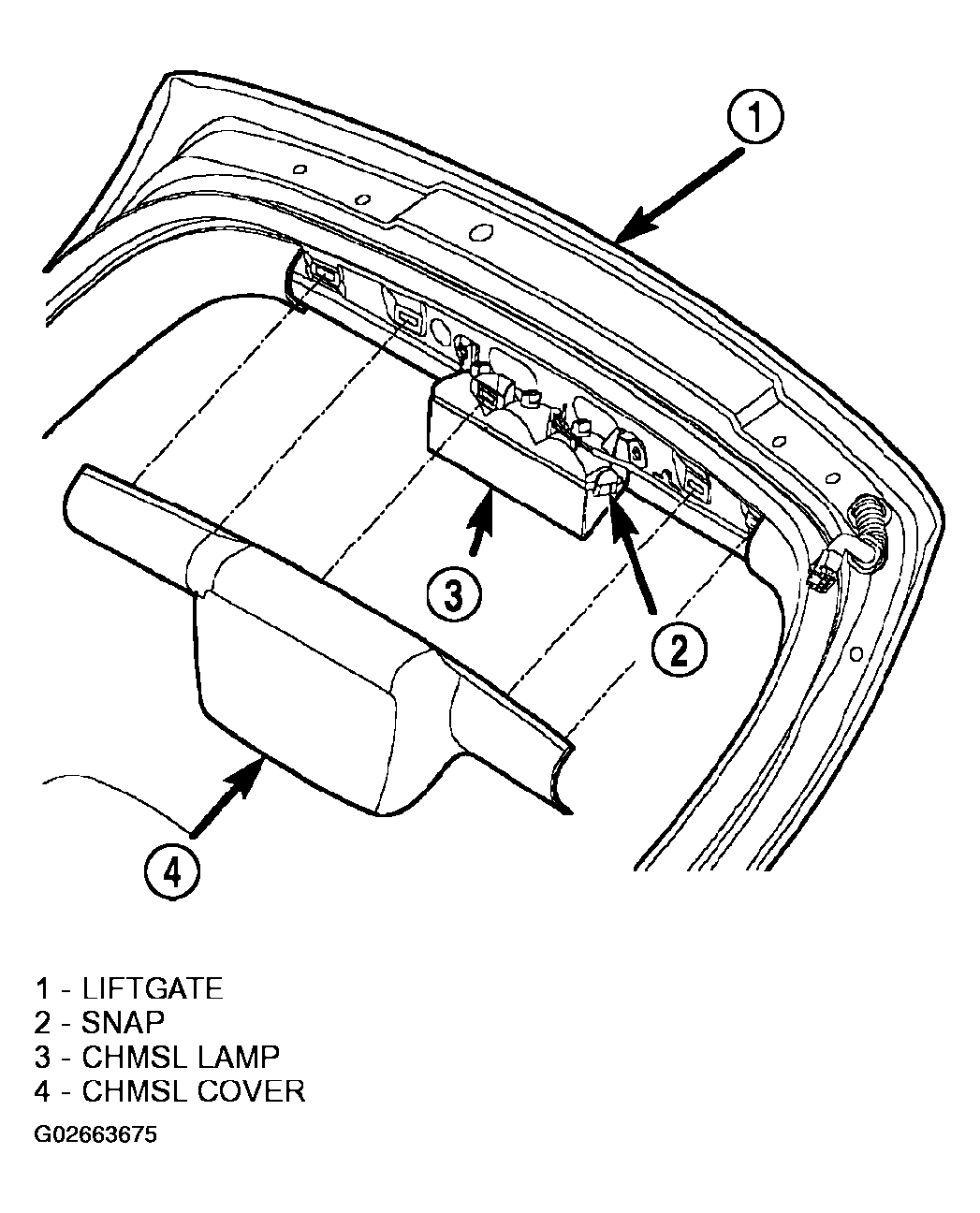

    Fig 1: Removing Center High Mounted Stop Lamp And Cover
    G02663675Courtesy of DAIMLERCHRYSLER CORP.
  3. Unsnap and remove the CHMSL lens from the lamp housing.
  4. Pull bulb(s) from the lamp housing.
