Back-Up Lamp: Removal

  1. Remove screws attaching the back-up lamp assembly to the fascia (Fig 1 ).

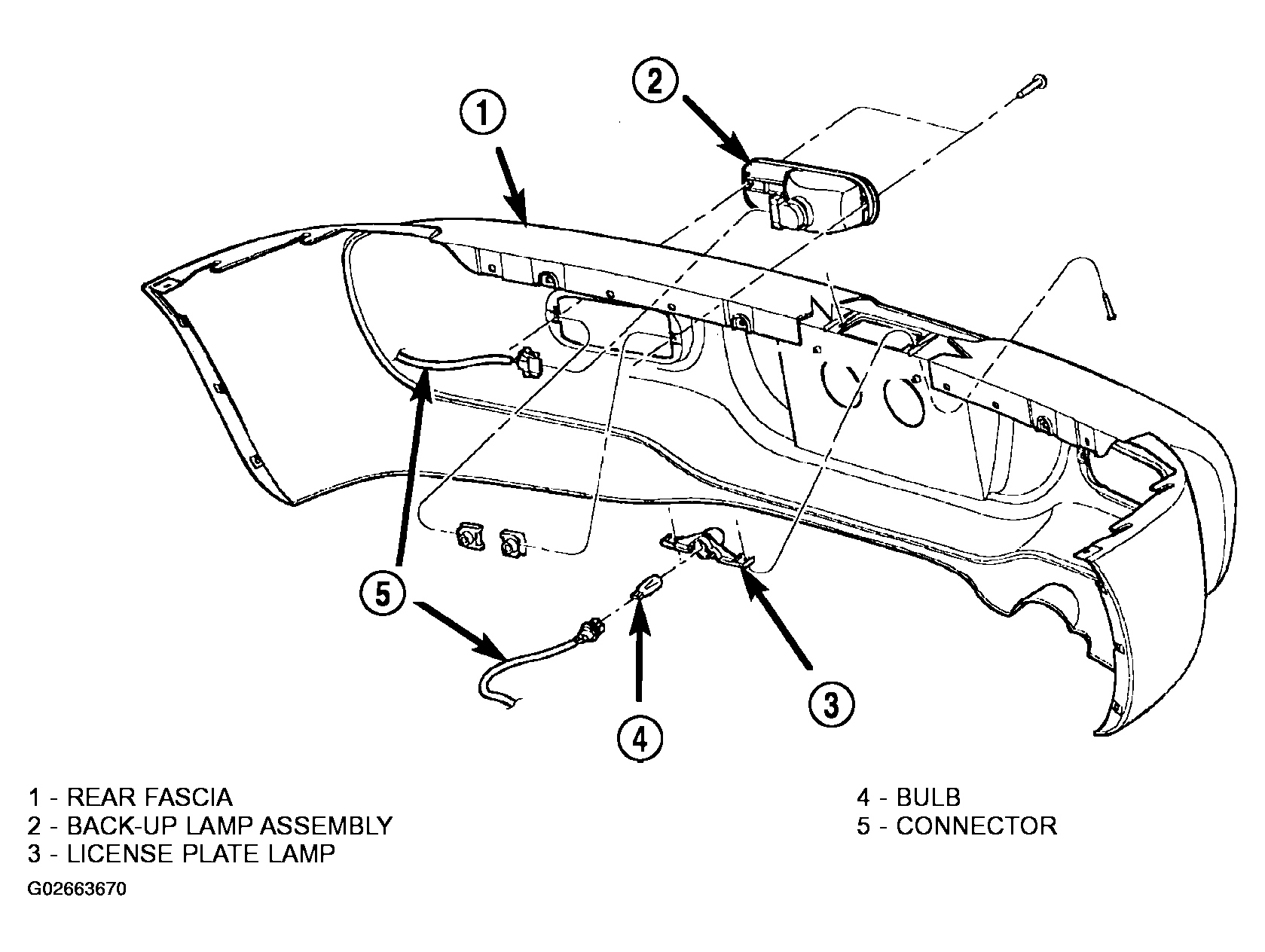

    Fig 1: Removing/Installing Back-Up Lamp
    G02663670Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove lamp assembly.
  3. Remove socket from housing.
  4. Pull bulb from socket
