Symptom: PANEL DIMMER OPEN: Testing

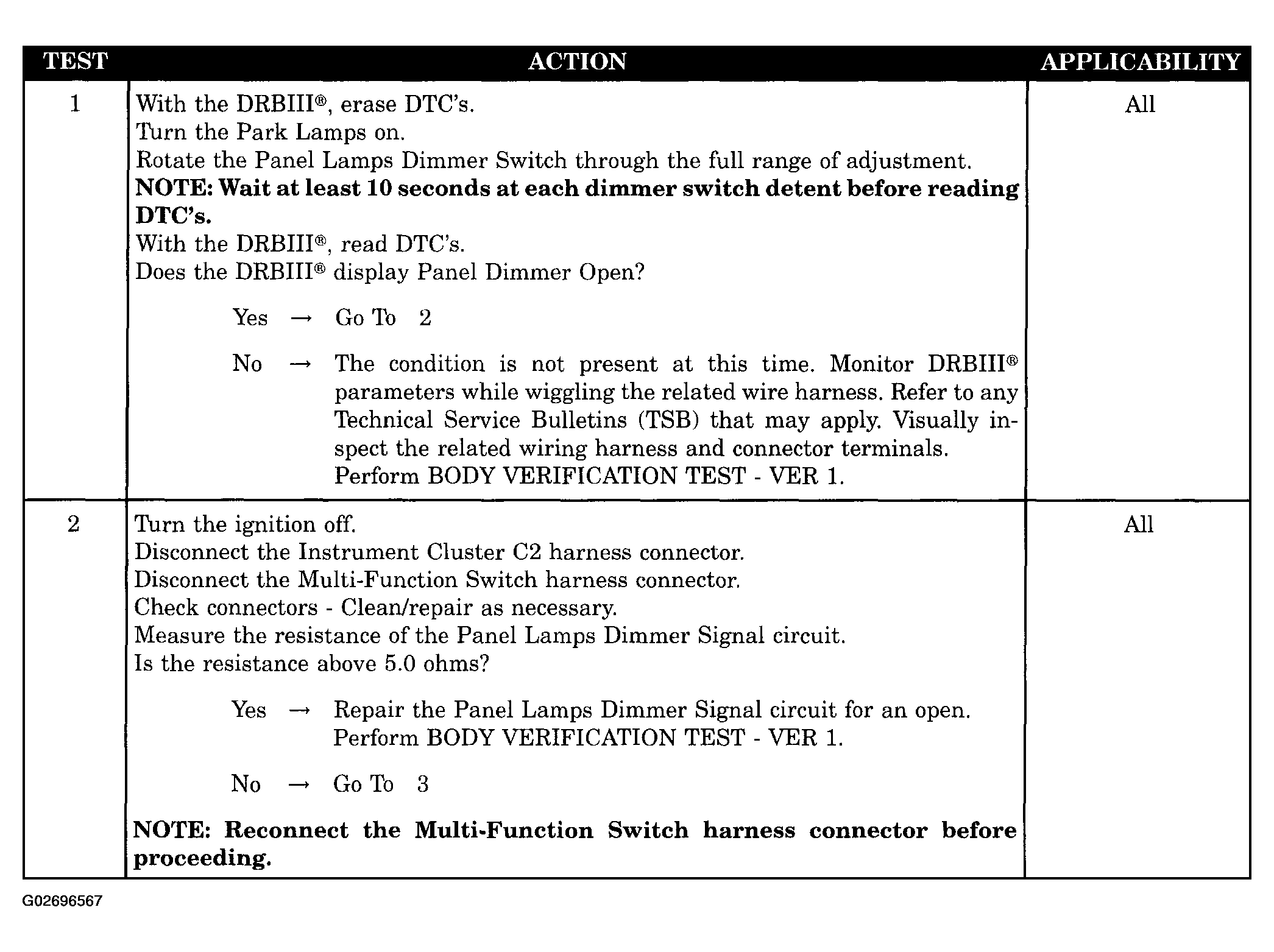

Fig 1: Testing Panel Dimmer Open (1 Of 2)

G02696567

Courtesy of DAIMLERCHRYSLER CORP.

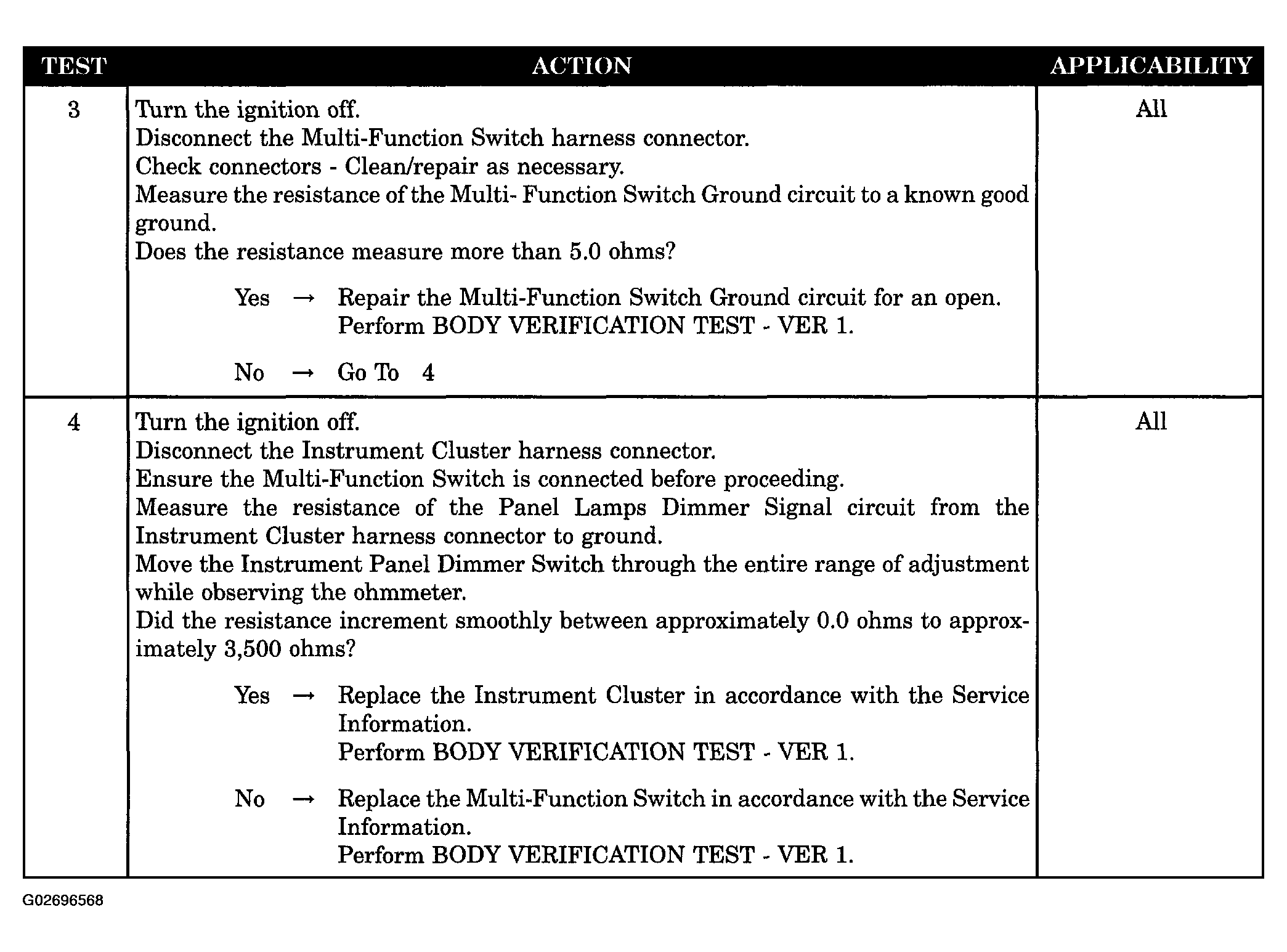

Fig 2: Testing Panel Dimmer Open (2 Of 2)

G02696568

Courtesy of DAIMLERCHRYSLER CORP.
