Symptom: *NO RESPONSE FROM PCM (SCI ONLY) - 1.6L: Testing

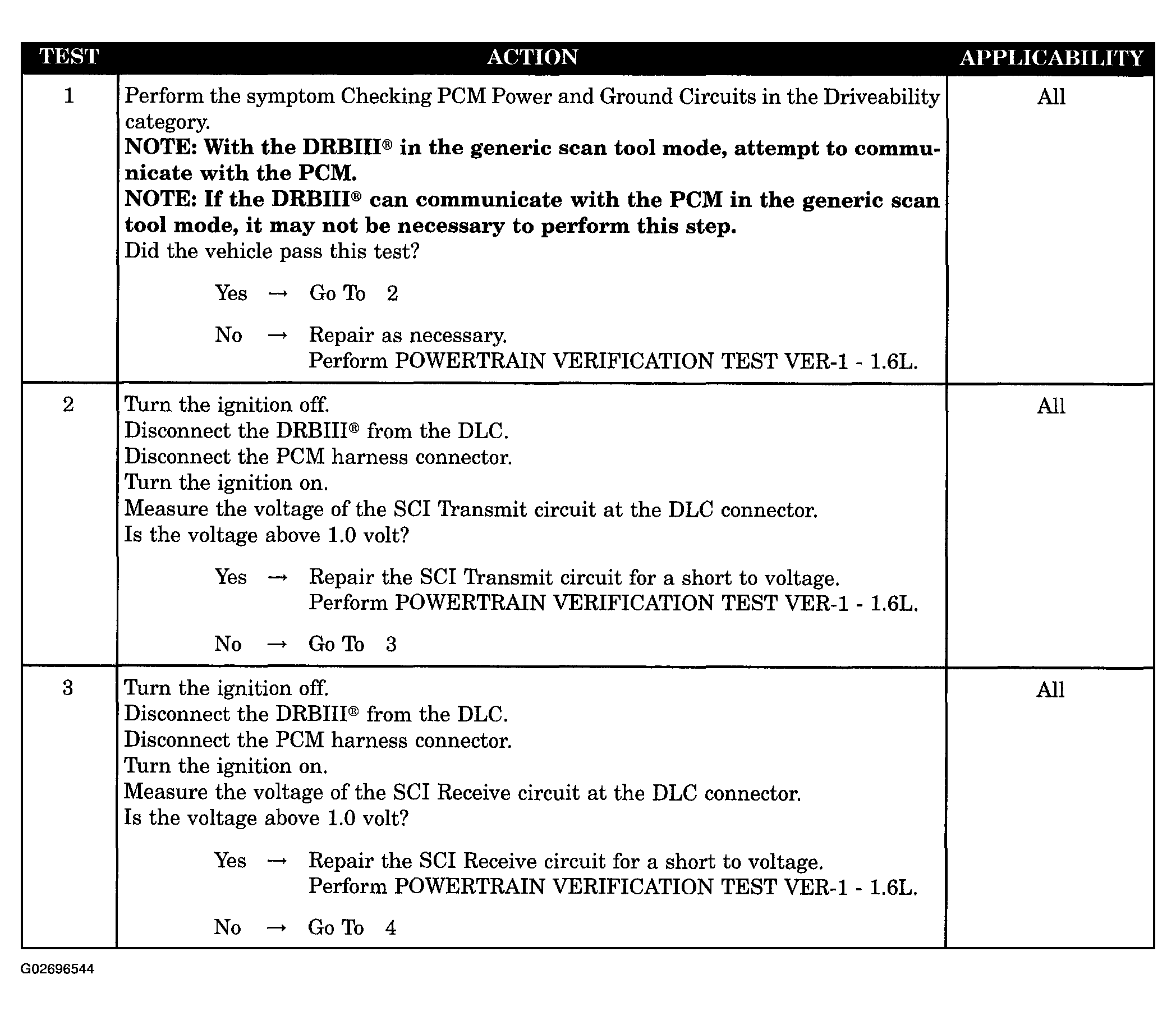

Fig 1: Testing No Response From PCM (SCI Only) - 1.6L (1 Of 2)
G02696544Courtesy of DAIMLERCHRYSLER CORP.

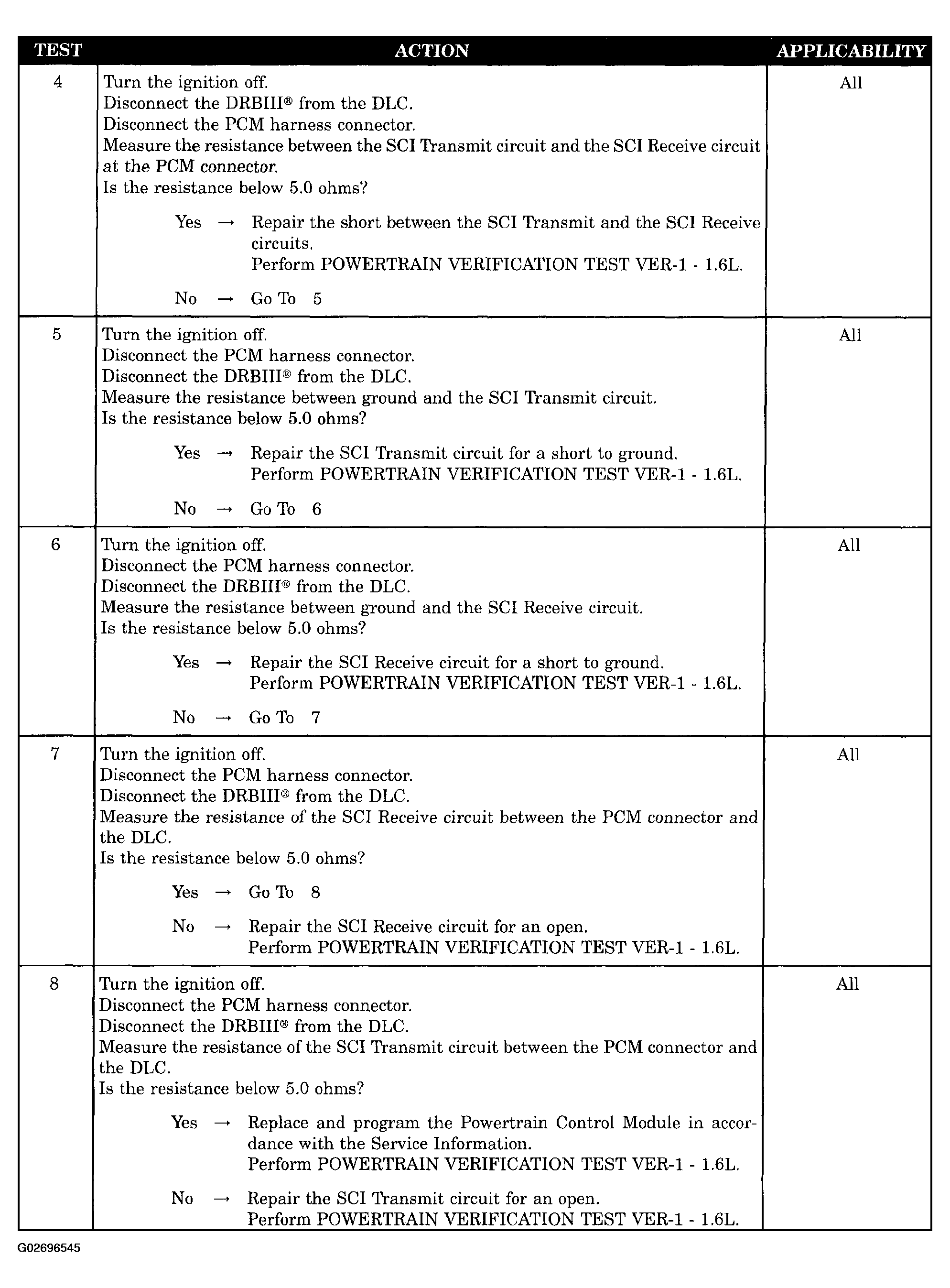

Fig 2: Testing No Response From PCM (SCI Only) - 1.6L (2 Of 2)
G02696545Courtesy of DAIMLERCHRYSLER CORP.
